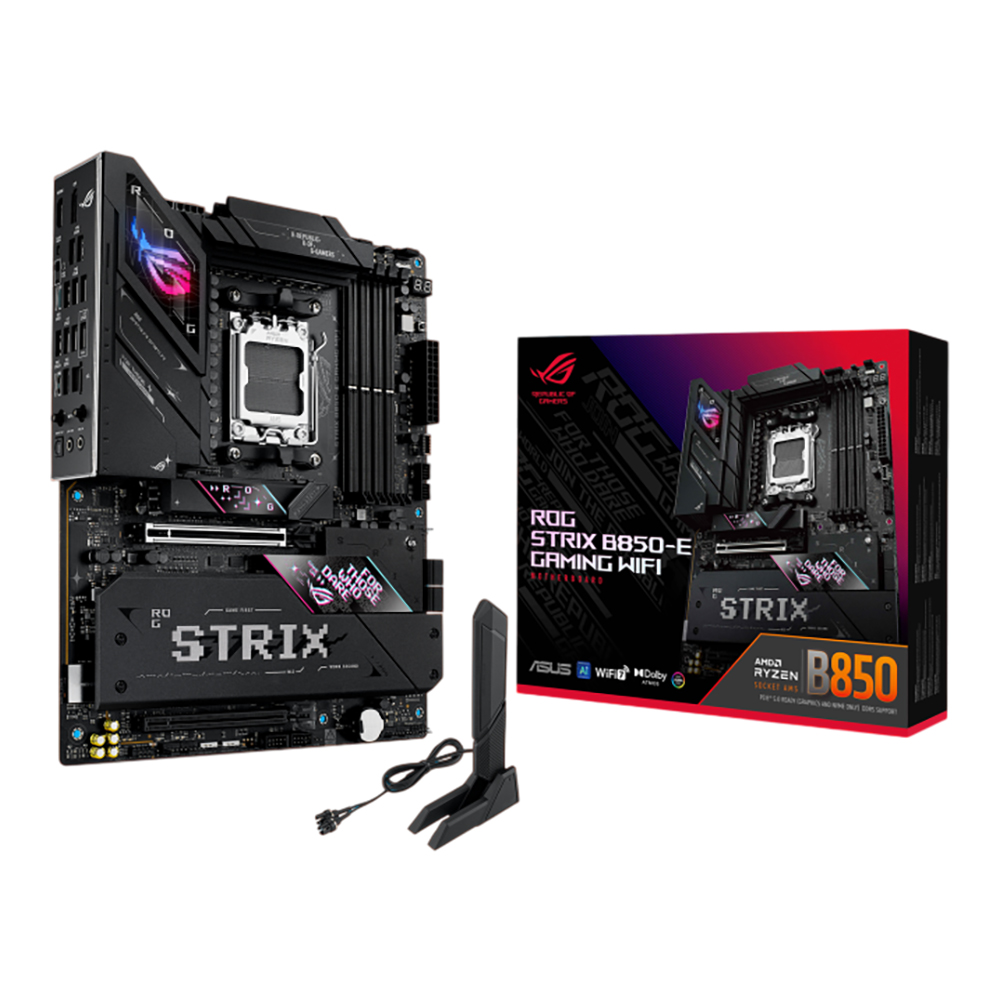

MAINBOARD (เมนบอร์ด) ASUS ROG STRIX B850-E GAMING WIFI - AMD SOCKET AM5 DDR5 ATX

MAINBOARD (เมนบอร์ด) ASUS ROG STRIX B850-E GAMING WIFI - AMD SOCKET AM5 DDR5 ATX

รายละเอียดสินค้าโดยย่อ

Asus ROG Strix B850-E Gaming WiFi ออกแบบมาเพื่อรีดประสิทธิภาพสูงสุดจากซีพียู AMD Ryzen 9000 Series มาพร้อม PCIe 5.0, AI Overclocking, AI Networking II และ AEMP ช่วยให้ปรับแต่งได้ง่ายและแรงขึ้น รองรับ USB4 Type-C, WiFi 7 และ 5Gb Ethernet เพื่อการเชื่อมต่อระดับไฮเอนด์ พร้อมฮีตซิงก์คุณภาพสูงช่วยรักษาอุณหภูมิ M.2 เหมาะทั้งงานเกมมิ่ง งานมืออาชีพ และระบบที่ต้องการพลัง AI ขั้นสูง

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
• AMD B850 Chipset
• 4 x DIMM slots, max. 256GB, DDR5
• 1 x DisplayPort
• 1 x HDMI
• 1 x USB4 40Gbps Type-C + display outputs
• 1 x PCIe 5.0 x16 slot +
• 5 x M.2 slots and 4 x SATA
• 6 x USB Type-A 10Gbps
• Realtek 5Gb Ethernet
• Wi-Fi 7
• Bluetooth v5.4

MAINBOARD (เมนบอร์ด) ASUS ROG STRIX B850-E GAMING WIFI - AMD SOCKET AM5 DDR5 ATX
(#1007000304)

รับประกัน 3 - y
ราคา
บาท
11,800
ราคาล่าสุดเมื่อ 2026-05-27
ส่งฟรี

ระบุข้อมูลใส่ช่องว่างเพื่อแจ้งเตือนเมื่อมีสินค้าเข้ามา

จำนวนที่ต้องการ

ชิ้น

คุณสมบัติ
model
Brand
Asus
Model
ROG STRIX B850-E GAMING WIFI
CPU
Socket
AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge)
Wattage
170W
Chipset
AMD B850
Series
Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
memory
Slot
4
Memory Type
DDR5
Max. Capacity
256 GB
Speed
4800 , 5200 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC)
Graphic & Audio
Graphic
- 1 x DisplayPort*
- 1 x HDMI port**
- 1 x USB4 (40Gbps) port supports USB Type-C display outputs***

- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
* Supports max. 8K@30Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
*** Supports max. 4K@60Hz from ASMedia ASM4241 controller as specified in DisplayPort 1.4a
***** VGA resolution support depends on processors' or graphic cards' resolution.
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
Audio Features
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
AMD RAIDXpert2 Technology for NVMe M.2 Device only
- Ryzen 9000 Series Processors: RAID 0/1/5/10
- Ryzen 8000 Series Processors: RAID 0/1
- Ryzen 7000 Series Processors: RAID 0/1/10
M.2
5 x M.2 slots

AMD Ryzen 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*
- M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*

AMD Ryzen 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**
- M.2_3 slot (Key M), type 2280 (Not supports)***

AMD B850 Chipset
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
- M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

* When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.
** M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen 8000 Series Desktop Processors.
*** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. Port
expansion slots
Details
AMD Ryzen 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)**
AMD Ryzen 8000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)***

AMD B850 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)****

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8.
*** Specifications vary by CPU types.
**** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Slot
1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot
network
LAN
Realtek 5Gb Ethernet
LAN Speed
100 / 1000 / 2500 / 5000 Mbps
Wireless
Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
- Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
- For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
- For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Back Panel I/O Ports
USB 2.0
4 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
1 x USB4 (40Gbps) (1 x USB Type-C)
1 x USB 20Gbps (supports USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 10Gbps (6 x Type-A) Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
1 Port
DisplayPort
1 Port
Audio
2 x Audio Jacks
1 x Optical S/PDIF Out Port
PS/2
No
Additional
1 x Wi-Fi module
1 x BIOS FlashBack button
1 x Clear CMOS button
LAN
1 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 8 + 8 Pin
Dimension
30.5 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

ขออภัย ไม่มีรายละเอียดหรือข้อมูลในส่วนนี้ค่ะ
