Detail

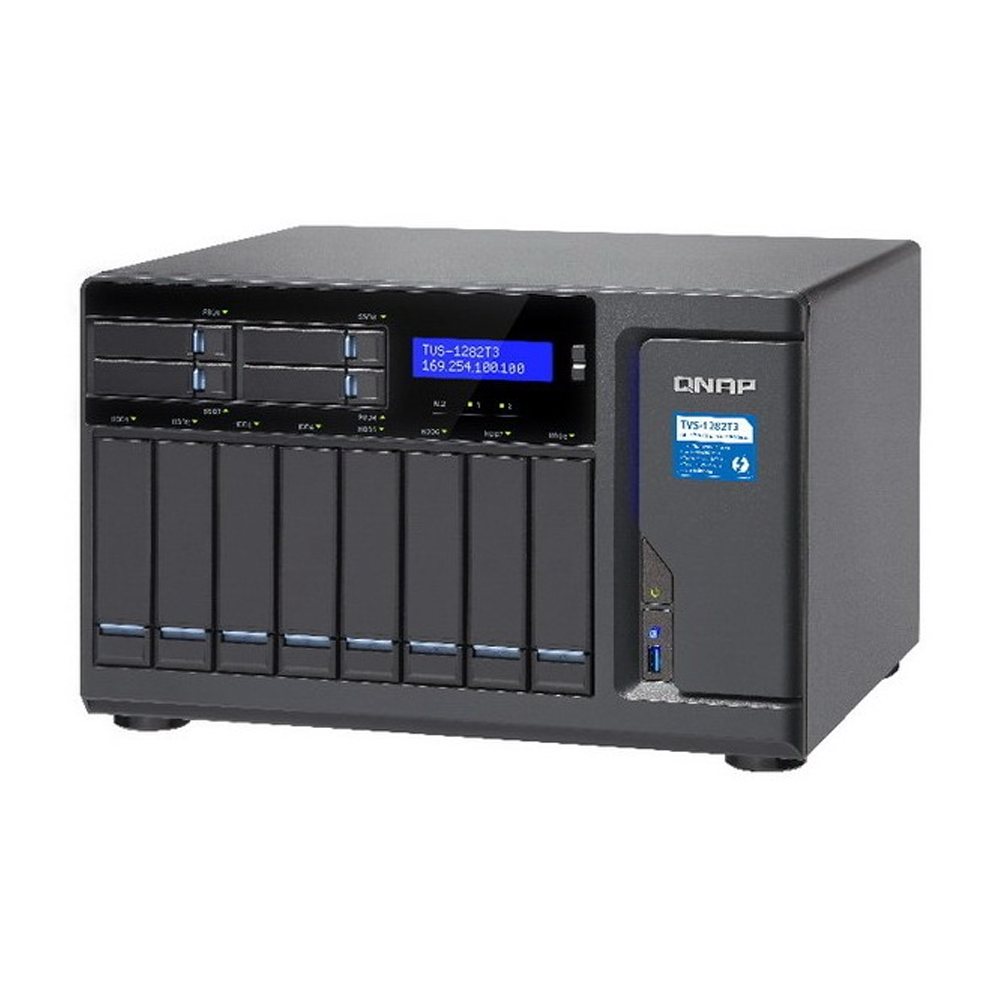

Ordering P/N: TVS-1282T3-i5-16G
CPU: TVS-1282T3-i5-16G: Intel® Core™ i5-7500 3.4 GHz quad-core processor
System memory: TVS-1282T3-i5-16G：
Total DIMM slots: 4
System memory: 16 GB DDR4 RAM
Memory modules pre-installed: 8 GB x2
Maximum memory: 64 GB (16 GB x4)
Flash Memory: 512MB DOM
M.2 Slot: 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD

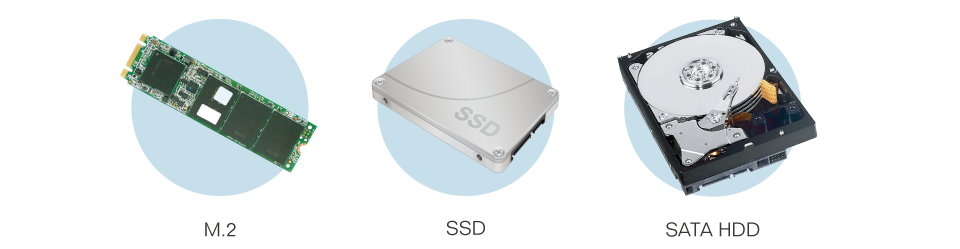

Hard Drive Tray: 4 x 2.5" SSD, 8 x 2.5"/3.5" hard drive or SSD
Drive Interface: SATA 6Gbps/3Gbps; Hot-swappable

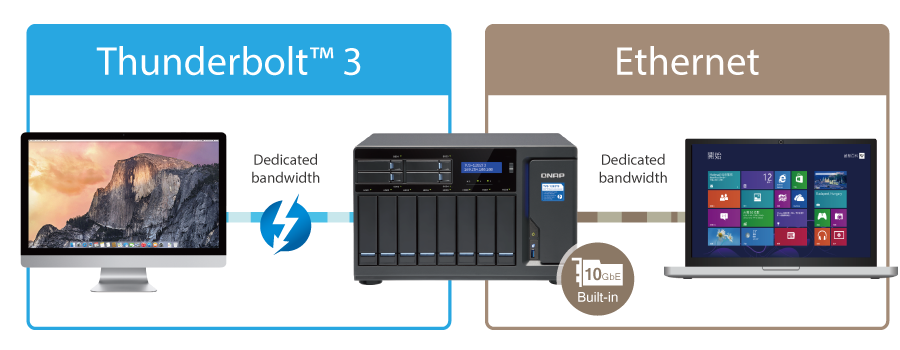

Thunderbolt Port: 4 x Thunderbolt™ 3 high-speed port
USB: 1 x USB 3.0 port (Front), 4 x USB 3.0 port (Rear)
LAN Port: 2 x 10GBase-T port, 4 x GbE port
HDMI Output: 3
Audio Input: Audio In: 2 x 6.3mm MIC In
Audio Output: 2 x built-in speaker, 1 x 3.5mm Line-out jack
LED Indicators: System status, 2.5" SSD, M.2 SSD, 3.5" HDD
Buttons: System: Power button, Reset button, USB one-touch-backup button
System Warning: Buzzer
Form Factor: Tower
Dimensions: 234.6 x 369.9 x 319.8 mm, 9.23 x 14.56 x 12.59 inch
Weight: Net (NAS only): 11.55kg/ 25.46 lb, Gross (with packing and accessories): 13.65 kg/ 30.09 lb
Sound Level (dB)*: Sound pressure (LpAm) (bystander position): 21.6 dB
(with 8 x Seagate ST2000VN000-1HJ164 hard drive installed)
Temperature: 0-40˚C
Relative Humidity: 5~95% non-condensing, wet bulb: 27˚C
Power Supply: Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W
PCIe Slot: 3 (1* PCIe Gen3 x8; 2* PCIe Gen3 x4)
Fan: System: 3 x 8 cm cooling fan, CPU: 2 x 9 cm fan
