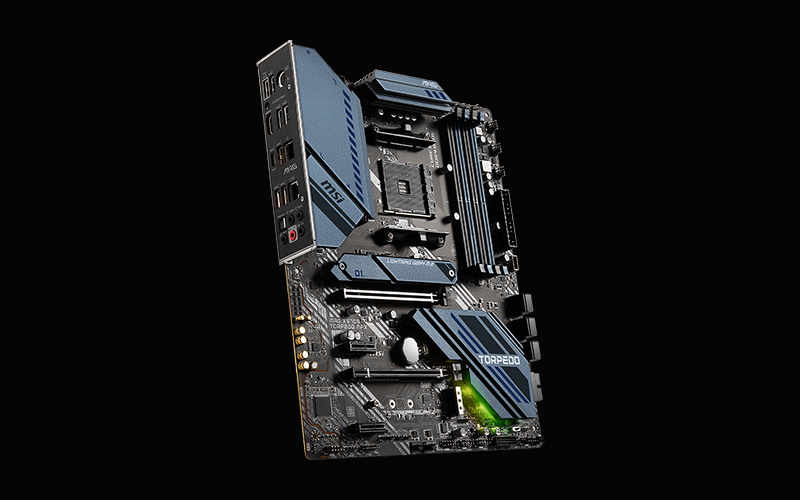

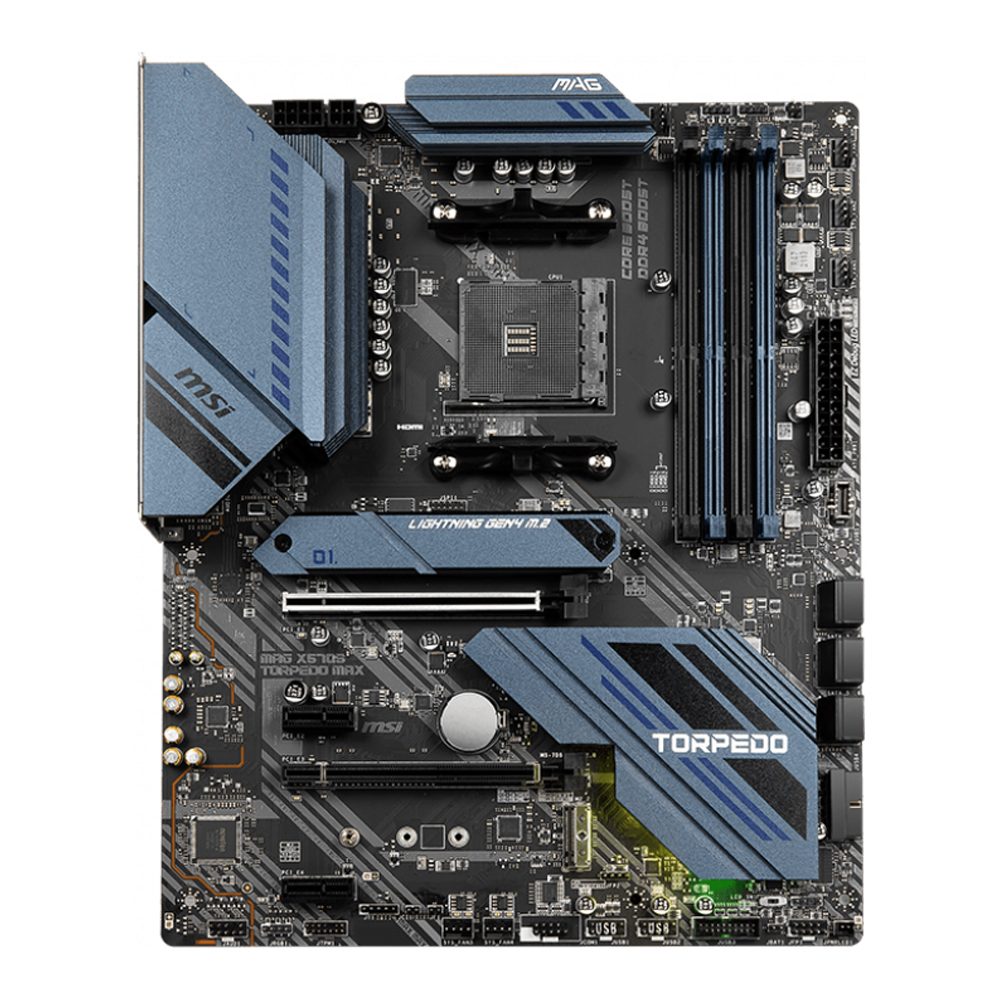

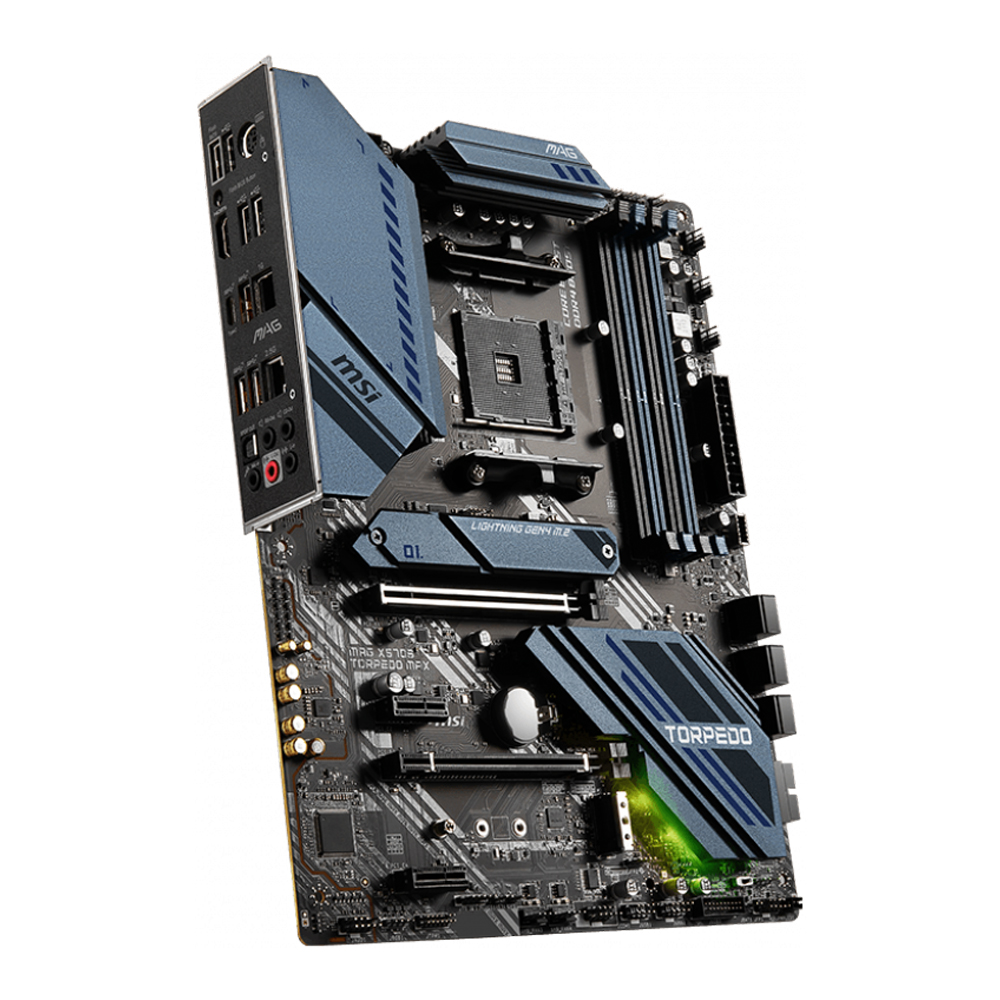

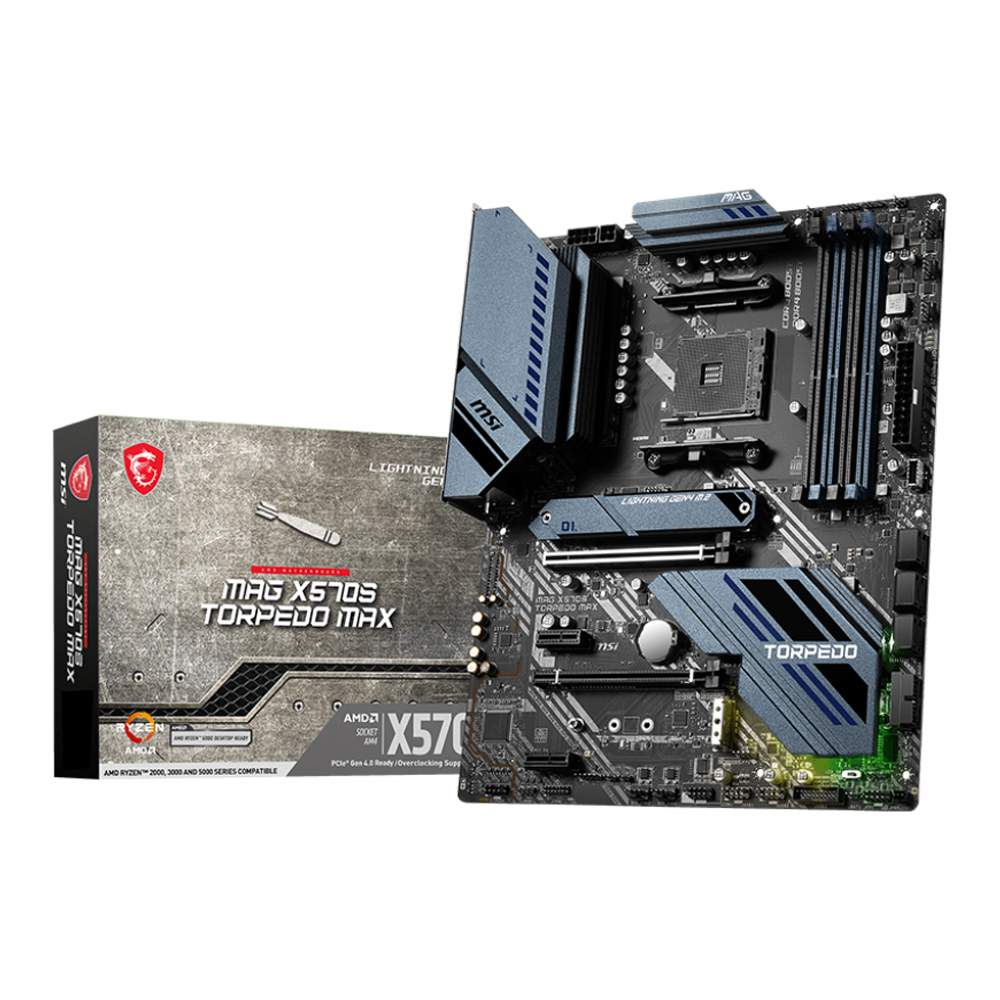

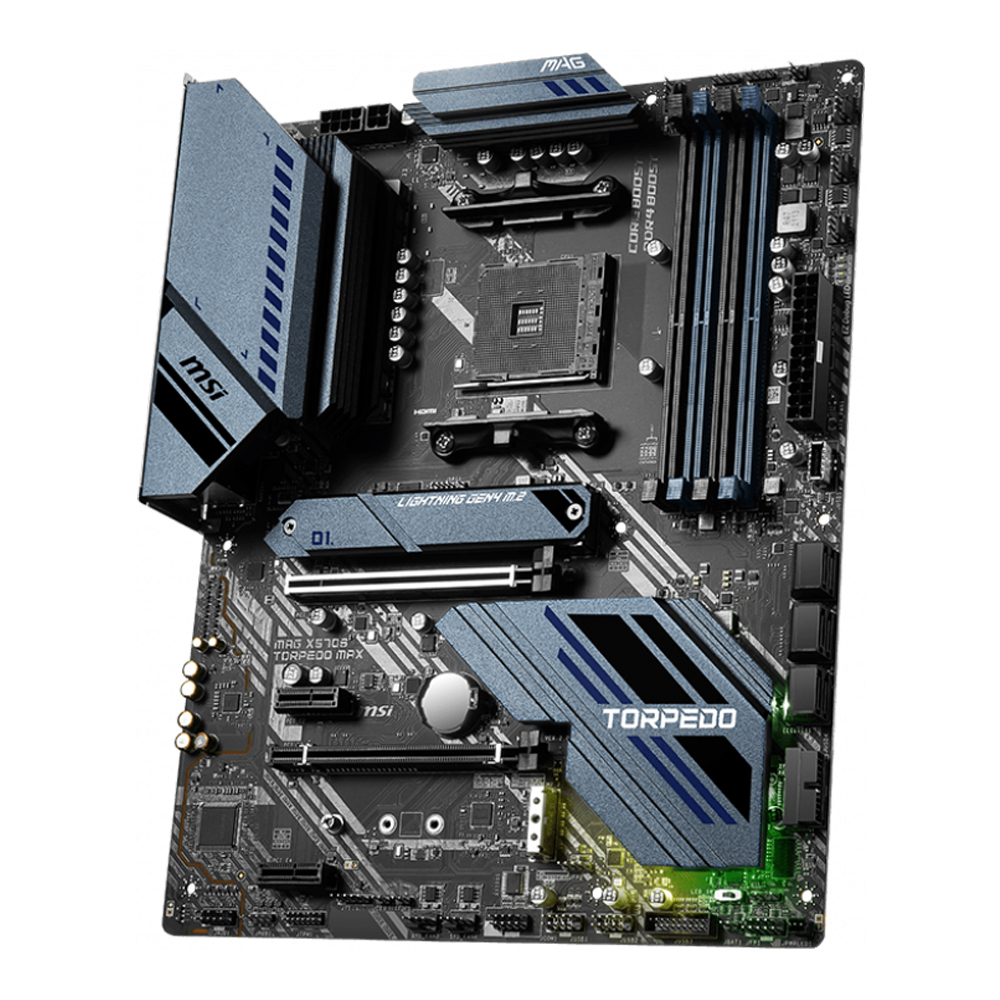

MAINBOARD (เมนบอร์ด) AM4 MSI MAG X570S TORPEDO MAX

MAINBOARD (เมนบอร์ด) AM4 MSI MAG X570S TORPEDO MAX

รายละเอียดสินค้าโดยย่อ

• AMD AM4
• AMD X570
• 4 x DDR4 DIMM
• ATX

MAINBOARD (เมนบอร์ด) AM4 MSI MAG X570S TORPEDO MAX
(#0201038318)

รับประกัน 3 - y
ราคา
บาท
7,690
ราคาล่าสุดเมื่อ 2022-11-03
ส่งฟรี
คุณสมบัติ
model
Brand
MSI
Model
MAG X570S TORPEDO MAX
CPU
Socket
AM4 (2000 Series - Pinnacle Ridge) , AM4 (2000 Series >65W - Pinnacle Ridge) , AM4 (3000 G-Series - Picasso) , AM4 (3000 Series - Matisse) , AM4 (4000 G-Series - Renoir) , AM4 (4000 Series - Renoir) , AM4 (5000 G-Series - Cezanne) , AM4 (5000 Series - Vermeer / Cezanne)
Wattage
105W
Chipset
AMD X570
Series
Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
memory
Slot
4
Memory Type
DDR4
Max. Capacity
128 GB
Speed
1866 , 2133 , 2400 , 2666 , 2800 , 2800 (OC) , 2933 , 2933 (OC) , 3000 , 3000 (OC) , 3066 , 3066(OC) , 3200 , 3200 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3866 (OC) , 4000 (OC) , 4133 (OC) , 4266 (OC) , 4400 (OC) , 4533 (OC) , 4600 (OC) , 4733 (OC) , 4866 (O.C.) , 5000 (OC) , 5100 (OC)
Graphic & Audio
Graphic
Integrated Graphics Processor (Depends on CPU)
Audio
Realtek ALC4080
7.1-Channel High Definition Audio
Storage
SATA 2
- Port
SATA 3
6 Port
RAID
0, 1, 10
M.2
• 2 x M.2 slots (Key M)
Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors
Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
Supports up to SATA 6Gb/s
—
○ M2_1 slot (from Processor)
Support 2280/22110 storage devices
—
○ M2_2 slot (from AMD X570 Chipset)
Supports 2242/ 2260/ 2280 storage devices Port
expansion slots
Details
Supports AMD CrossFire™ Technology
Slot
2 x PCIe 3.0 x1 Slots , 2 x PCIe 4.0 x16 Slot
network
LAN
1 x Realtek 8125B 2.5Gbps
1 x Realtek RTL8111H 1Gbps
LAN Speed
1 x 100/1000/2500
1 x 10/100/1000 Mbps
Wireless
No

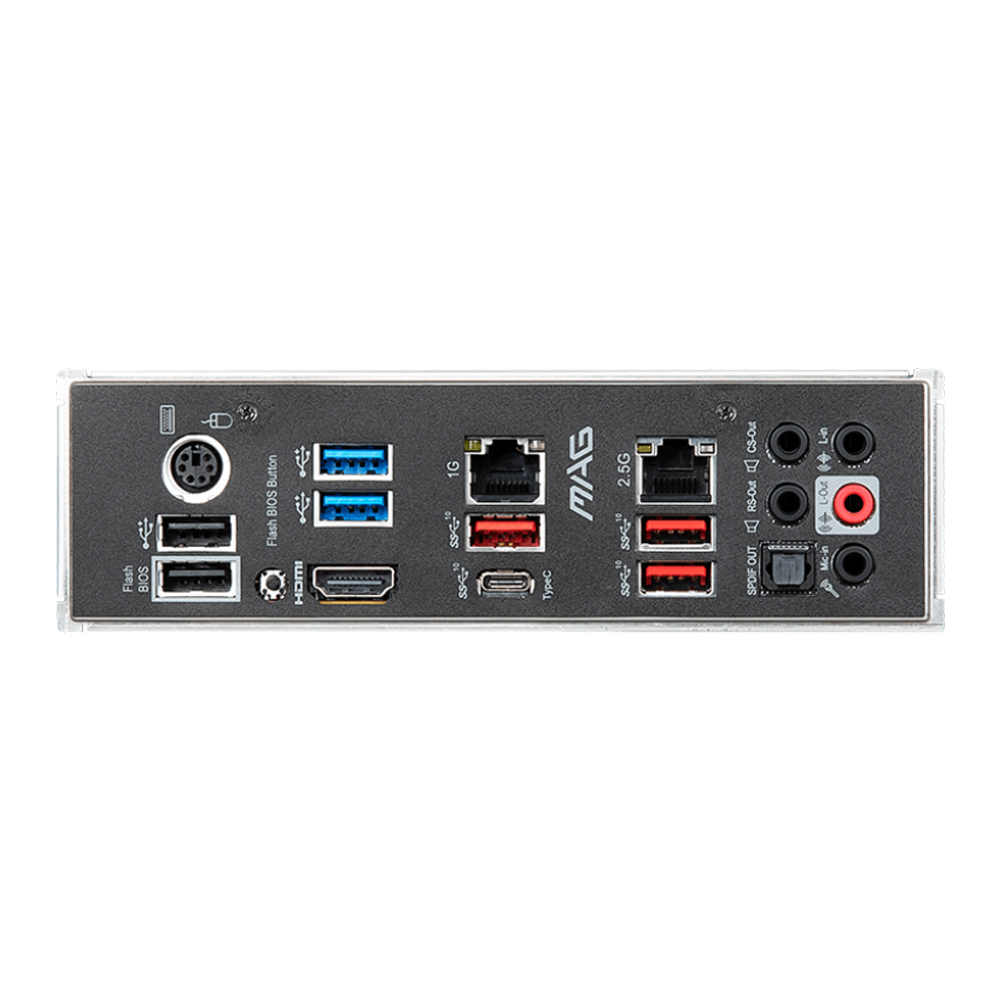

Back Panel I/O Ports
USB 2.0
2 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
2 x USB 3.2 Gen 1 Type-A
3 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
1 Port
DisplayPort
- Port
Audio
5 x Audio jack
1 x Optical S/PDIF Out Port
PS/2
1 (Keyboard/Mouse combo) Port
Additional
No
LAN
2 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 8 Pin
Dimension
30.5 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

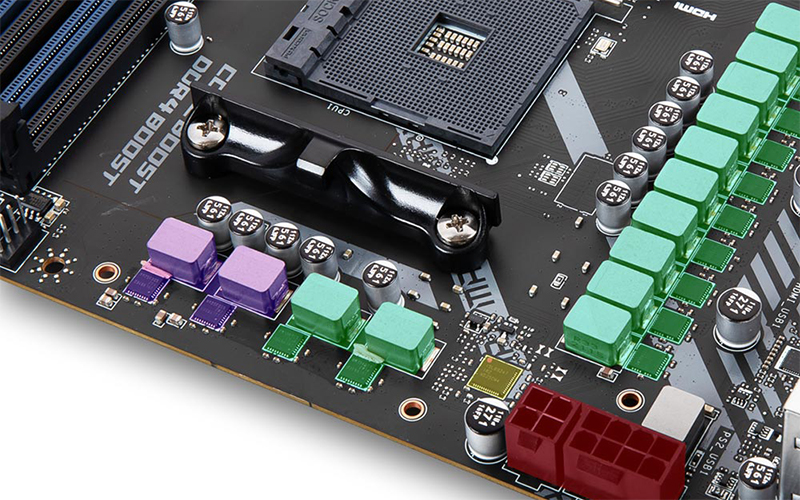

12 + 2 MIRRORED POWER ARRANGEMENT
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 4-pin power connectors and exclusive Mirrored Power Arrangement, MAG series motherboard is ready to sustain heavy gaming loadings.

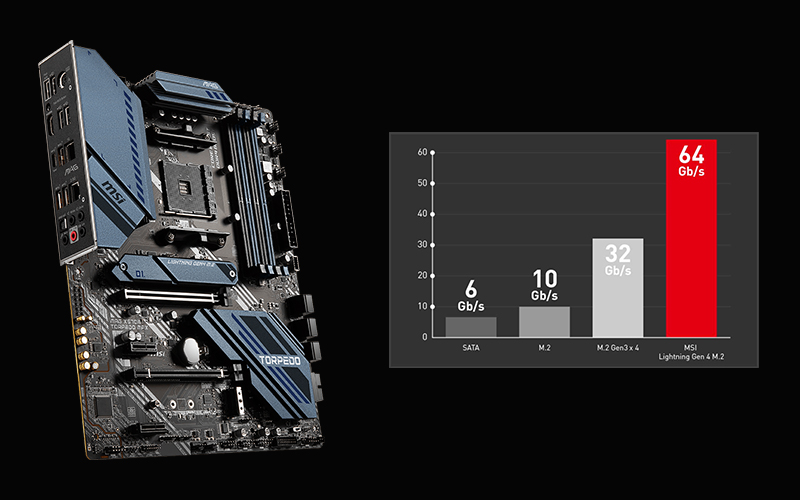

LIGHTNING GEN 4 M.2
Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

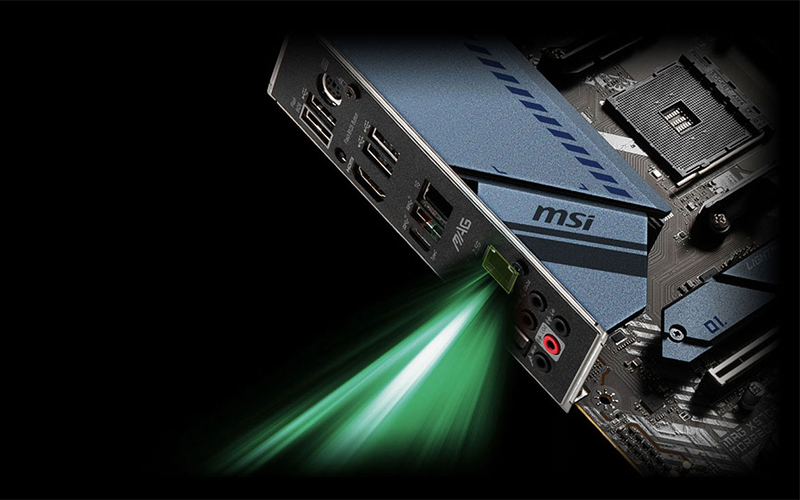

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MAG X570S TORPEDO MAX features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

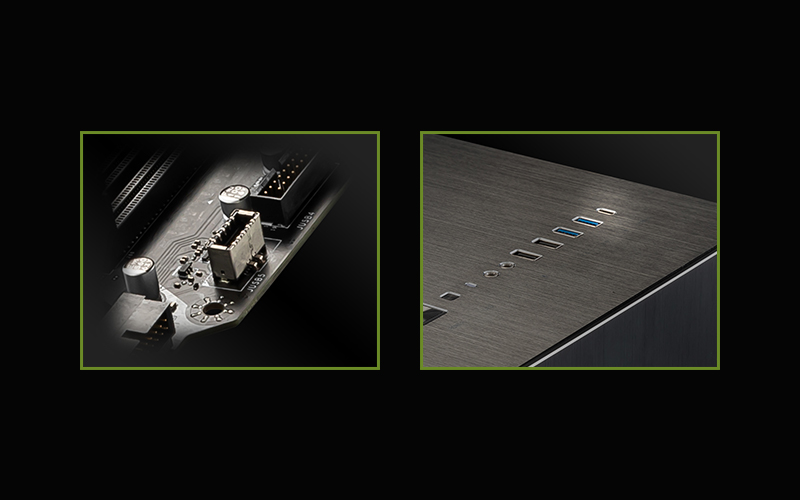

USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.







TRUE COLOR MYSTIC LIGHT ON MOTHERBOARD
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and 29 LED effects.



Source : MSI MAG X570S TORPEDO MAX
