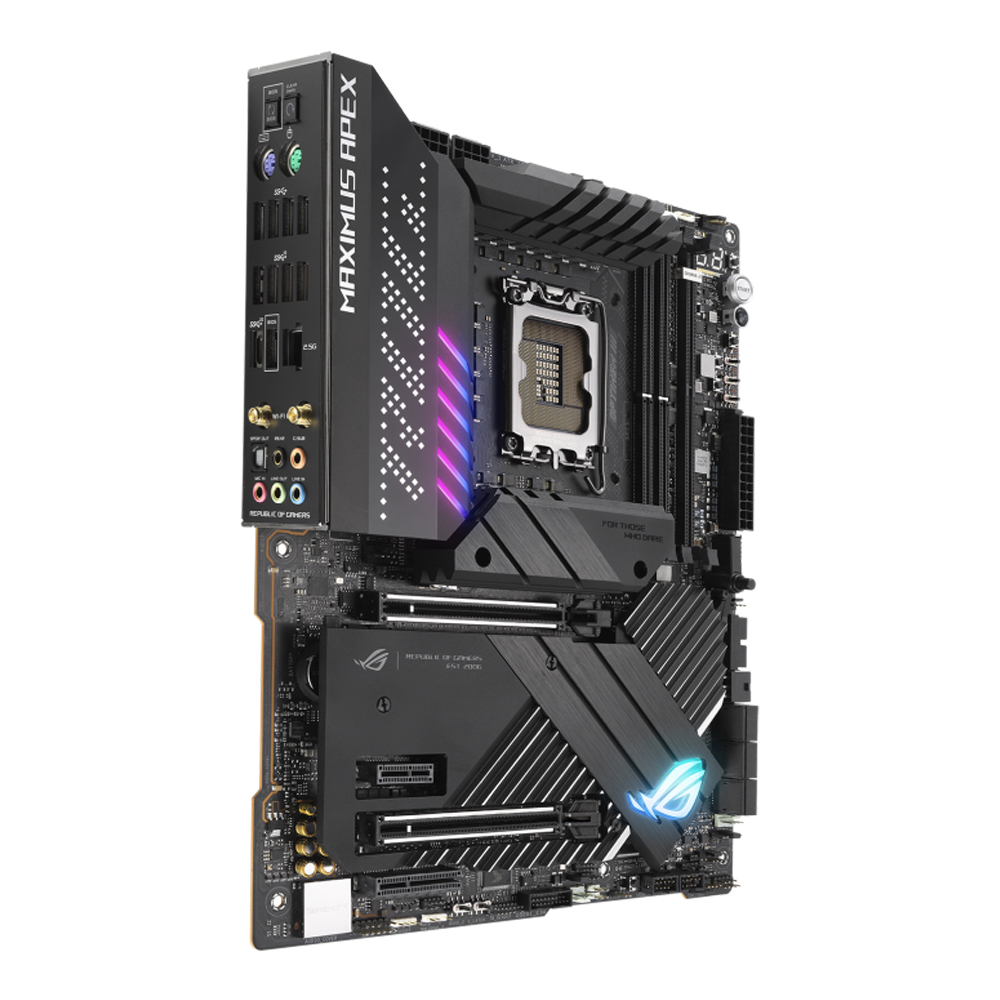

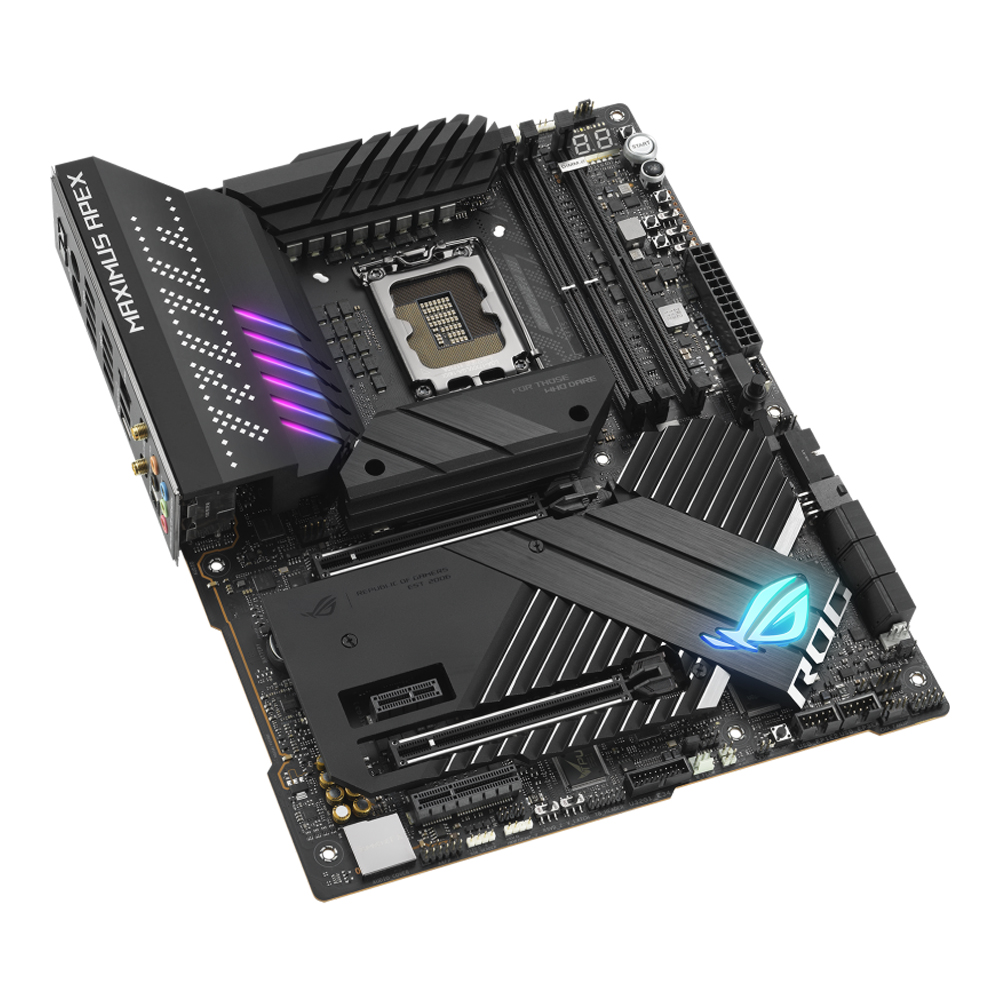

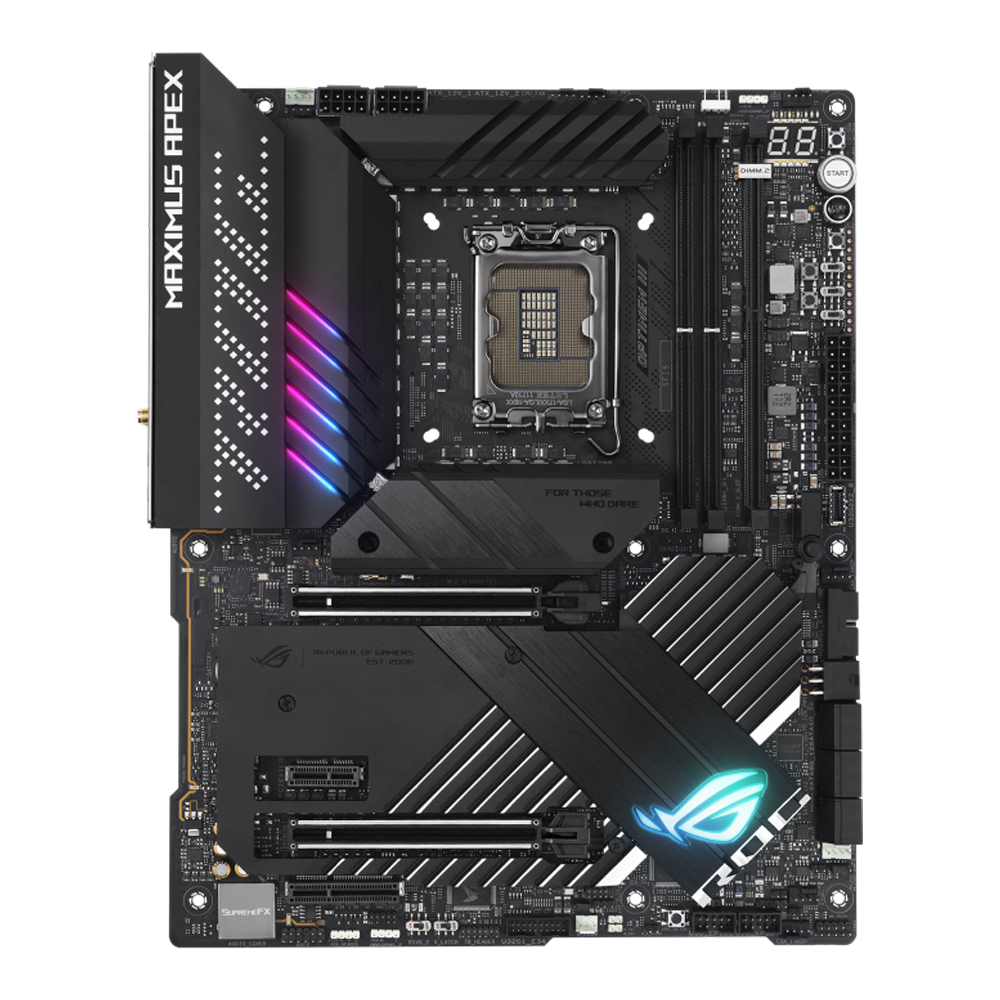

MAINBOARD (เมนบอร์ด) 1700 ASUS ROG MAXIMUS Z690 APEX

MAINBOARD (เมนบอร์ด) 1700 ASUS ROG MAXIMUS Z690 APEX

รายละเอียดสินค้าโดยย่อ

• Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors
• Intel Z690
• 4 x DDR5 DIMM
• ATX

MAINBOARD (เมนบอร์ด) 1700 ASUS ROG MAXIMUS Z690 APEX
(#9207002008)

รับประกัน 3 - y
ราคา
บาท
24,800
ราคาล่าสุดเมื่อ 2021-12-20
ส่งฟรี
คุณสมบัติ
model
Brand
Asus
Model
ROG MAXIMUS Z690 APEX
CPU
Socket
1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh)
Wattage
125W
Chipset
Intel Z690
Series
Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
memory
Slot
4
Memory Type
DDR5
Max. Capacity
128 GB
Speed
4800 , 5000 (OC) , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC)
Graphic & Audio
Graphic
No
Audio
ROG SupremeFX ALC4080
7.1 Surround Sound High Definition Audio
Storage
SATA 2
- Port
SATA 3
6 Port
RAID
0/1/5/10
M.2
5 (4 Support PCIe, 1 Support PCIe & SATA) Port
expansion slots
Details
No
Slot
1 x PCIe 3.0 x1 Slot , 1 x PCIe 3.0 x4 Slot , 2 x PCIe 5.0 x16 Slot
network
LAN
Intel 2.5Gb Ethernet
LAN Speed
100/1000/2500 Mbps
Wireless
Wi-Fi 6E (802.11ax)
Bluetooth 5.2

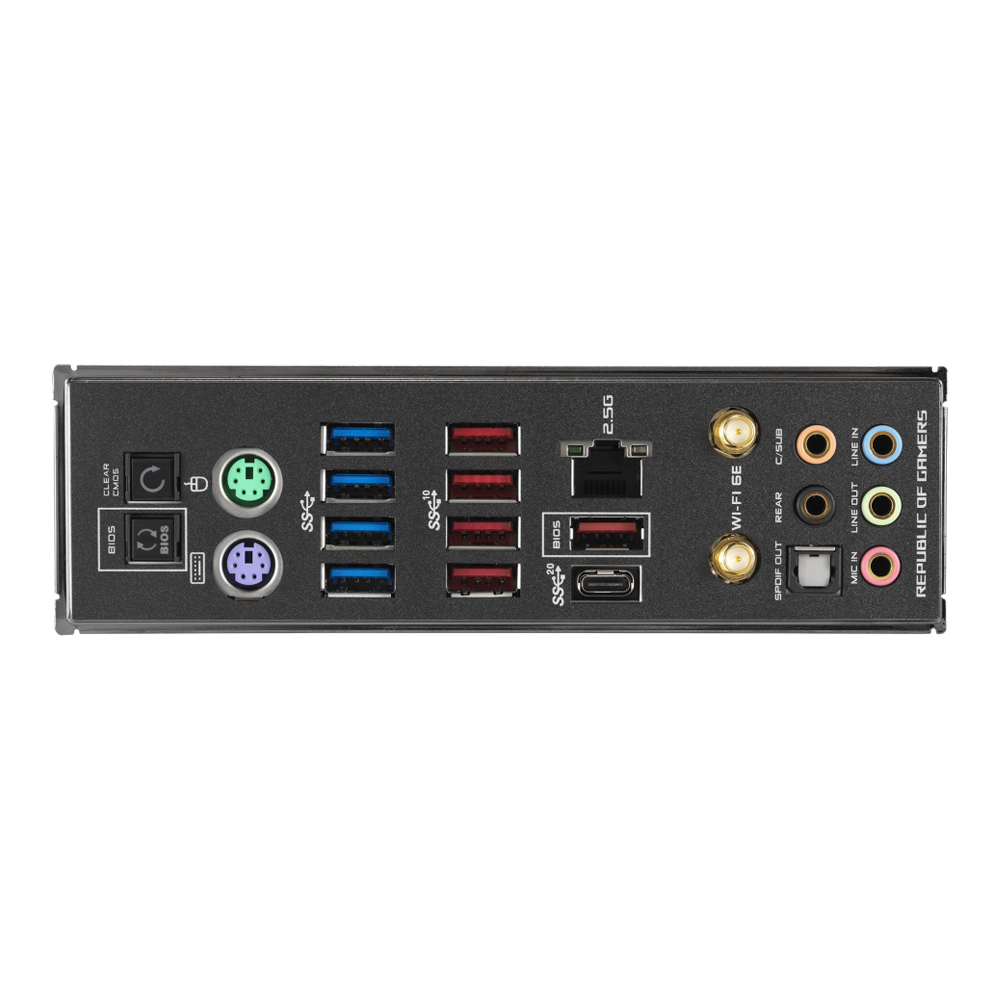

Back Panel I/O Ports
USB 2.0
- Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
1 x USB 3.2 Gen 2x2 Type-C
5 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
- Port
DisplayPort
- Port
Audio
5 x Audio jack
1 x Optical S/PDIF Out Port
PS/2
2 Port
Additional
1 x Wi-Fi Module
1 x BIOS FlashBack button
1 x Clear CMOS button
LAN
1 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 8 + 8 Pin
Dimension
30.5 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

ขออภัย ไม่มีรายละเอียดหรือข้อมูลในส่วนนี้ค่ะ
