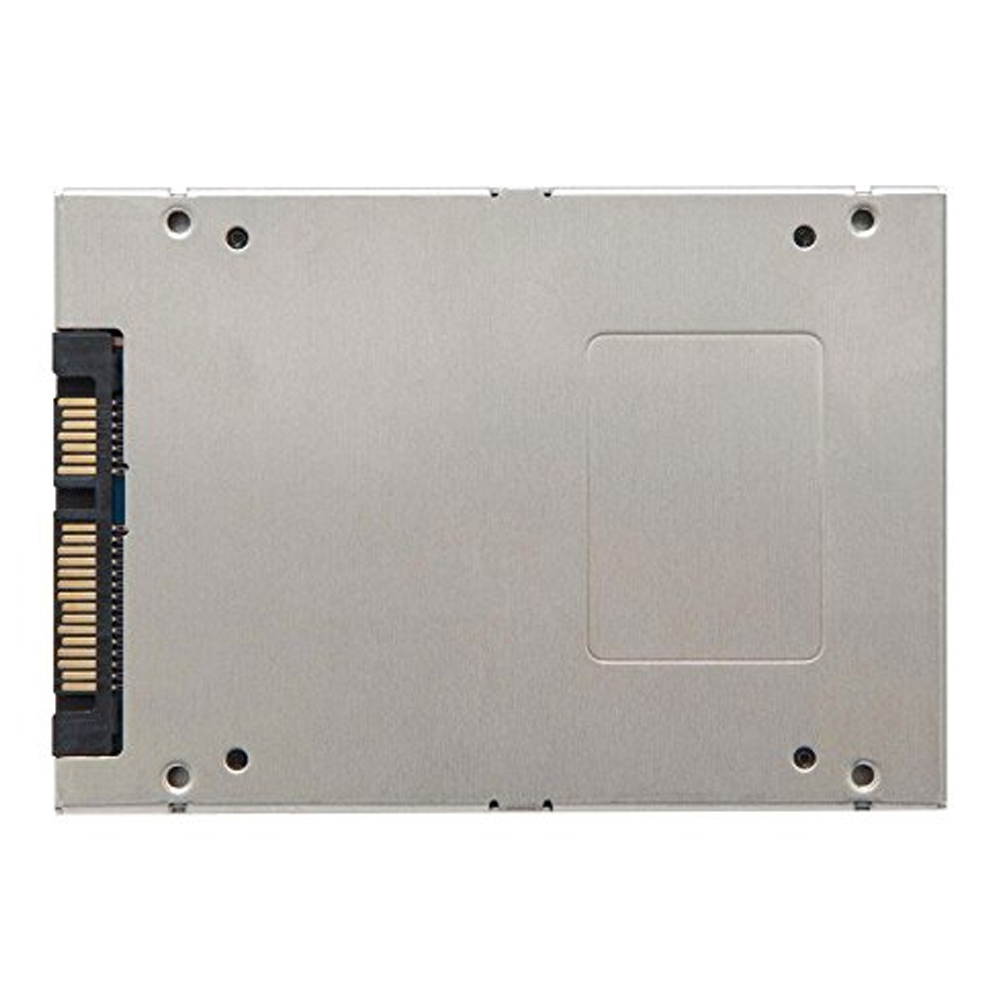

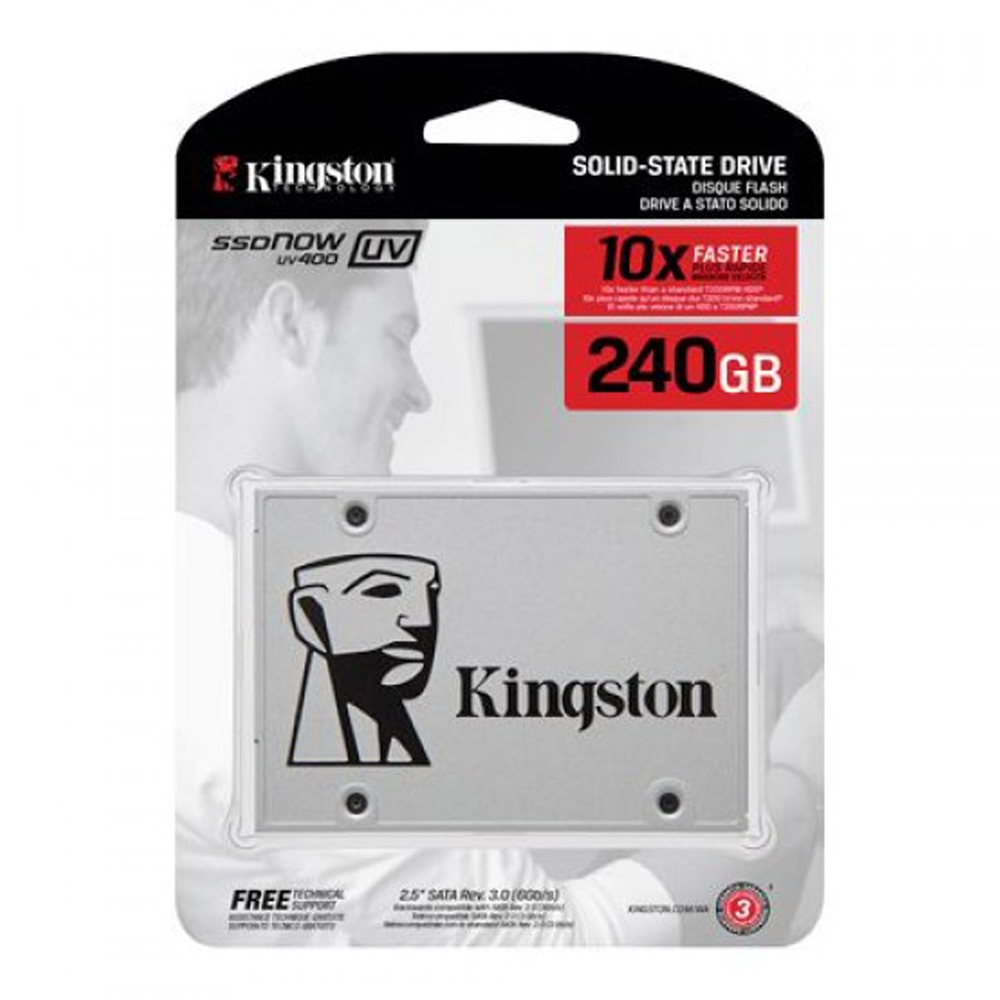

SSDNow UV400
Kingston’s SSDNow UV400 is powered by a four-channel Marvell controller for incredible speeds and higher performance compared to a mechanical hard drive. It dramatically improves the responsiveness of your existing system and is 10 times faster than a 7200RPM hard drive1. Rugged and more reliable and durable than a hard drive, UV400 is built using Flash memory. For easy installation, UV400 is available in a bundle kit and in multiple capacities, from 120GB to 960GB2.
- 10 times faster than a 7200RPM hard drive1
- More reliable and durable than a hard drive
- Available as a bundle kit for easy installation
- Multiple capacities to meet your needs
|
SPECIFICATIONS
- Form factor 2.5"
- Interface SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
- Capacities3 120GB, 240GB, 480GB, 960GB
- Controller Marvell 88SS1074
- NAND TLC
- Baseline Performance1 Data Transfer (ATTO)
○ 120GB — up to 550MB/s Read and 350MB/s Write
○ 240GB — up to 550MB/s Read and 490MB/s Write
○ 480GB — up to 550MB/s Read and 500MB/s Write
○ 960GB — up to 540MB/s Read and 500MB/s Write
• Maximum Random 4k Read/Write (IOMETER)
○ 120GB — up to 90,000 IOPS and 15,000 IOPS
○ 240GB — up to 90,000 IOPS and 25,000 IOPS
○ 480GB — up to 90,000 IOPS and 35,000 IOPS
○ 960GB — up to 90,000 IOPS and 50,000 IOPS
- Power Consumption 0.672W Idle / 0.693W Avg / 0.59W (MAX) Read / 2.515W (MAX) Write
- Storage temperature -40°C~85°C
- Operating temperature 0°C~70°C
- Dimensions 100.0mm x 69.9mm x 7.0mm
- Weight 57g
- Vibration operating 2.17G Peak (7–800Hz)
- Vibration non-operating 20G Peak (10–2000Hz)
- Life expectancy 1 million hours MTBF
- Warranty/support4 Limited 3-year warranty with free technical support
- Total Bytes Written (TBW)5 120GB: 50TB 240GB: 100TB 480GB: 200TB 960GB: 400TB
|
