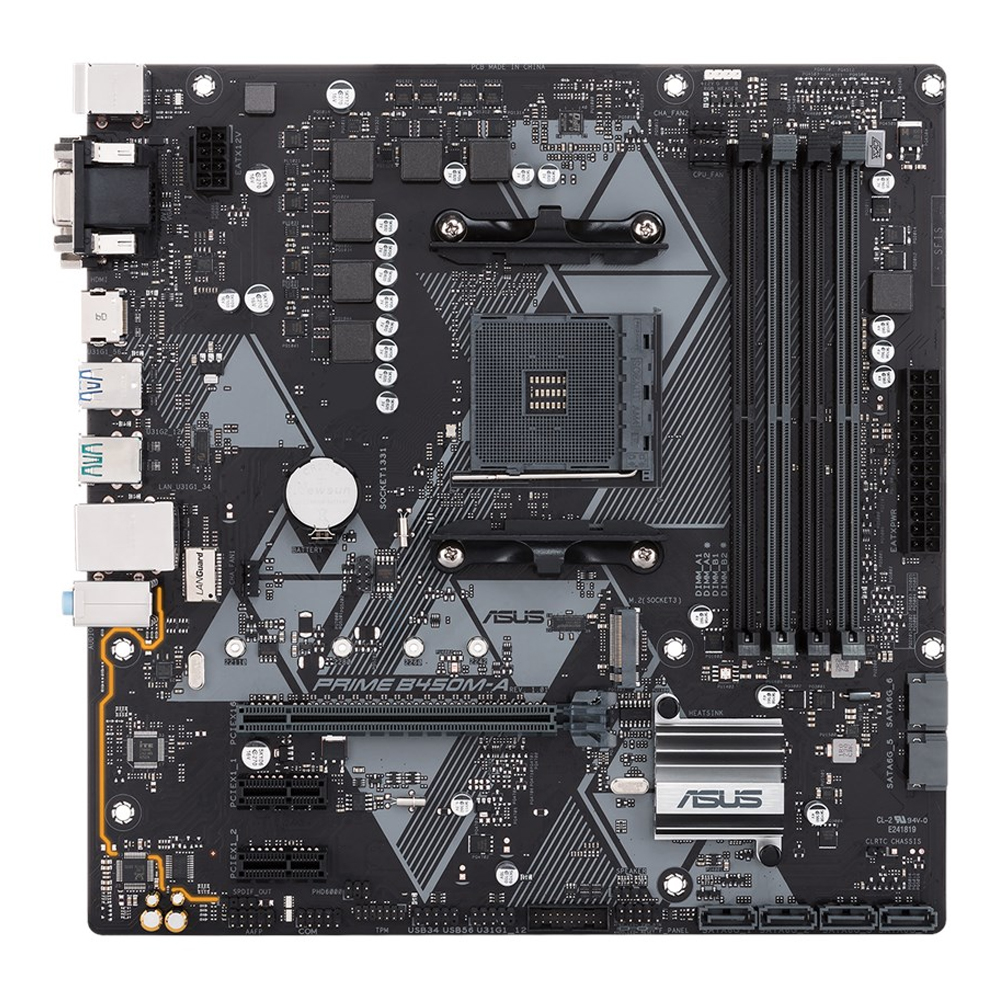

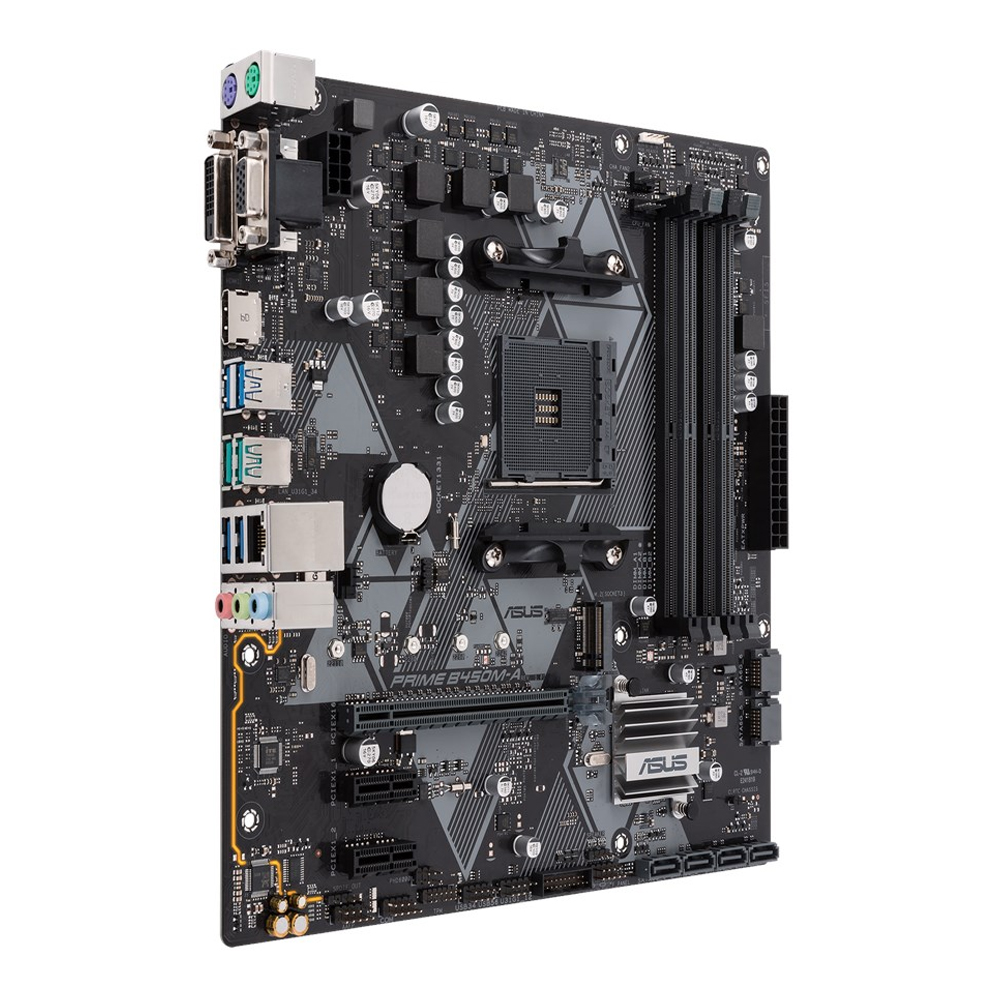

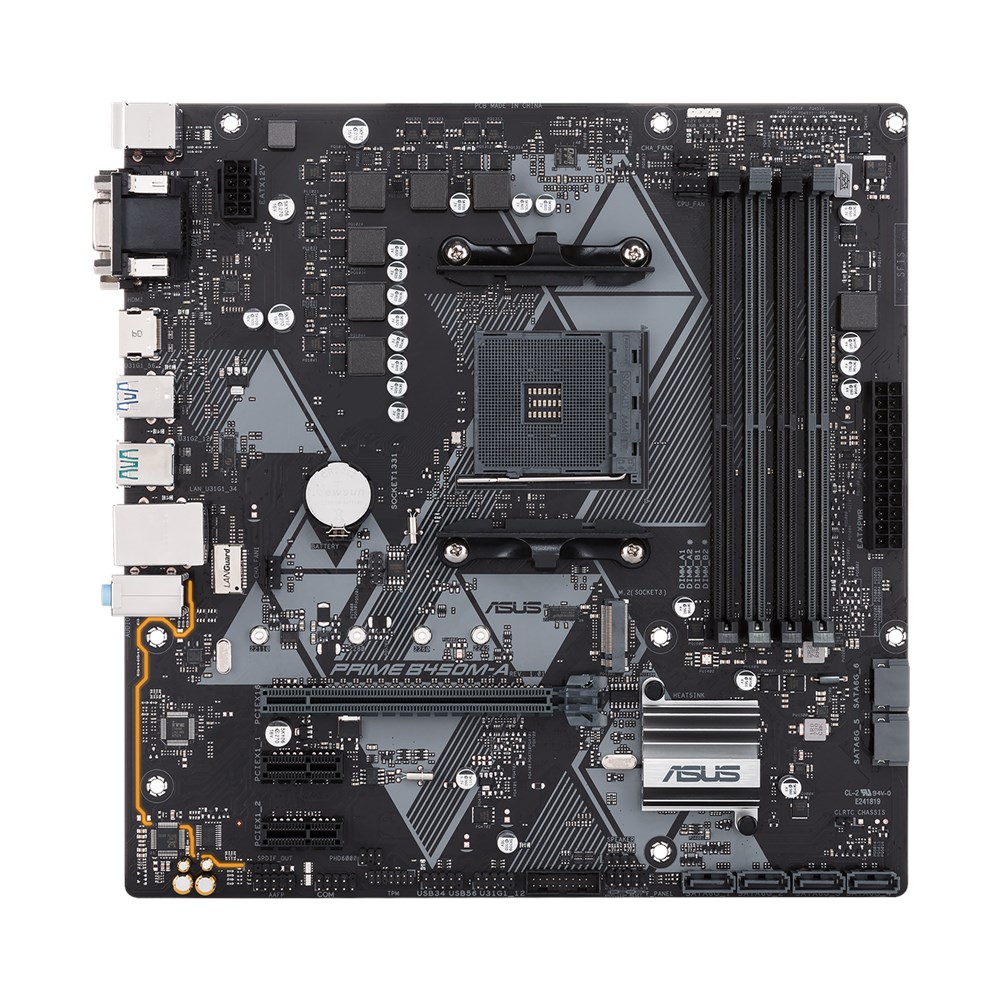

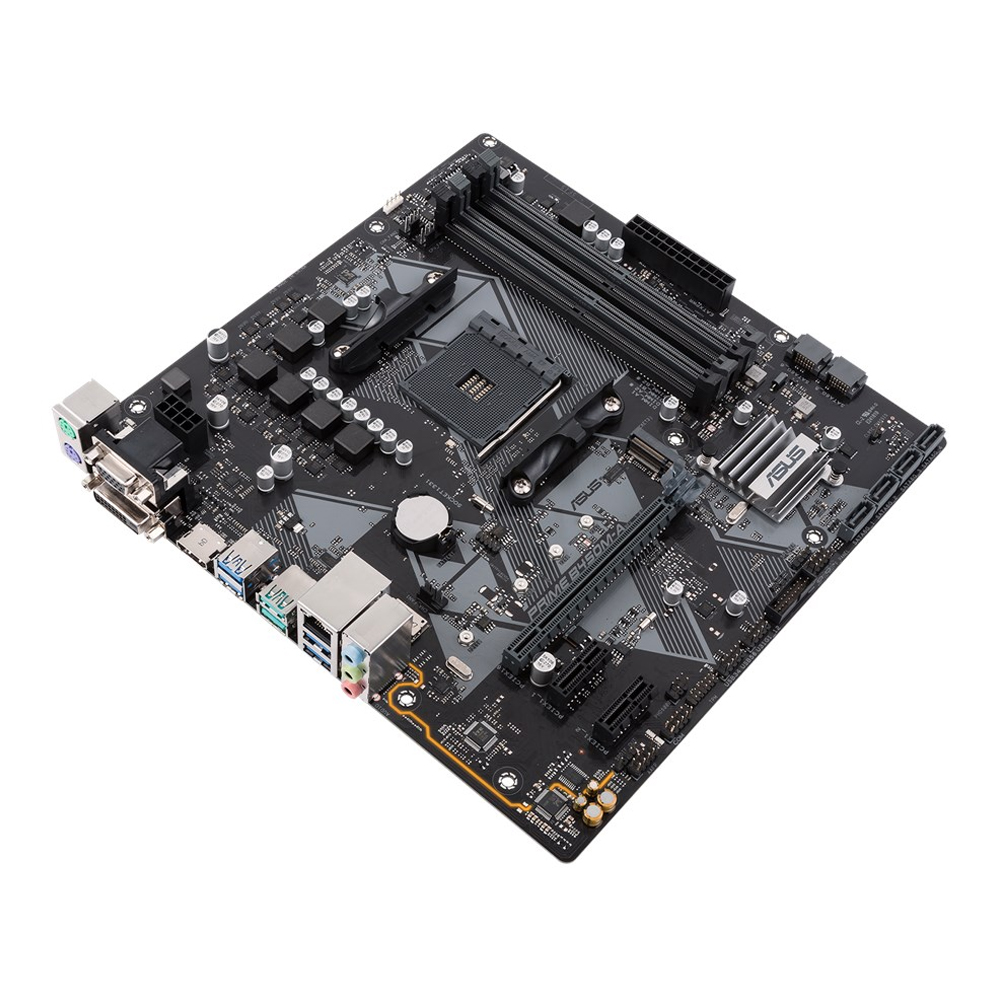

MAINBOARD (เมนบอร์ด) AM4 ASUS PRIME B450M-A AURA SYNC SUPPORT

MAINBOARD (เมนบอร์ด) AM4 ASUS PRIME B450M-A AURA SYNC SUPPORT

Sub description

NO.1 GAMING MOTHERBOARD BRAND
SOCKET : AM4
CHIPSET : AMD B450
MEMORY : 4 X DDR4 DIMM
Product is in 2-hour delivery. Additional charge 500 Baht. Only in Bangkok and Metropolis area.

MAINBOARD (เมนบอร์ด) AM4 ASUS PRIME B450M-A AURA SYNC SUPPORT
(#3008525335)

81 Orders
Warranty 3 - y
Price
THB
2,590
Free delivery
-
+
Buy now

0.80%
4 m.
Pay monthly 668.22 .-
Property
model
Brand
ASUS
Model
PRIME B450M-A
support CPU
Socket
AM4 1000 Series , AM4 1000 Series [ >65W ] , AM4 2000 Series , AM4 2000 Series [ >65W ] , AM4 3000 Series , AM4 Athlon
CPU Generation
AMD RYZEN series
รองรับการกินไฟ CPU
105W
Chipset
B450
CPU Series
AMD Ryzen™ , Athlon
memory
จำนวน Slot แรม
4
ชนิดของแรม
DDR4
ความจุแรมสูงสุด
64 GB
Ram Bus
2133 , 2400 , 2666 , 2800 (OC) , 3000 (OC) , 3200 (OC)
Graphic & Audio
Graphic
Integrated Graphics CPU ( actual support depend on CPU )
Audio
Realtek ALC887
รองรับระบบเสียง
8-Channel High Definition Audio CODEC
storage connector
Port SATA 2
- Port
Port SATA 3
6 Port
รองรับฟังก์ชั่น RAID
0/1/10 for SATA
Port M.2 SSD
1 ( PCIe & SATA ) Port
expansion slots
รายละเอียดอื่นๆ
-
Slot
1 x PCIe 3.0 x16 Slot , 2 x PCIe 2.0 x1 Slots
network
Chipset LAN
Realtek RTL8111H
ความเร็ว LAN
10/100/1000 Mbps
wi-Fi
-

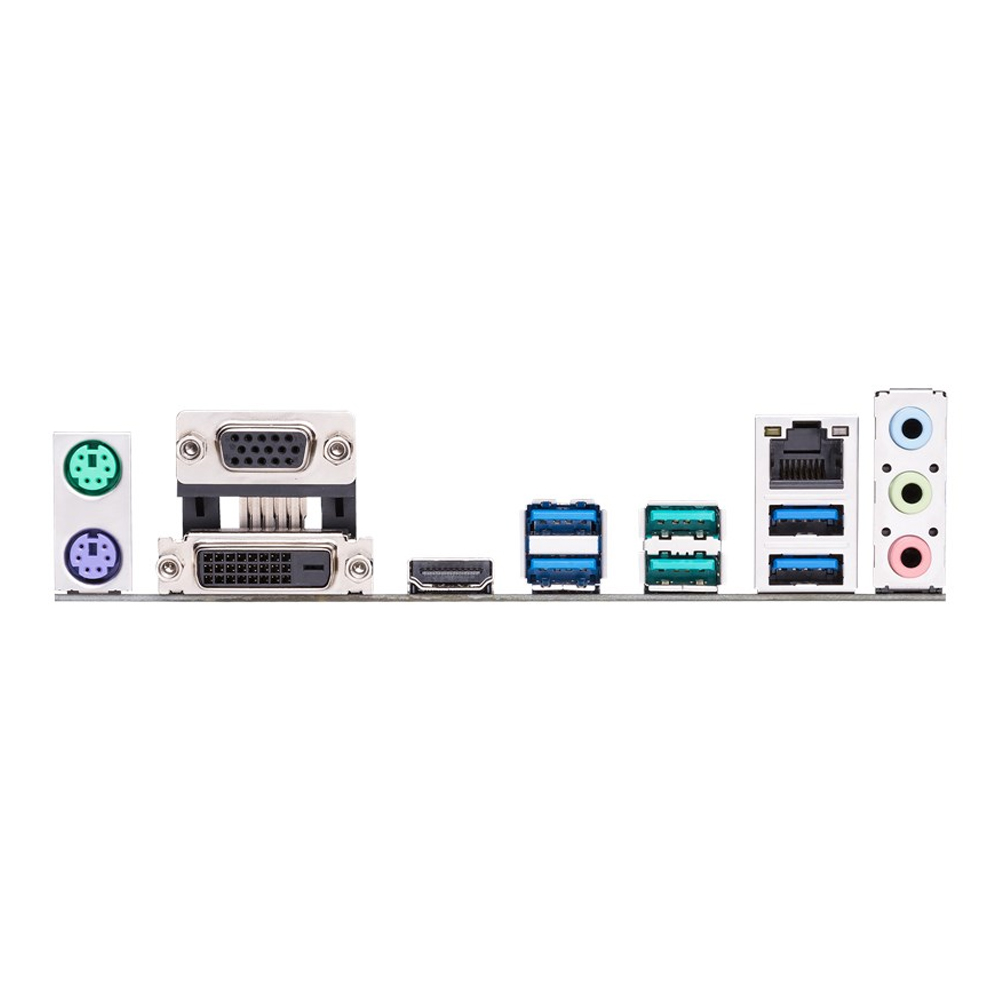

rear panel ports
USB 2.0
- Port
USB 3.0
- Port
USB 3.1
6 ( 2 x USB 3.1 Gen 2 , 4 x USB 3.1 Gen 1 ) Port
USB 3.2
Serial Port
- Port
Dsub Output
1 Port
DVI Output
1 Port
HDMI Output
1 Port
DisplayPort Output
- Port
Audio Output
3 x Audio jack Port
PS2 Port
2
LAN (RJ45)
Option Port
-
physical spec
Form Factor
Micro-ATX
ช่องเสียบไฟ
24+8 Pin
ขนาด
24.4 x 24 cm
warranty
การรับประกัน
3 Years
Product description

NO.1 GAMING MOTHERBOARD BRAND
ASUS Prime B450 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450 Series motherboard, you build smart, easy and affordably.

Cooler by design
Prime B450 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.


Make your memory faster
Featuring an array of trace layout tweaks that improve memory stability, PRIME B450 Series provides a potent foundation for your build. With comprehensive support for the full gamut of Ryzen memory configurations – from entry-level to performance-oriented — PRIME B450 Series is a versatile all-rounder that can work or play.


USB 3.1 Gen 2 Type-A
Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard

With backward-compatible USB 3.1 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps — twice as fast as standard USB 3.1 Gen 1.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.


USB 3.1 Gen 1 front-panel connector
Future-proof connectivity

USB 3.1 Gen 1 is right where you need it, with two super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.


M.2
Speed up with onboard M.2

With x4 PCI Express® 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.


Native M.2/NVMe PCIe RAID Support for
Lightning Fast Storage Speed!

Not satisfied with single-storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speeds.

Built to Last
ASUS is the world's leading motherboard brand. Our motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation — offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.

Aura Sync
Outshine the competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB header, with a variety of functional presets for external LED strips.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.


Brighten Up Your Build
LED-illuminated control for PCIe slot and trace paths

Built-in LED lighting options illuminate your build in a variety of eye-catching styles.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Beyond VR ready
Complete your immersion

Prime B450 series isn't just VR ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime B450 series has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.
