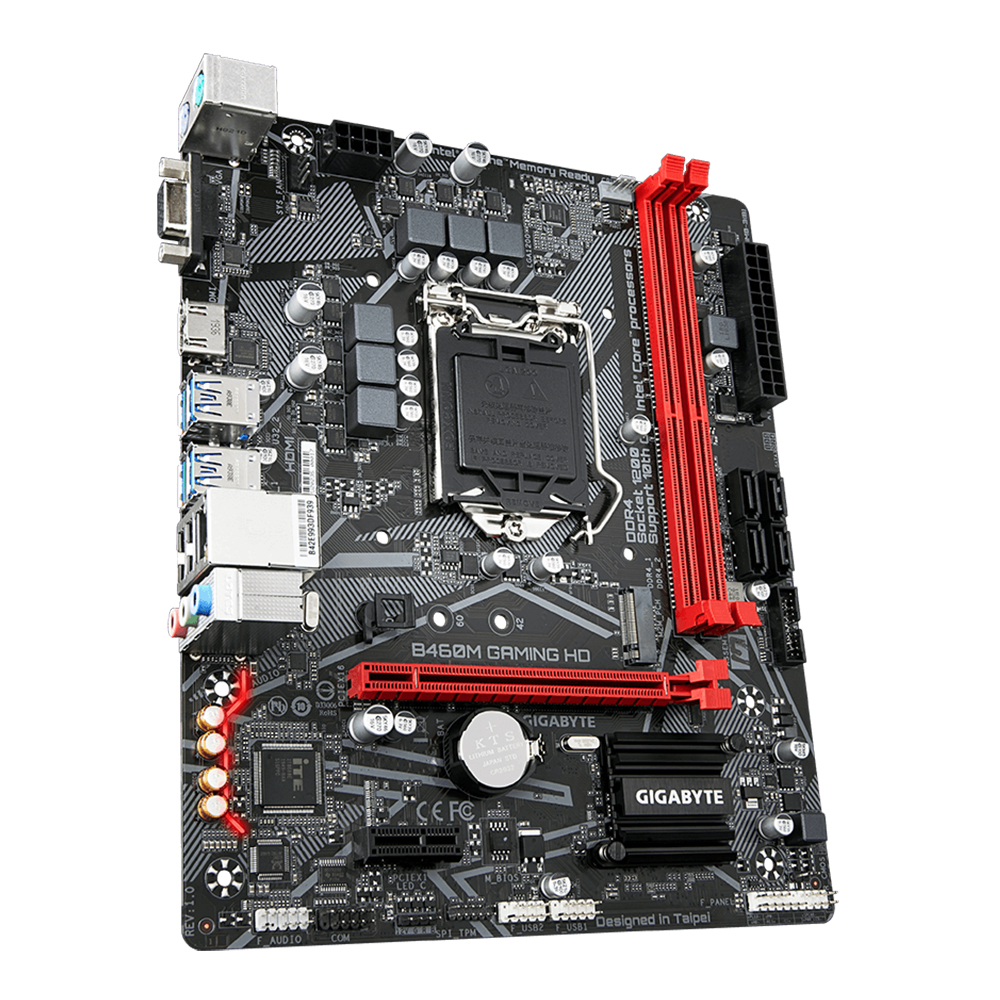

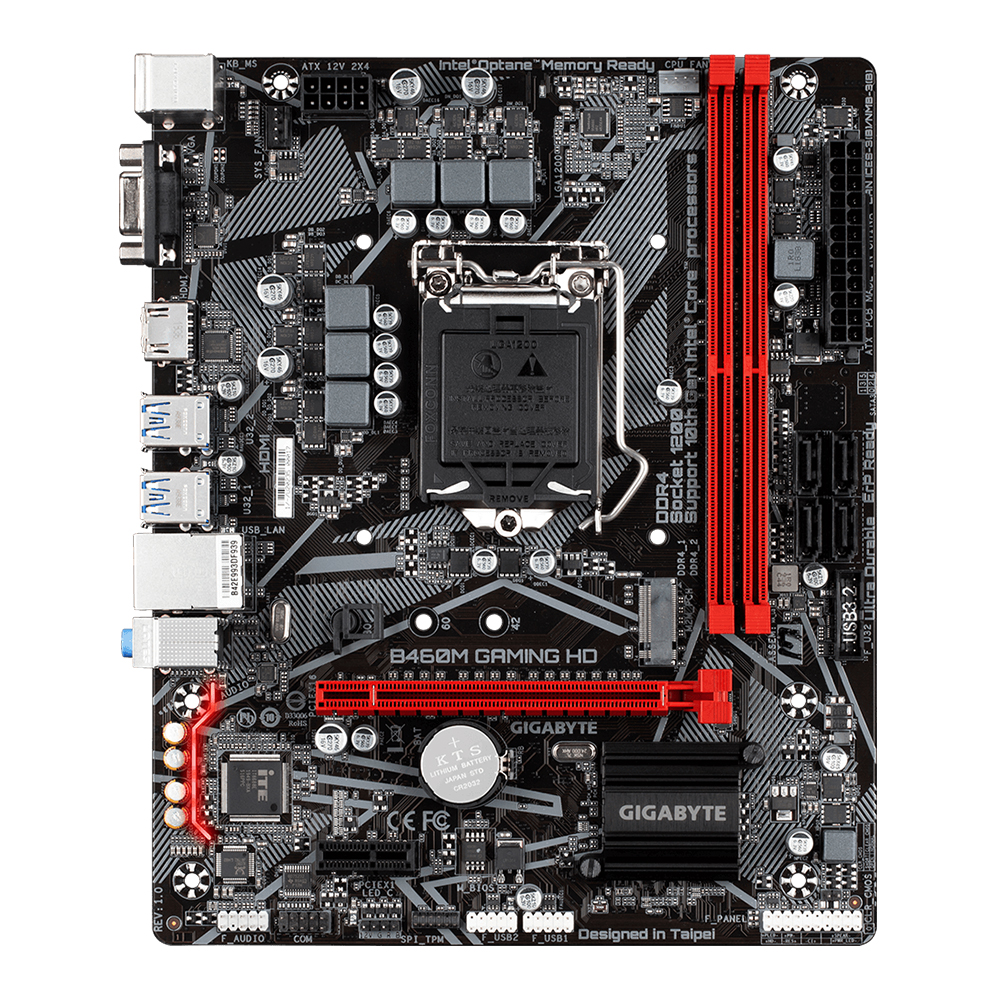

MAINBOARD (เมนบอร์ด) 1200 GIGABYTE B460M GAMING HD

MAINBOARD (เมนบอร์ด) 1200 GIGABYTE B460M GAMING HD

รายละเอียดสินค้าโดยย่อ

• Intel LGA 1200
• Intel B460
• 2 x DDR4 DIMM
• Micro-ATX

MAINBOARD (เมนบอร์ด) 1200 GIGABYTE B460M GAMING HD
(#0201038017)

รับประกัน 3 - y
ราคา
บาท
2,450
ราคาล่าสุดเมื่อ 2021-11-01
ส่งฟรี
คุณสมบัติ
model
Brand
Gigabyte
Model
B460M GAMING HD (rev. 1.0)
CPU
Socket
1200 (10th Gen - Comet Lake)
Wattage
N/A
Chipset
Intel B460
Series
Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium Gold
memory
Slot
2
Memory Type
DDR4
Max. Capacity
64 GB
Speed
2133 , 2400 , 2666 , 2933
Graphic & Audio
Graphic
Integrated Graphics Processor (Depends on CPU)
Audio
Realtek ALC887 codec
2/4/5.1/7.1-channel
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
0, 1, 5, 10
M.2
1 Port
expansion slots
Details
No
Slot
1 x PCIe 3.0 x1 Slot , 1 x PCIe 3.0 x16 Slot
network
LAN
Realtek GbE LAN chip
LAN Speed
100/1000 Mbps
Wireless
No

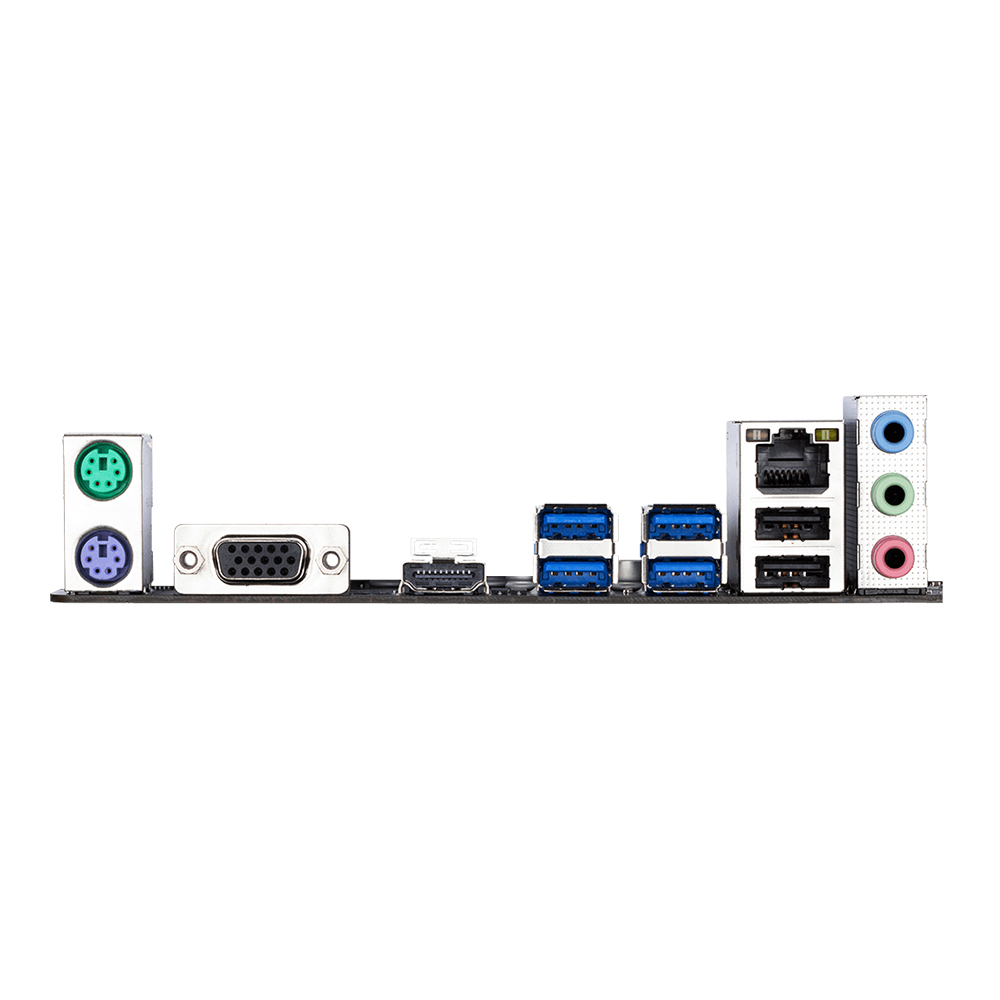

Back Panel I/O Ports
USB 2.0
2 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
4 x USB 3.2 Gen 1 Port
D-Sub (VGA)
1 Port
DVI
- Port
HDMI
1 Port
DisplayPort
- Port
Audio
3 Port
PS/2
1 x PS/2 mouse port, 1 x PS/2 keyboard port
Additional
No
LAN
1 x RJ-45 port
Form Factor
Form Factor
Micro-ATX
Power Connector
24+8 Pin
Dimension
22.6 x 18.5 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

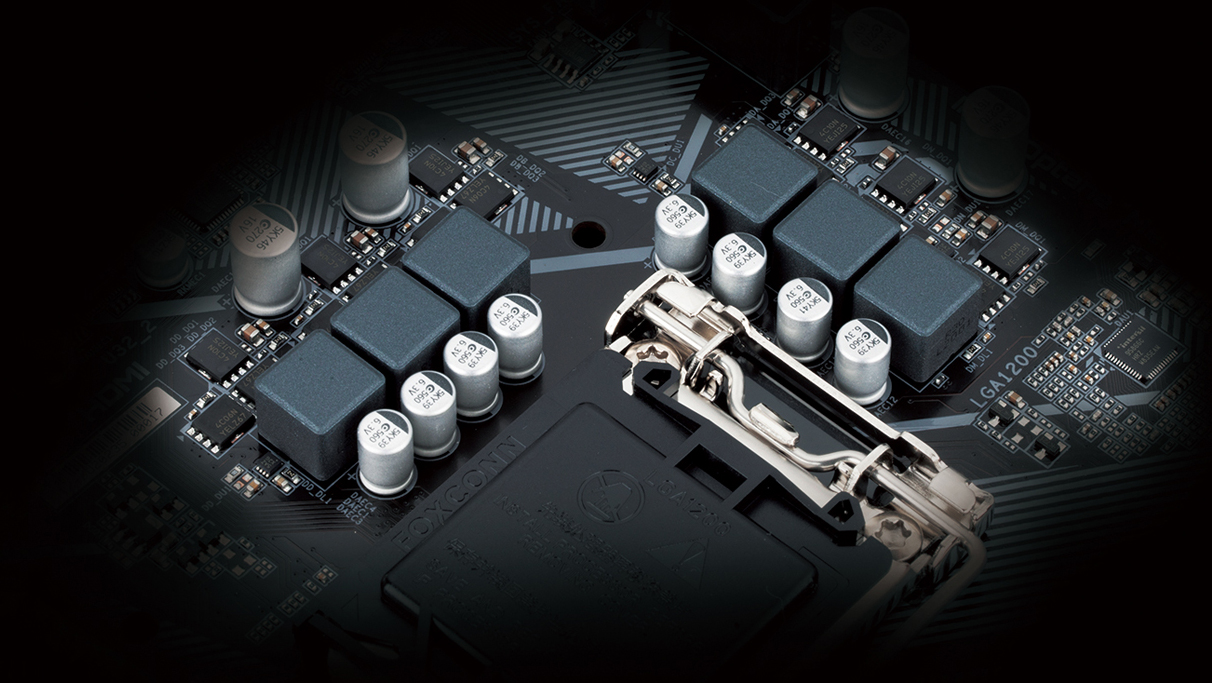

4+2 Hybrid Digital VRM with Low RDS(on) MOSFET
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which are beneficial for both end-users and the environment without impacting system performance.





Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

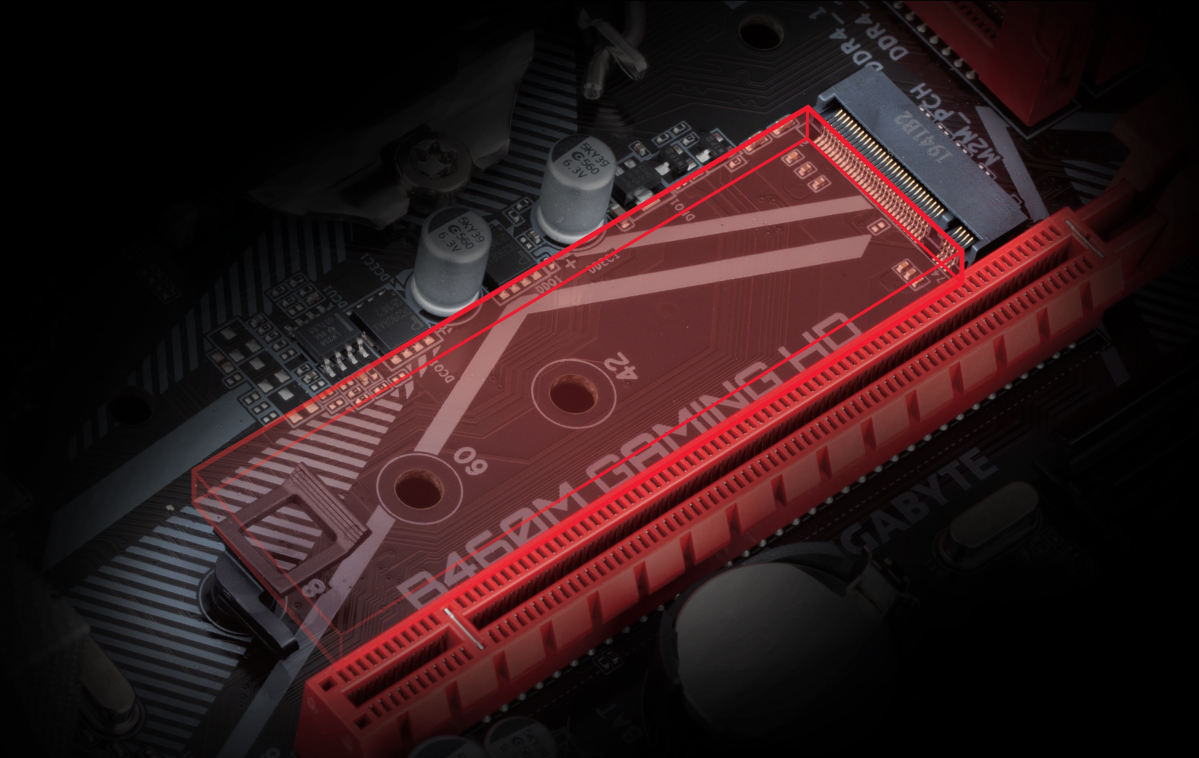

NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.





START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

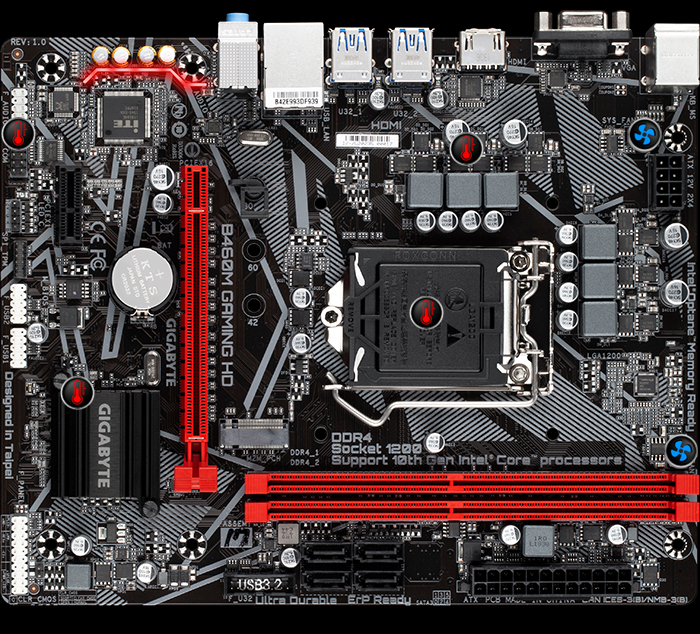

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.





FAN STOP
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.





Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.

• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.





High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

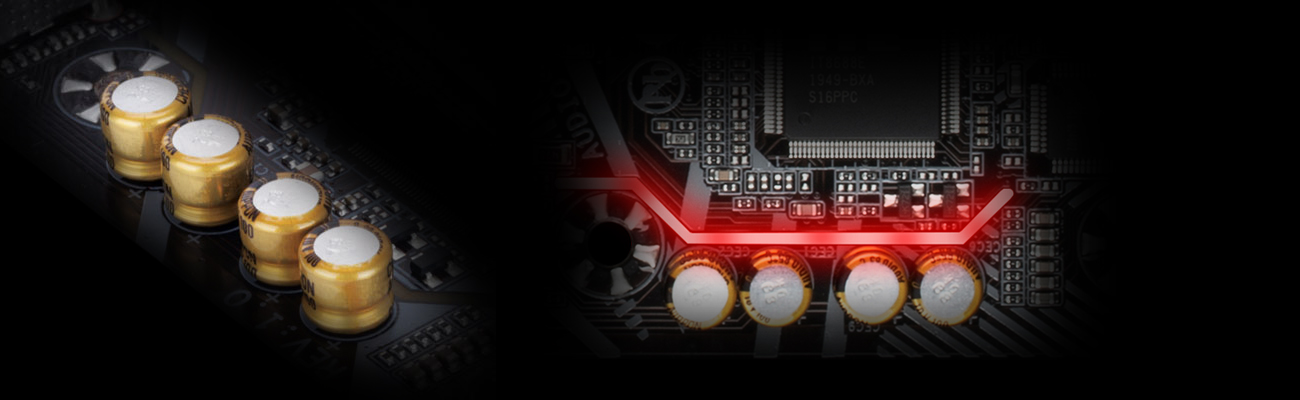

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.





Supports RGB Light Strips in 7 Colors
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!

*LED strips not included.

*Lighting effects may vary by model.





GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.





Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

*Photos are for reference only. Product features may vary by model.





APP CENTER
GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.





EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.





System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.



*Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.


Source : Gigabyte B460M GAMING HD (rev. 1.0)
