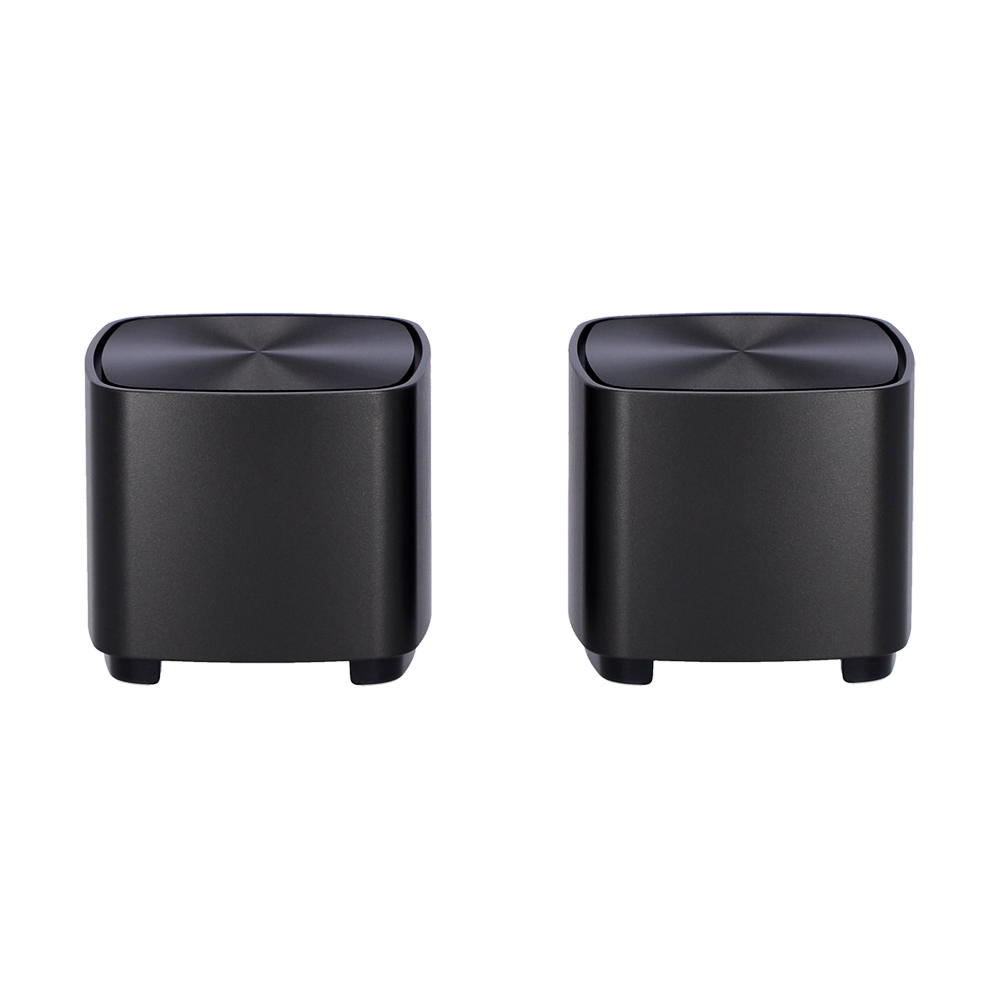

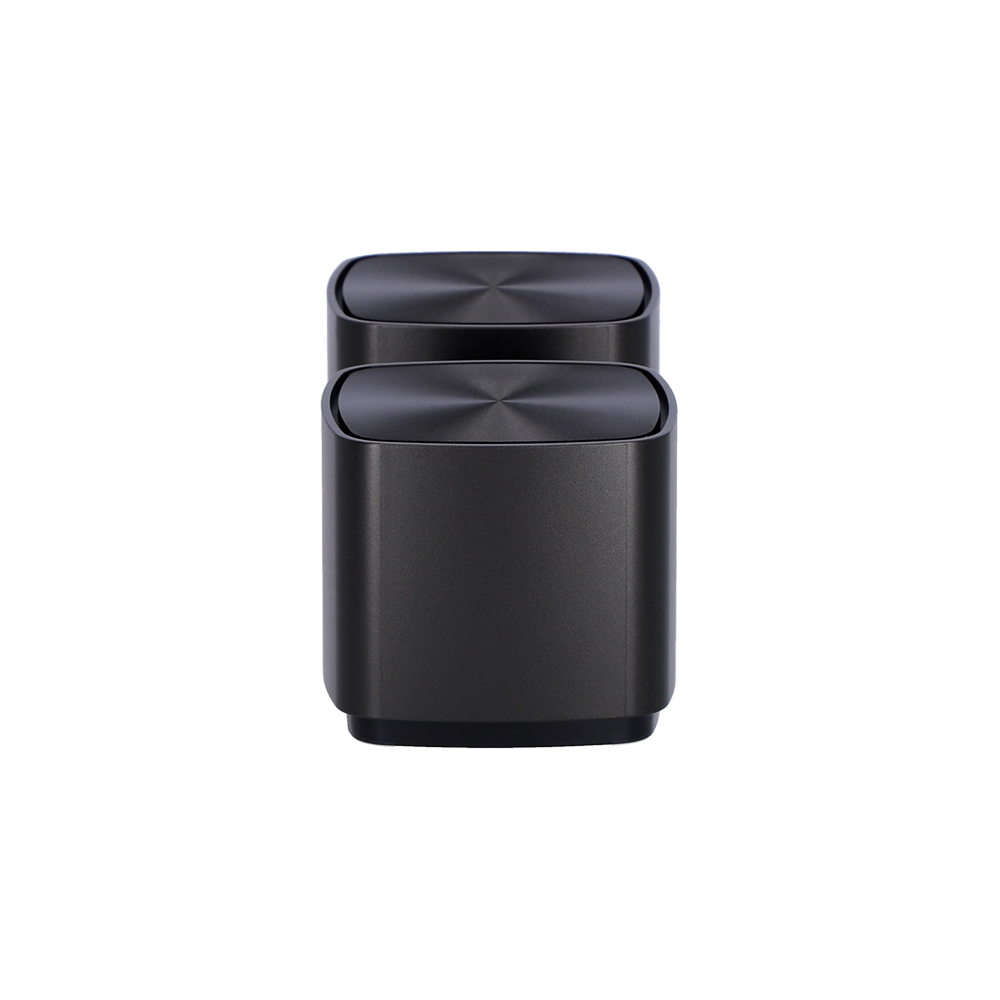

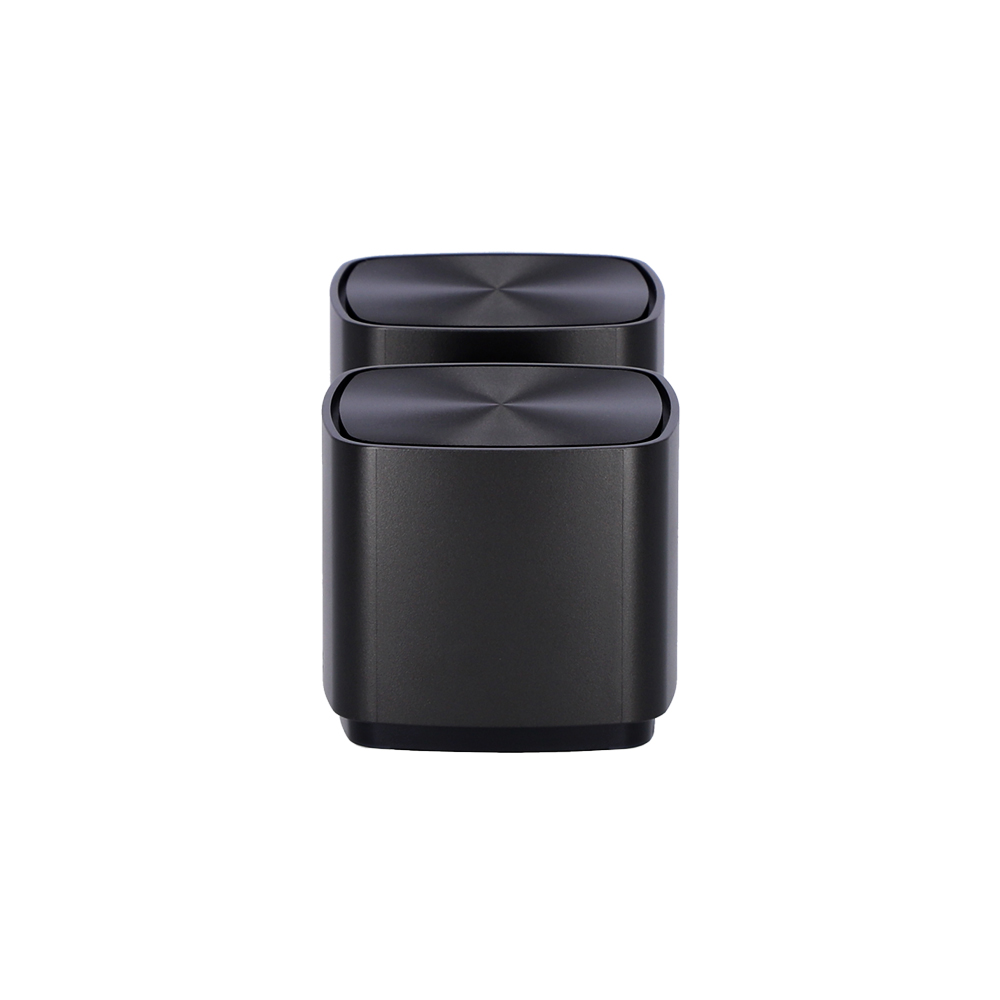

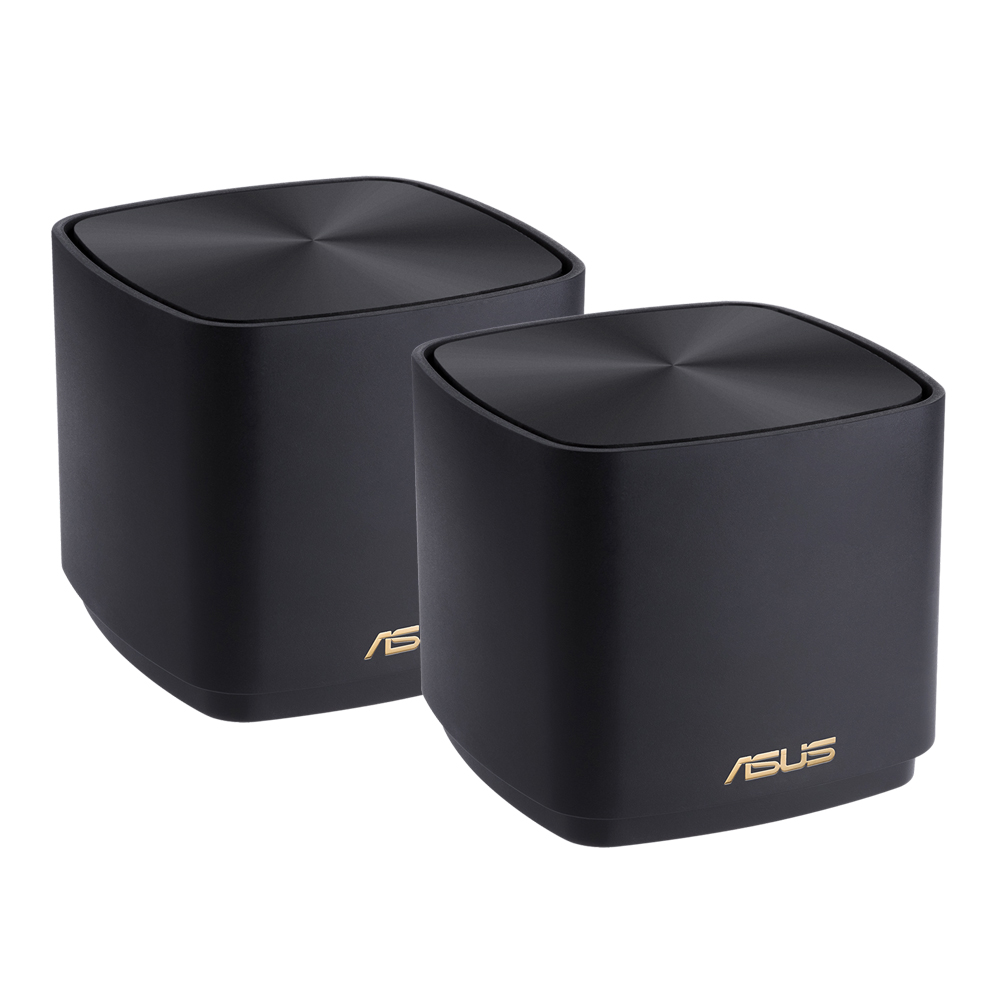

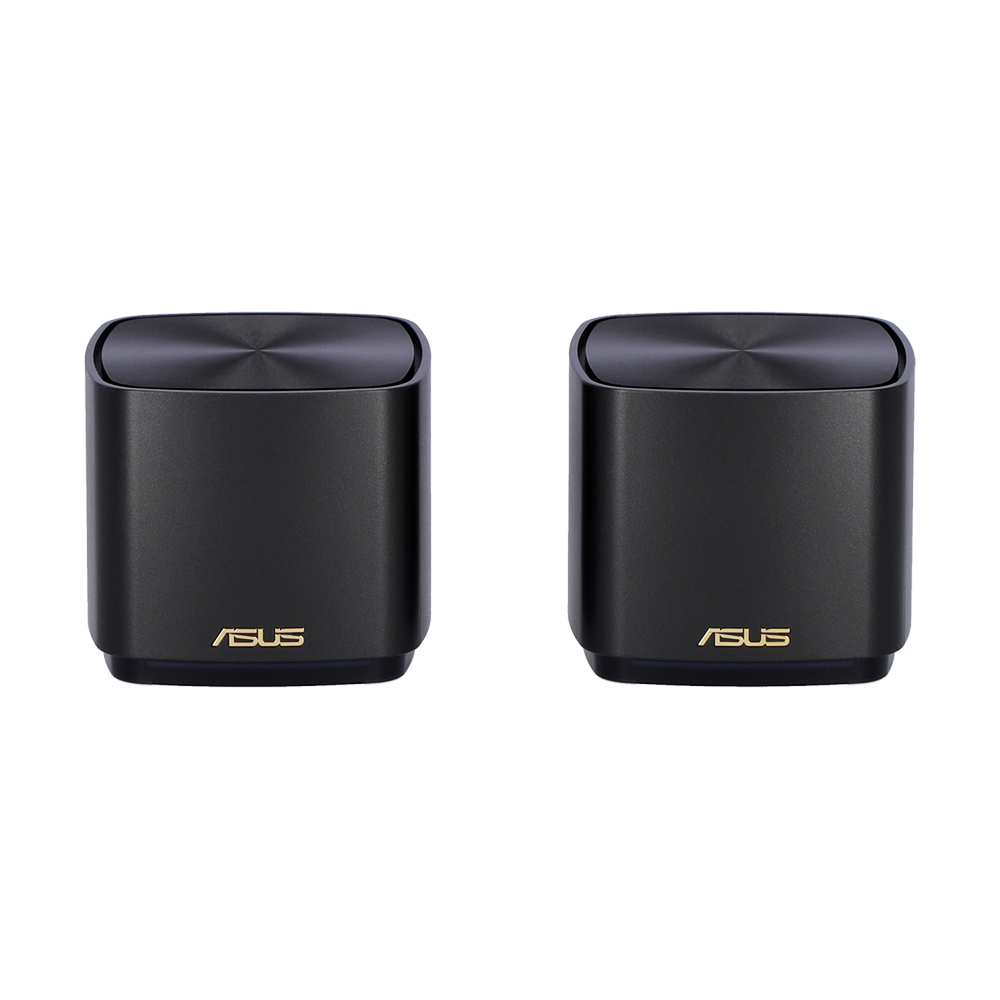

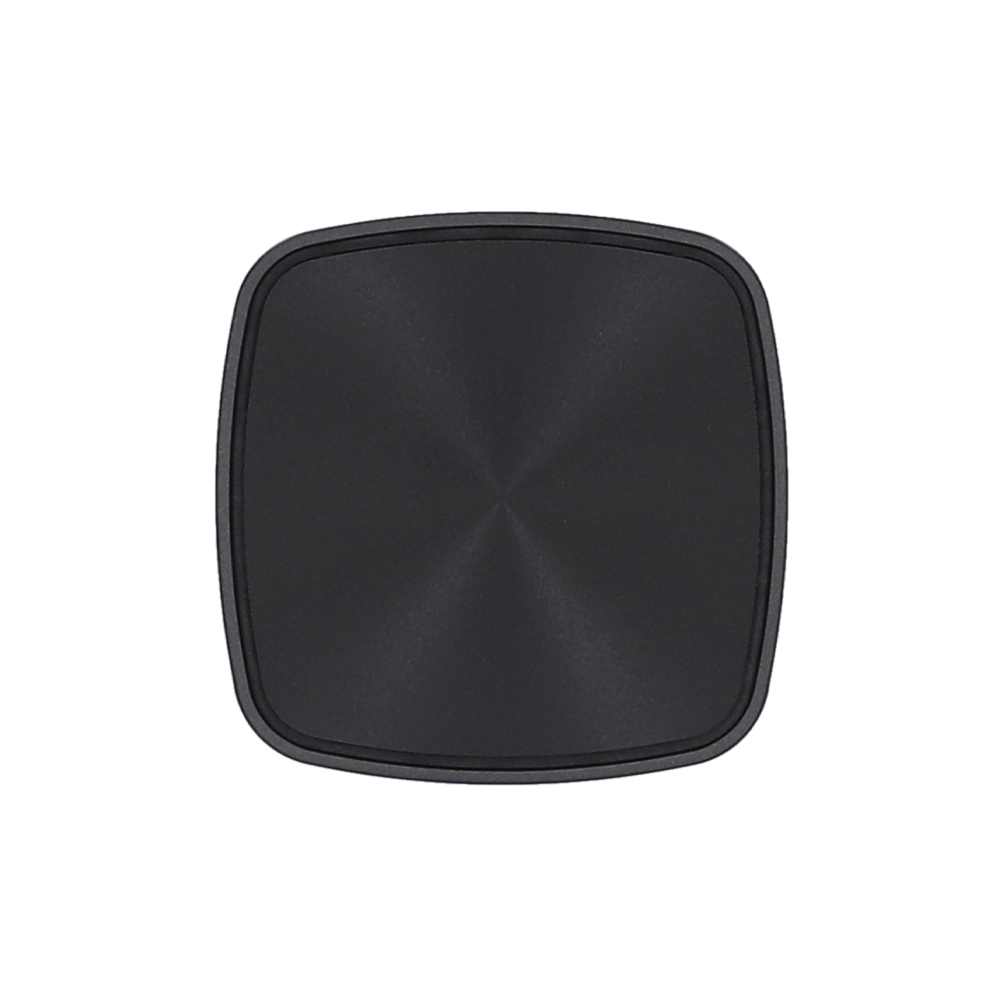

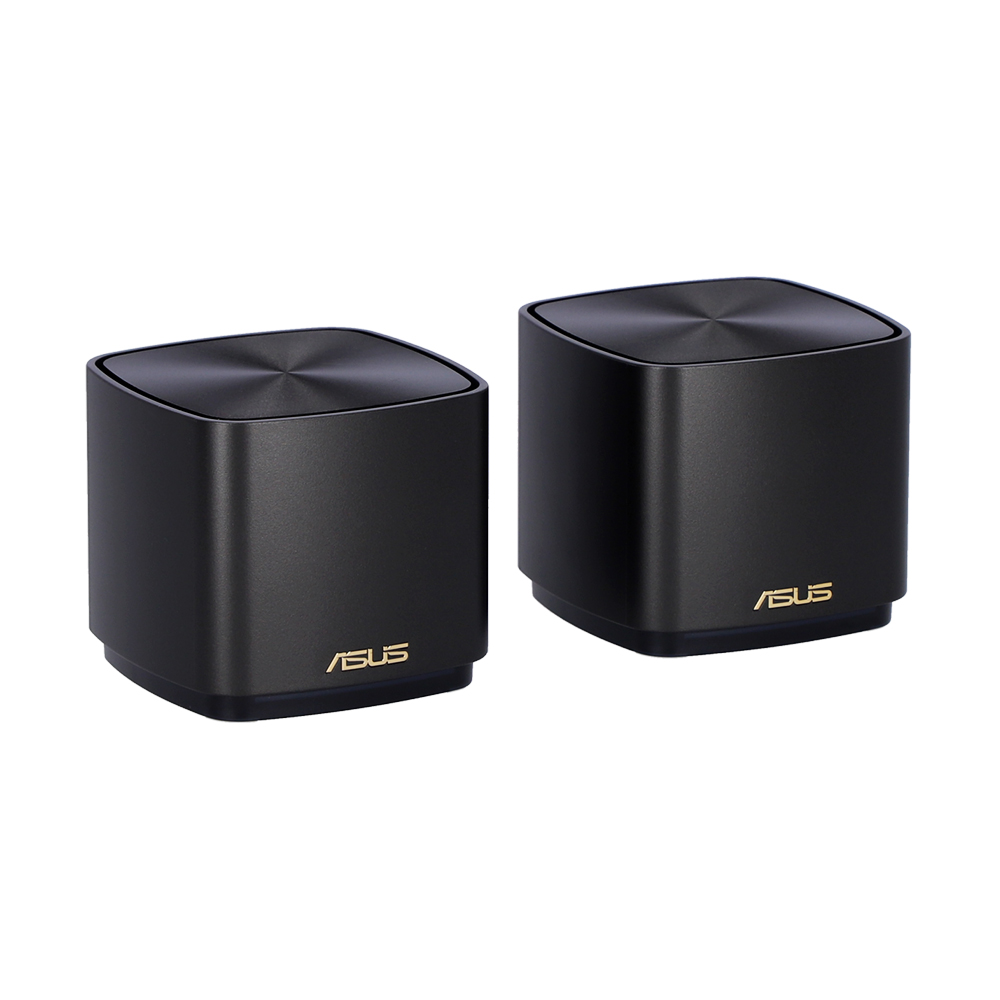

MESH WI-FI (เครือข่ายไวไฟ) ASUS ZENWIFI AX MINI (XD4) (2 PACK)

Model Name : XD4

Network Standard :

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.11ax
• IPv4
• IPv6

Product Segment : AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

AX technology : Yes

Data Rate :

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• 802.11n : up to 300 Mbps
• 802.11ac : up to 867 Mbps
• 802.11ax (2.4GHz) : up to 574 Mbps
• 802.11ax (5GHz) : up to 1201 Mbps

Antenna : Internal dual-band antenna x 2

Transmit/Receive :

• MIMO technology
• 2.4 GHz 2 x 2
• 5 GHz-1 2 x 2

Memory : 256 MB Flash, 256 MB RAM

Boosts speed : MIMO technology

Operating Frequency : 2.4 G Hz / 5 GHz

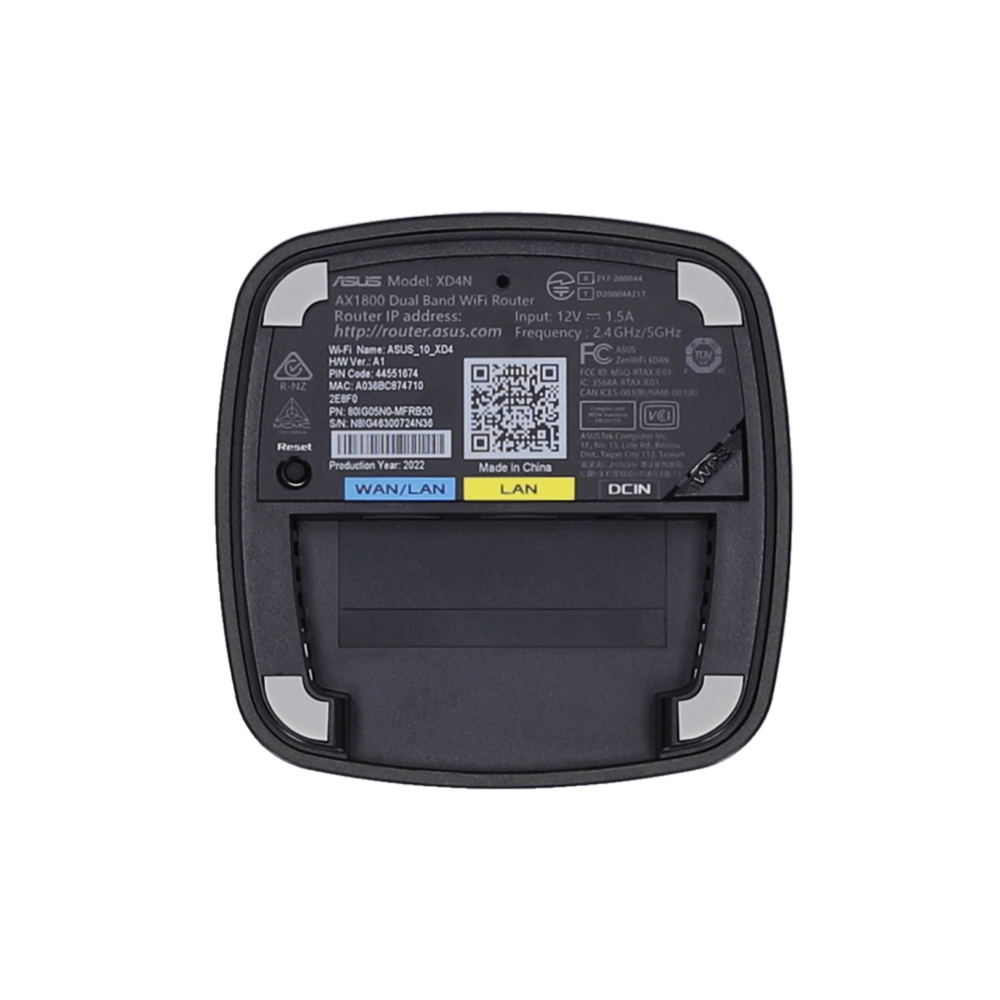

Ports : RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1

Button : WPS Button, Reset Button

LED Indicator : Power x 1

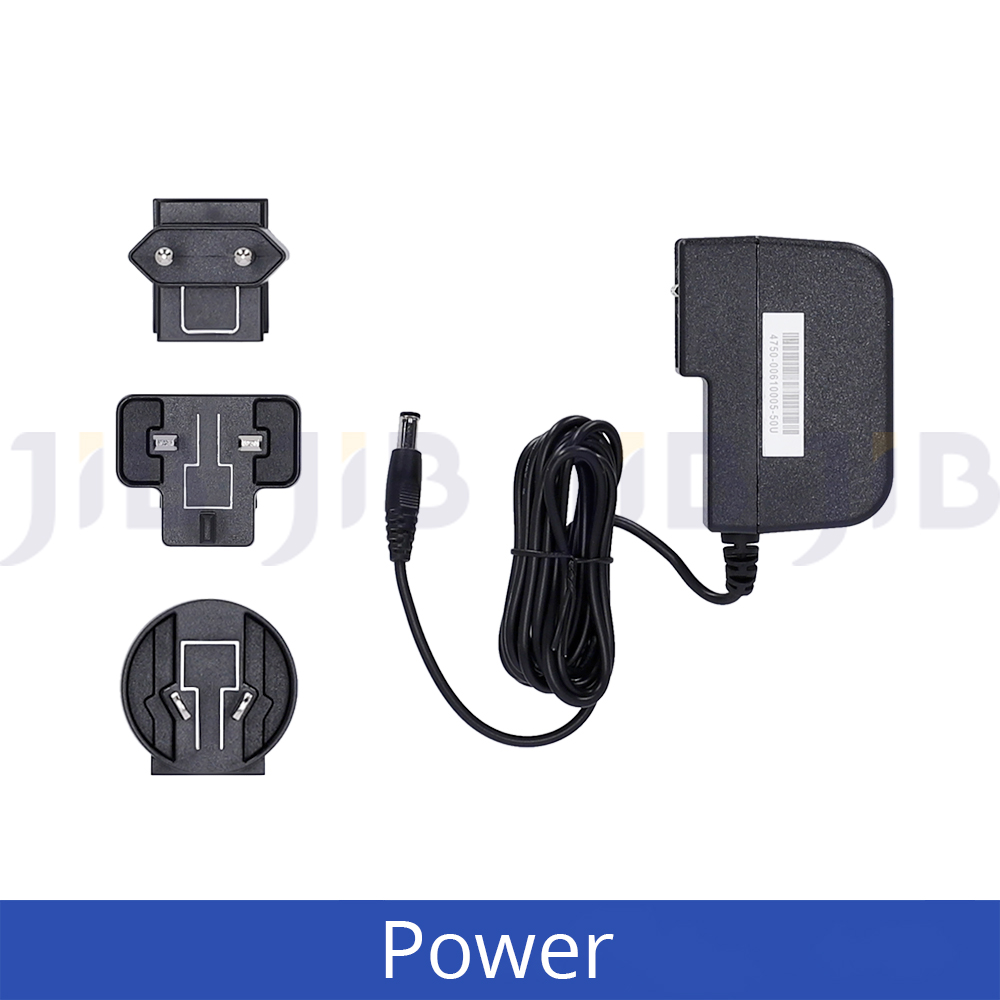

Power Supply :

• "AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 1.5 A current"

Package content :

• Router (XD4R)
• Node (XD4N)

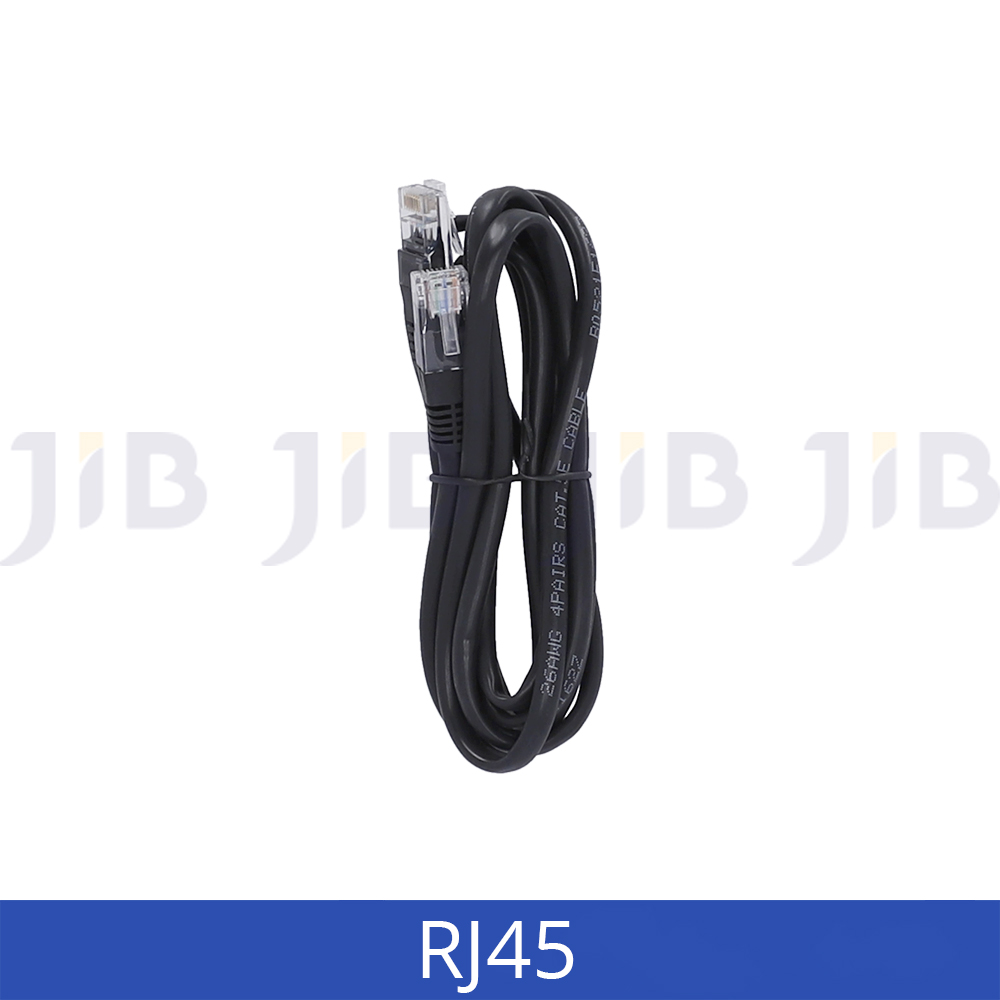

• RJ45 Ethernet cable
• Power adapter
• Quick start guide
• Warranty Card

Product Weight (g) : 295 g

Remark : Content may vary in different regions and packages.

AiMesh :

• AiMesh : Yes
• Primary AiMesh router : Yes
• AiMesh node : Yes

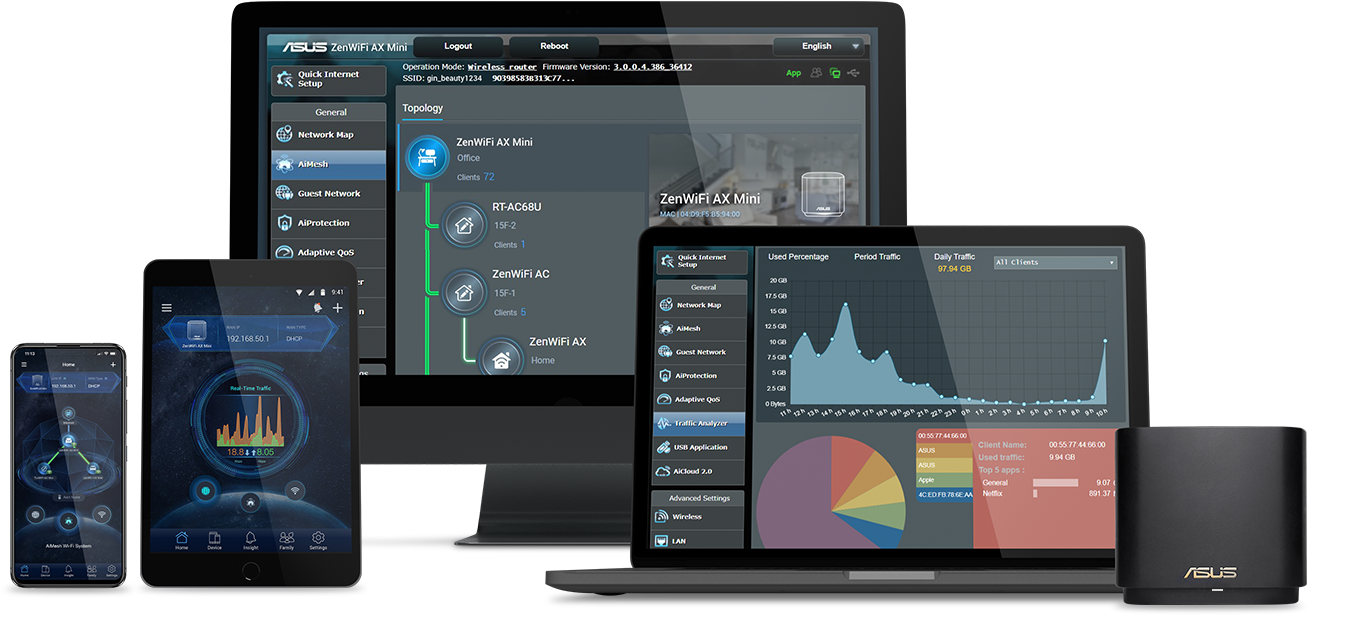

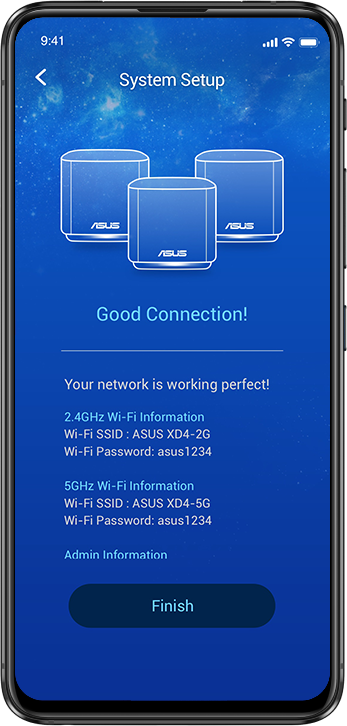

Router APP : ASUS Router APP:Yes

Game :

• Game Boost/acceleration : No
• WTFast : No

Alexa : Support Alexa skill : Yes

IFTTT : Support IFTTT : Yes

AiProtection :

• AiProtection : AiProtection Classic
• Router Security Assessment : No
• Malicious site blocking : Yes
• Two-Way IPS : No
• Infected Device Prevention and Blocking : Yes

Parental Control :

• Parental Control : Yes
• Parental Control Customized Internet schedule : Yes

Traffic Control :

• Adaptive QoS : No
• Bandwidth Monitor : Yes
• Bandwidth limiter : Yes
• Traditional QoS : Yes
• Maximum Traditional QoS rule : 32
• Traffic Monitor : Yes
• Real-time traffic monitor : Yes
• Wired Traffic Monitor : Yes
• Wireless Traffic Monitor : Yes
• Traffic Analyzer : Yes
• Traffic analysis period : Daily, Weekly, Monthly
• Website history : Yes

Wireless :

• IPv6 : Yes
• MU-MIMO : Yes
• Wi-Fi Encryption : WPA3-Personal, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPS support
• UTF-8 SSID : Yes
• Guest Network : Yes
• Maximum Guest Network rule : 9
• Guest Network Connection time limit : Yes
• WPS : Yes
• Wi-Fi MAC address filter : No
• Wireless scheduler : No
• Airtime fairness : No
• RADIUS Server : No
• Universal beamforming : No
• Explicit beamforming : No

WAN :

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN : No
• WAN Aggregation : No
• 3G/4G LTE dongle : No
• Android tethering : Yes
• Port forwarding : Yes
• Port triggering : Yes
• DMZ : Yes
• DDNS : Yes
• NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
• Let's Encrypt : No

LAN :

• DHCP Server : Yes
• IGMP snooping : Yes
• IPTV : Yes
• LAN Link Aggregation : No
• Manually assign IP address : Yes
• Maximum manually assign IP address rule : 64

VPN :

• VPN Client L2PT : Yes
• VPN Client OVPN : Yes
• VPN Client PPTP : Yes
• VPN Server IPSec : Yes
• VPN Server OVPN : Yes
• VPN Server PPTP : Yes
• VPN Fusion : No

USB application :

• HDD hibernation : No
• Safely Remove disk : No
• AiCloud : No
• Download master : No
• AiDisk : No
• Media Server : No
• Time Machine : No
• Samba Server : No
• FTP Server : No
• Shared Folder privileges : No

Administration :

• Operating system : ASUSWRT
• Free OS upgrade : Yes
• Firewall : Yes
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• Wake on LAN (WOL) : Yes
• SSH : Yes
• Configuration backup and restore : Yes
• Diagnosis tools : Yes
• Feedback system : Yes
• System log : Yes
