หน้าแรก คอมพิวเตอร์ฮาร์ดแวร์ เมนบอร์ด Intel LGA 1700 : Item#: 0201038439 [ 97,508 view ]

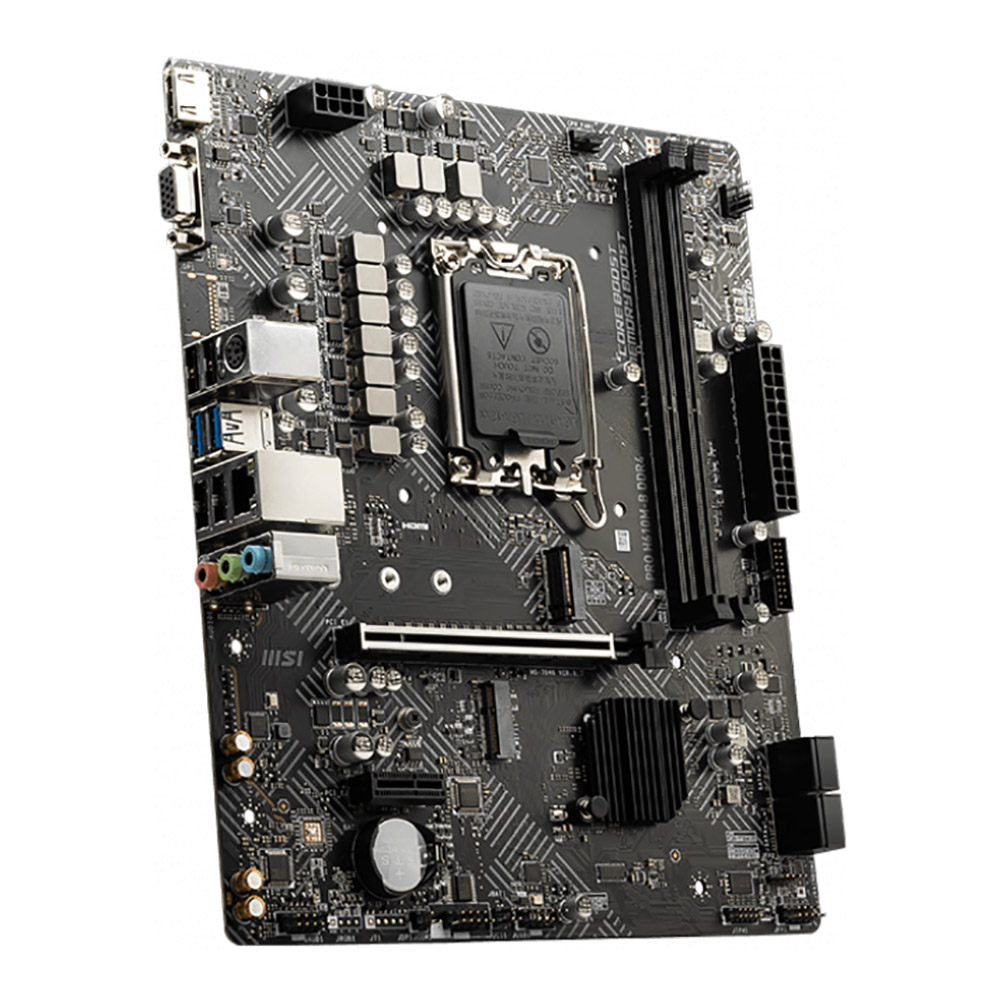

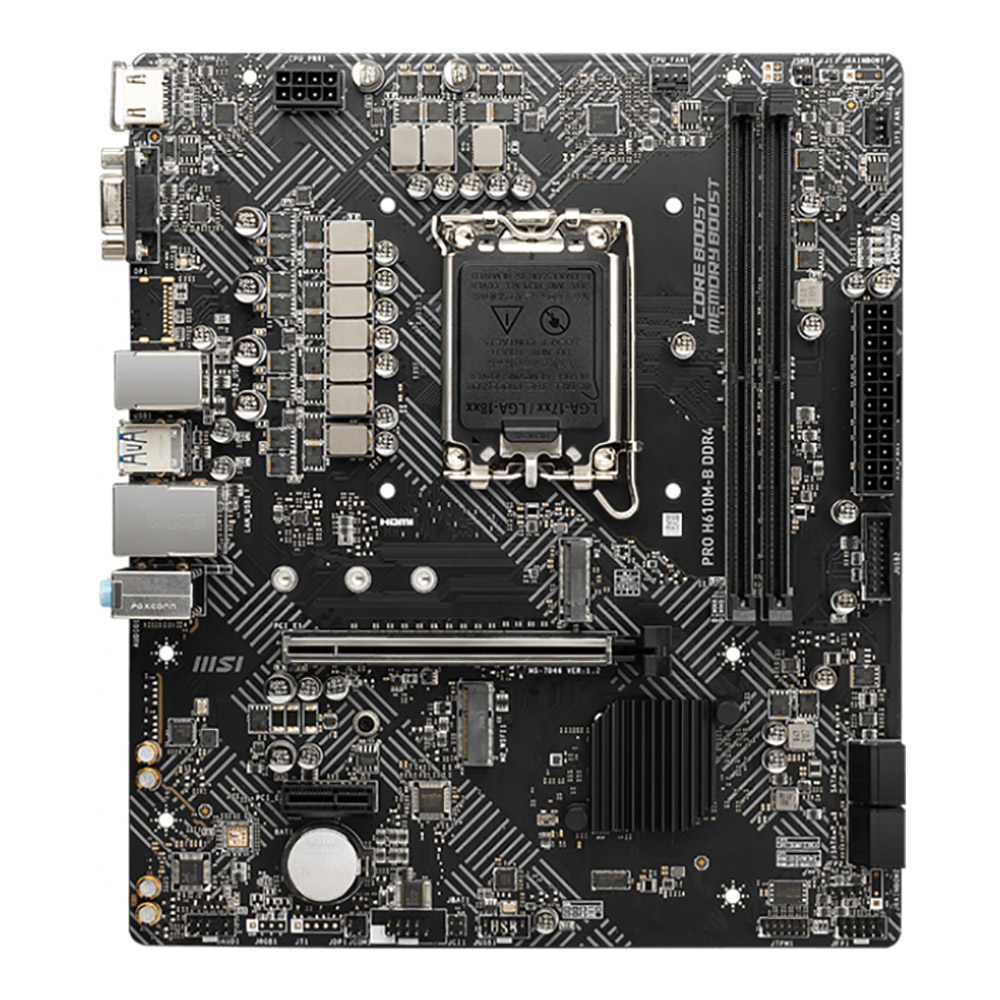

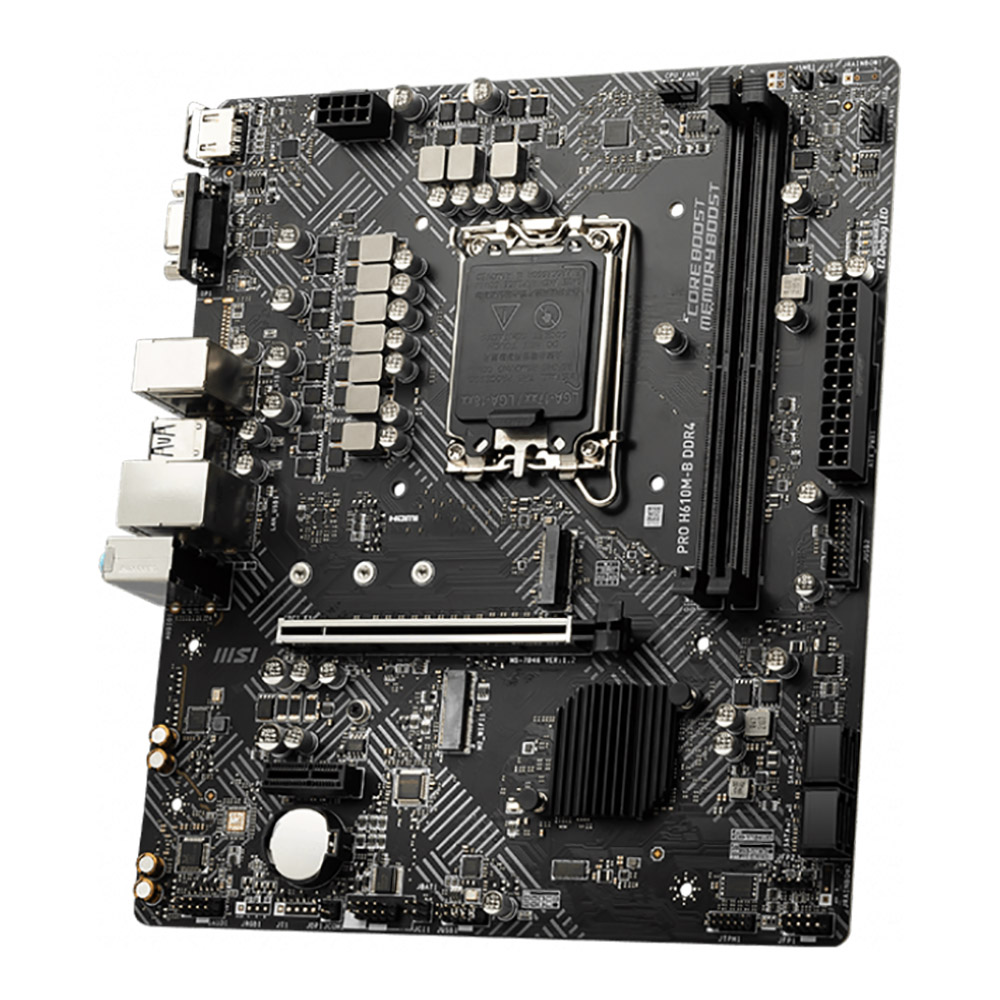

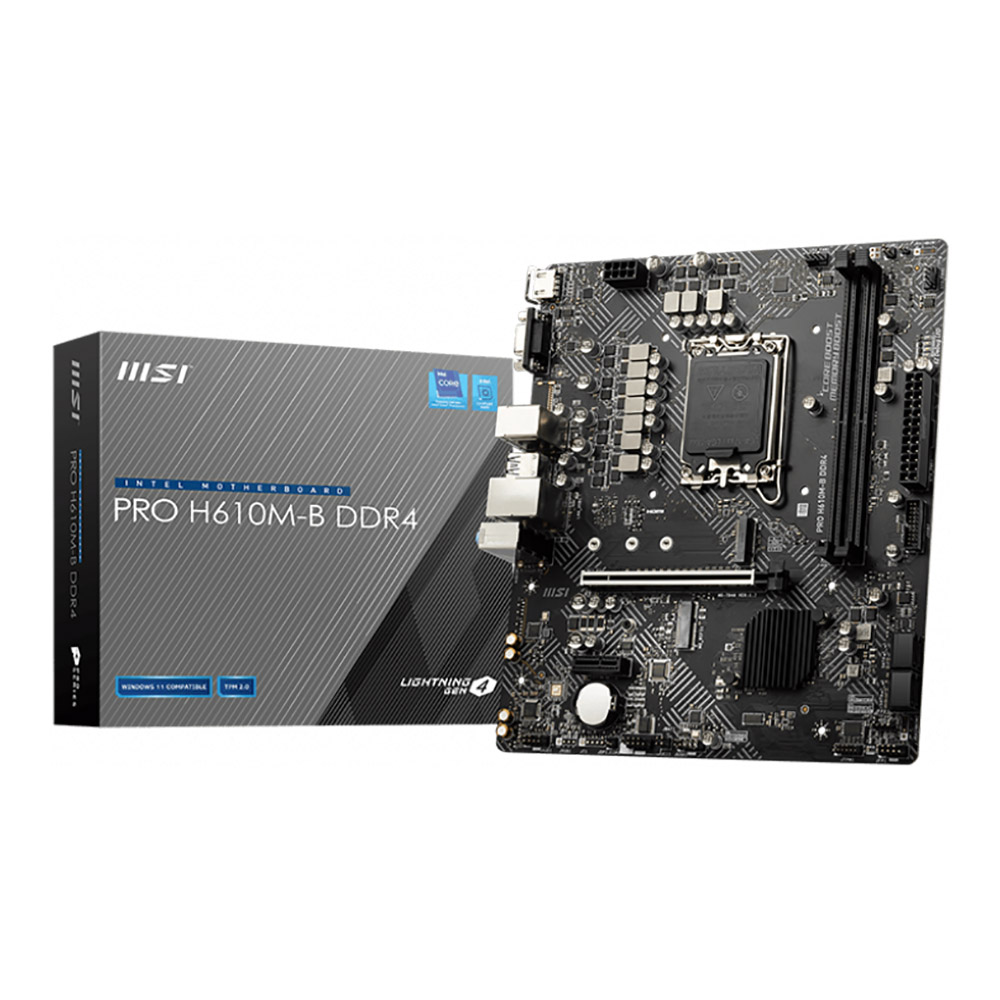

MAINBOARD (เมนบอร์ด) MSI PRO H610M-B DDR4 (SOCKET LGA 1700) (MICRO-ATX)

MAINBOARD (เมนบอร์ด) MSI PRO H610M-B DDR4 (SOCKET LGA 1700) (MICRO-ATX)

รายละเอียดสินค้าโดยย่อ

• Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors
• Intel H610
• DDR4, 2 x DIMM
• 1 x HDMI
• 1 x D-Sub
• 4 x SATA 6Gb/s ports
• 1 x M.2 slot
• 4 x USB 3.2 Gen 1 Type-A (2 x rear, 2 x front)
• 6 x USB 2.0 Type-A (4 x rear, 2 x front)
• 1 x PS/2

MAINBOARD (เมนบอร์ด) MSI PRO H610M-B DDR4 (SOCKET LGA 1700) (MICRO-ATX)
(#0201038439)

รับประกัน 3 - y
ราคา
บาท
2,390
ราคาล่าสุดเมื่อ 2023-10-26
ส่งฟรี
คุณสมบัติ
model
Brand
MSI
Model
PRO H610M-B DDR4
CPU
Socket
1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh)
Wattage
150W
Chipset
Intel H610
Series
Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
memory
Slot
2
Memory Type
DDR4
Max. Capacity
64 GB
Speed
2133 , 2666 , 2933 , 3200 , 3200 (OC)
Graphic & Audio
Graphic
Requires a CPU with Integrated Graphics.
—
• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz (1 / 2)
• 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz (1 / 2)
—
1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.
Audio
Realtek ALC892/ ALC897
7.1-Channel High Definition Audio
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
No
M.2
• 1 x M.2 slot (Key M, from chipset)
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel Smart Response Technology for Intel Core processors
—
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot Port
expansion slots
Details
• 1 x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
—
• 1 x PCIe x1 slot
- Supports PCIe 3.0 x1
—
• 1 x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
Slot
1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot
network
LAN
Intel I219V
LAN Speed
10/100/1000 Mbps
Wireless
No

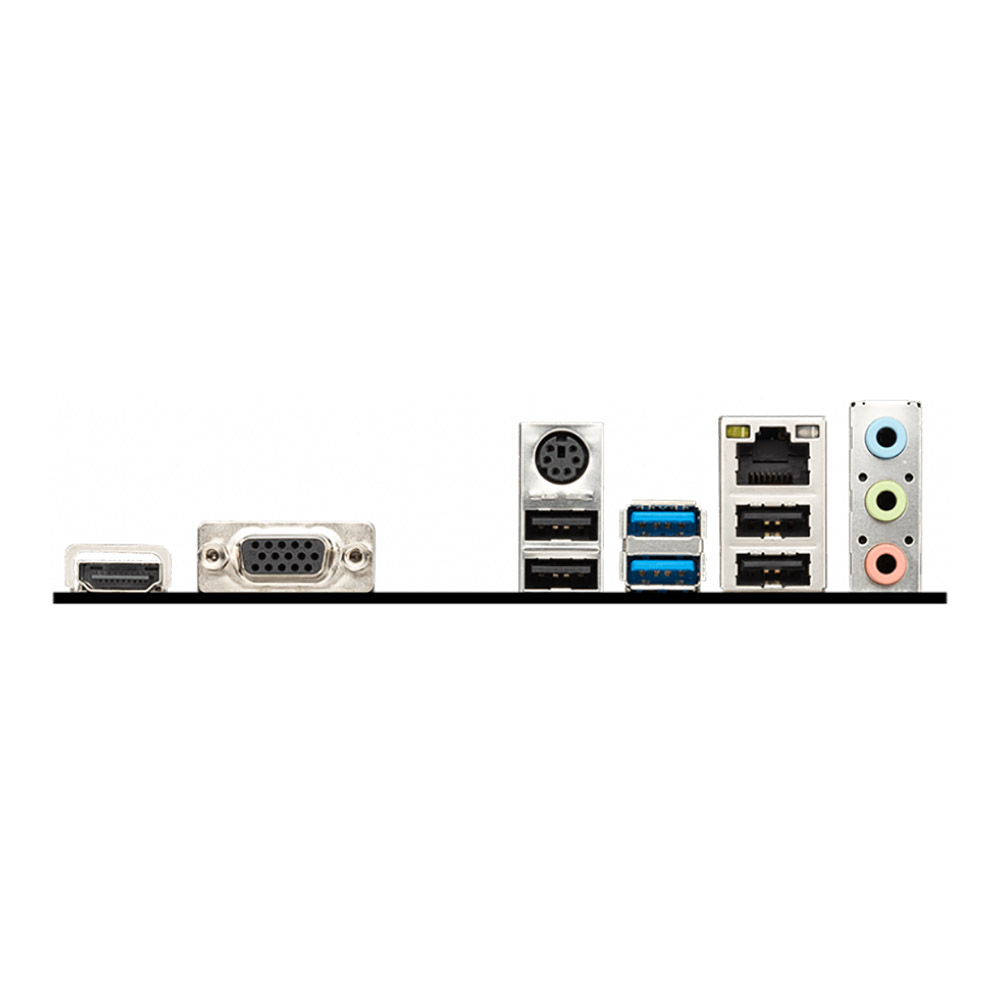

Back Panel I/O Ports
USB 2.0
4 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
2 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)
1 Port
DVI
- Port
HDMI
1 Port
DisplayPort
- Port
Audio
3 Port
PS/2
1 (Keyboard/Mouse combo) Port
Additional
No
LAN
1 Port
Form Factor
Form Factor
Micro-ATX
Power Connector
24 + 8 Pin
Dimension
24.4 + 21.1 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า



EZ DEBUG LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.







LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.







FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.







LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.







EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.



Source : MSI PRO H610M-B DDR4
