หน้าแรก คอมพิวเตอร์ฮาร์ดแวร์ เมนบอร์ด Intel LGA 1700 : Item#: 3008527506 [ 21,997 view ]

MAINBOARD (เมนบอร์ด) NZXT N7 Z790 (WHITE) (DDR5) (SOCKET LGA 1700) (ATX)

MAINBOARD (เมนบอร์ด) NZXT N7 Z790 (WHITE) (DDR5) (SOCKET LGA 1700) (ATX)

รายละเอียดสินค้าโดยย่อ

• Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors
• DDR5
• Three M.2 connectors
• HDMI
• 2.5G LAN
• Wi-Fi 6E
• Bluetooth

MAINBOARD (เมนบอร์ด) NZXT N7 Z790 (WHITE) (DDR5) (SOCKET LGA 1700) (ATX)
(#3008527506)

รับประกัน 3 - y
ราคา
บาท
12,900
ราคาล่าสุดเมื่อ 2024-12-10
ส่งฟรี
คุณสมบัติ
model
Brand
NZXT
Model
N7 Z790
CPU
Socket
1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh)
Wattage
150W
Chipset
Intel Z790
Series
Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
memory
Slot
4
Memory Type
DDR5
Max. Capacity
128 GB
Speed
4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6400 (OC)
Graphic & Audio
Graphic
Integrated Graphics Processor (Depends on CPU)
Audio
Realtek ALC1220
8-Channel high-definition audio
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
RAID 0, 1, 10 for NVMe Storage
RAID 0, 1, 10 for SATA Storage
M.2
3 x M.2 Connector(s)
—
CPU
• 1 x M.2_1 Type 2242/2260/2280 (PCIe 4.0 ×4 mode)
—
Chipset
• 1 x M.2_2 Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode)
• 1 x M.2_3 Type 2242/2260/2280 (PCIe 4.0 ×4 & SATA 6Gb/s mode) Port
expansion slots
Details
No
Slot
1 x PCIe 5.0 x16 Slot , 2 x PCIe 3.0 x1 Slots , 2 x PCIe 4.0 x16 Slot
network
LAN
Realtek RTL8125BG
LAN Speed
100/1000/2500 Mbps
Wireless
Wi-Fi 6E (802.11ax)
Bluetooth 5.2

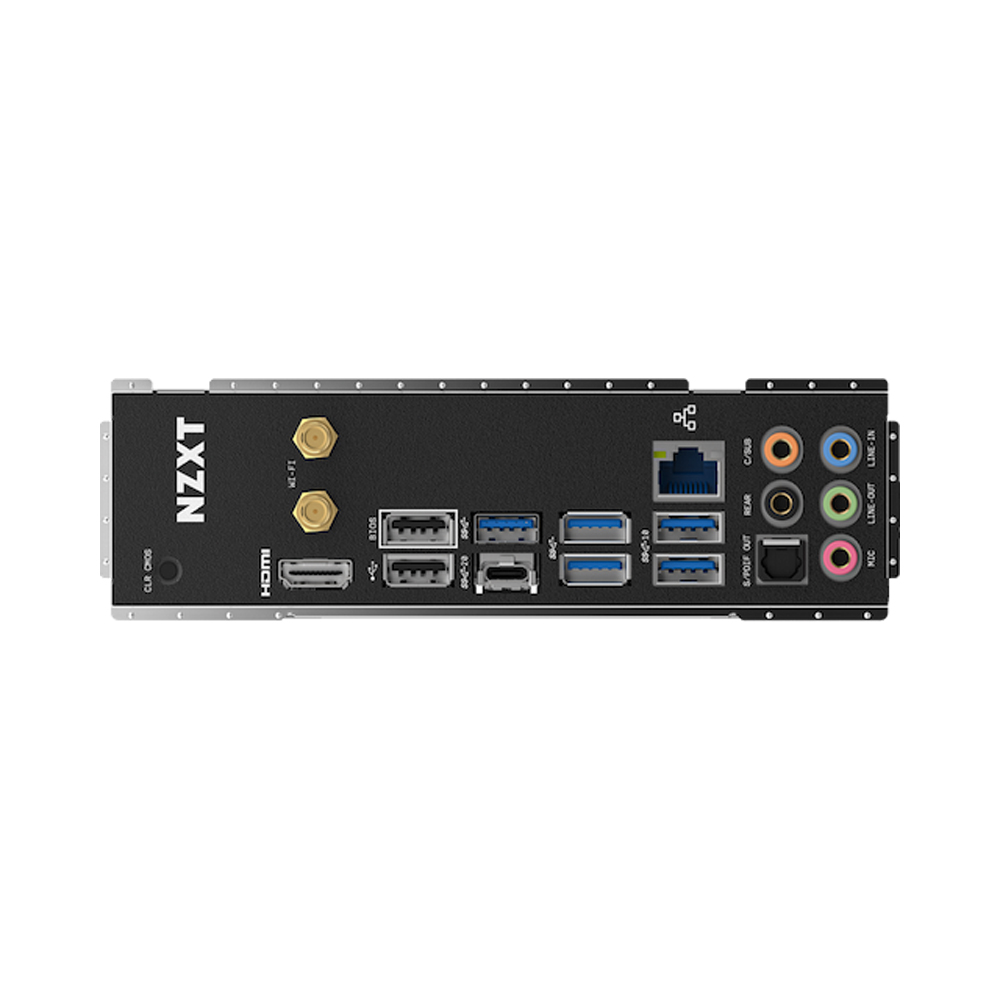

Back Panel I/O Ports
USB 2.0
2 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 2 Type-A
3 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
1 Port
DisplayPort
- Port
Audio
5 x Audio Jacks
1 x Optical S/PDIF Out Port
PS/2
No
Additional
No
LAN
1 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 4 + 8 Pin
Dimension
- cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.


• 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB
• Numerous presets and custom modes via NZXT CAM software
• Convenient fan profiles within NZXT CAM for seven independent fan channels
• Integrated rear I/O shield and efficient layout for optimal setup
• Compatible with Intel® 13th and 12th Generation Core™ i9, Core™ i7, Core™ i5 processors
• Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.2
• Three M.2 connectors for storage devices
• Supports memory overclocking speeds of up to 6000 MHz and Intel® XMP 3.0
• 8-channel high-definition audio



Source : NZXT N7 Z790
