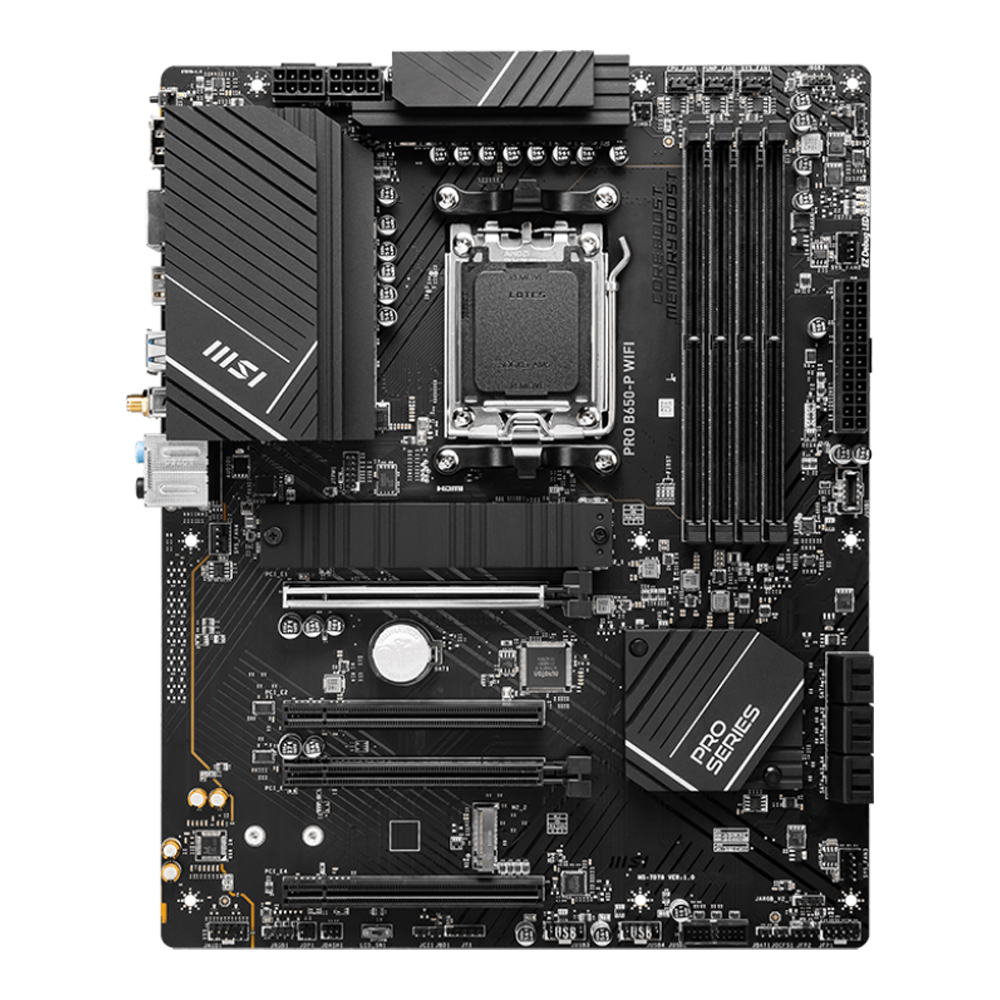

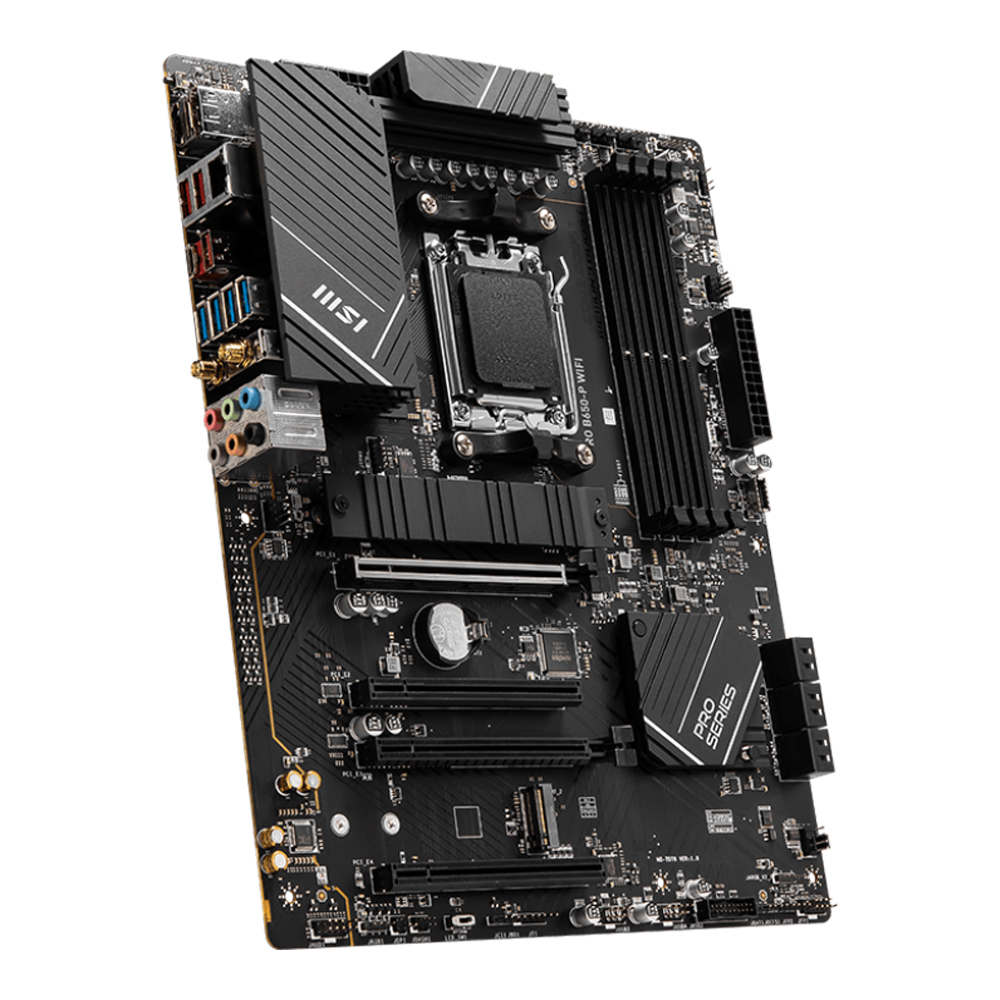

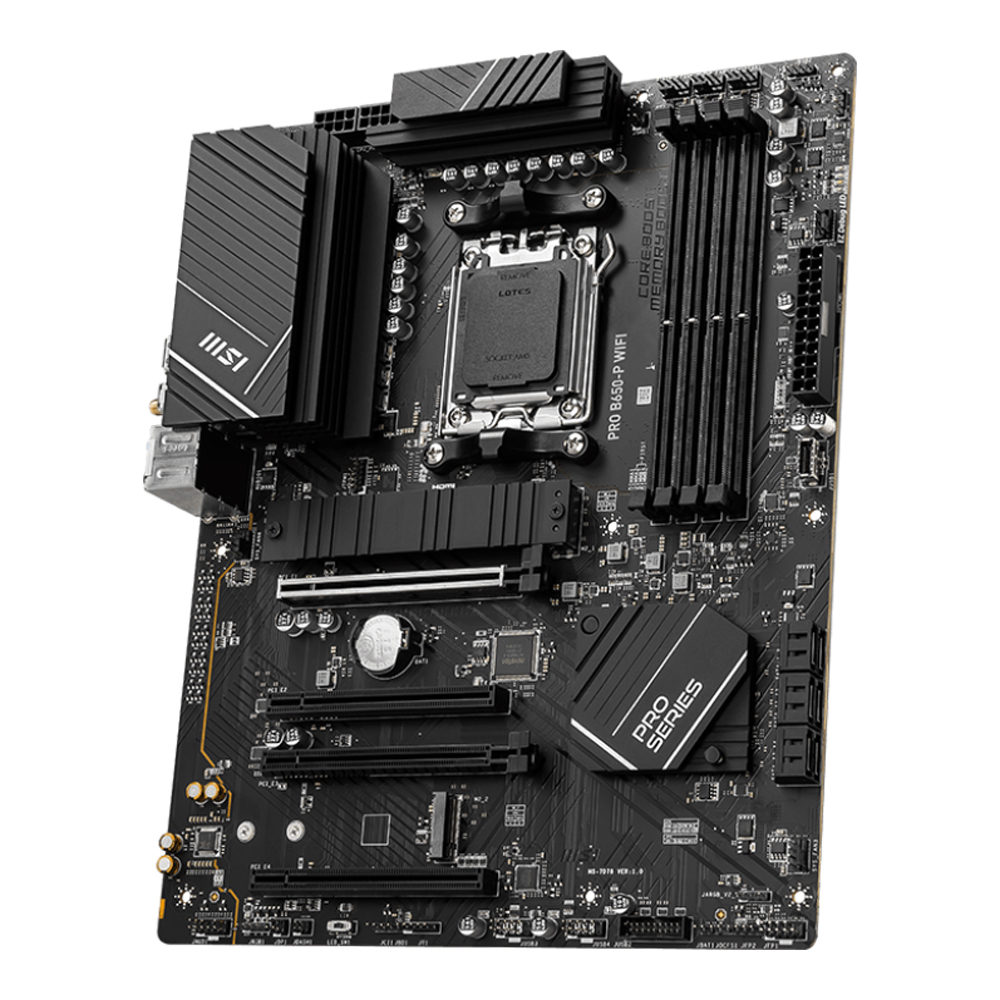

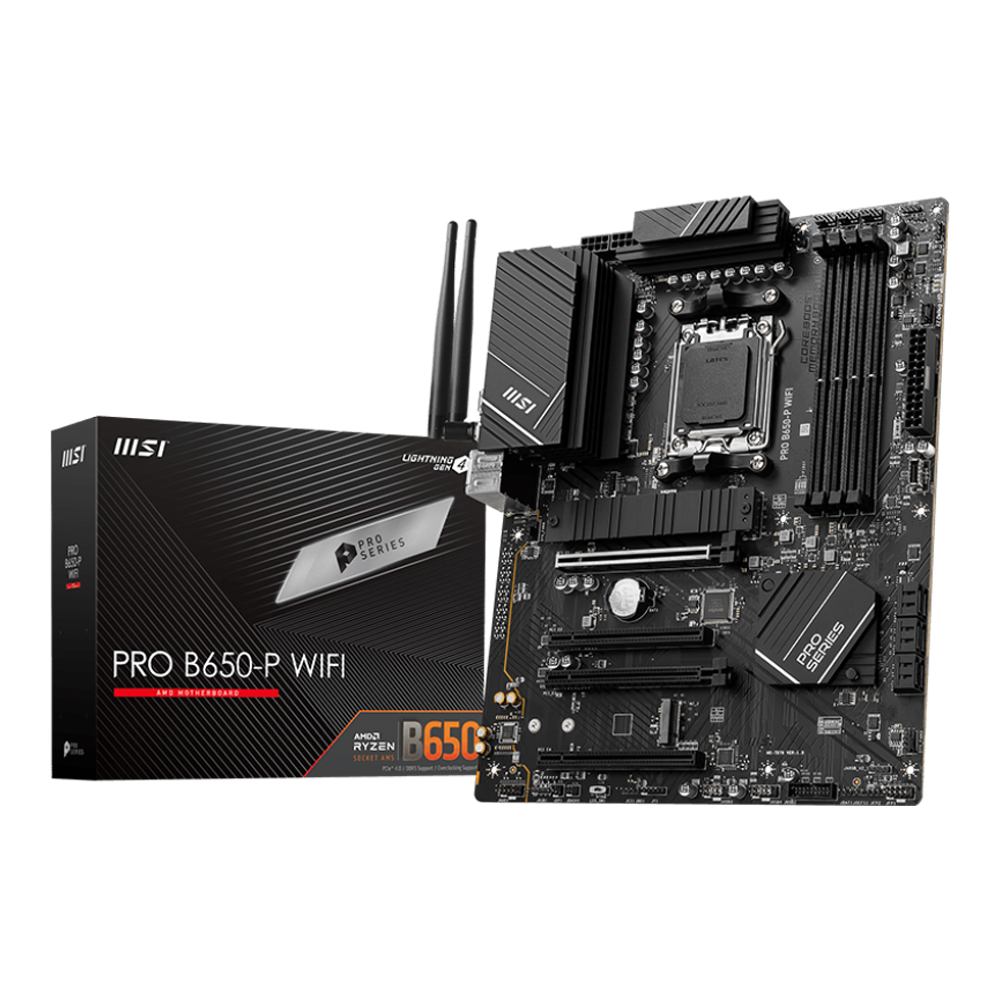

MAINBOARD (เมนบอร์ด) MSI PRO B650-P WIFI (DDR5) (SOCKET AM5) (ATX)

MAINBOARD (เมนบอร์ด) MSI PRO B650-P WIFI (DDR5) (SOCKET AM5) (ATX)

รายละเอียดสินค้าโดยย่อ

• Socket AM5 for AMD Ryzen 7000, 8000, 9000 Series Processors
• DDR5
• PCIe 4.0 slots
• Gen 4 x4 M.2
• USB 3.2 Gen 2x2 Type-C
• 2.5G LAN & Wi-Fi 6E

MAINBOARD (เมนบอร์ด) MSI PRO B650-P WIFI (DDR5) (SOCKET AM5) (ATX)
(#0201038661)

รับประกัน 3 - y
ราคา
บาท
8,690
ราคาล่าสุดเมื่อ 2023-09-21
ส่งฟรี
คุณสมบัติ
model
Brand
MSI
Model
PRO B650-P WIFI
CPU
Socket
AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge)
Wattage
170W
Chipset
AMD B650
Series
Ryzen 5 , Ryzen 7 , Ryzen 9
memory
Slot
4
Memory Type
DDR5
Max. Capacity
128 GB
Speed
4800 , 5000 (OC) , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC)
Graphic & Audio
Graphic
CPU with Integrated Graphics Required
—
• 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
• 1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio
Realtek ALC897
7.1-Channel High Definition Audio
Storage
SATA 2
- Port
SATA 3
6 Port
RAID
• Supports RAID 0 and RAID 1 for SATA storage devices*
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1~A4 do not support RAID function.
M.2
2 x M.2
—
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices Port
expansion slots
Details
4x PCI-E x16 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
—
• AMD MULTI-GPU Support
Slot
2 x PCIe 3.0 x16 Slots , 2 x PCIe 4.0 x16 Slot
network
LAN
Realtek 8125BG 2.5G LAN
LAN Speed
100/1000/2500 Mbps
Wireless
• AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

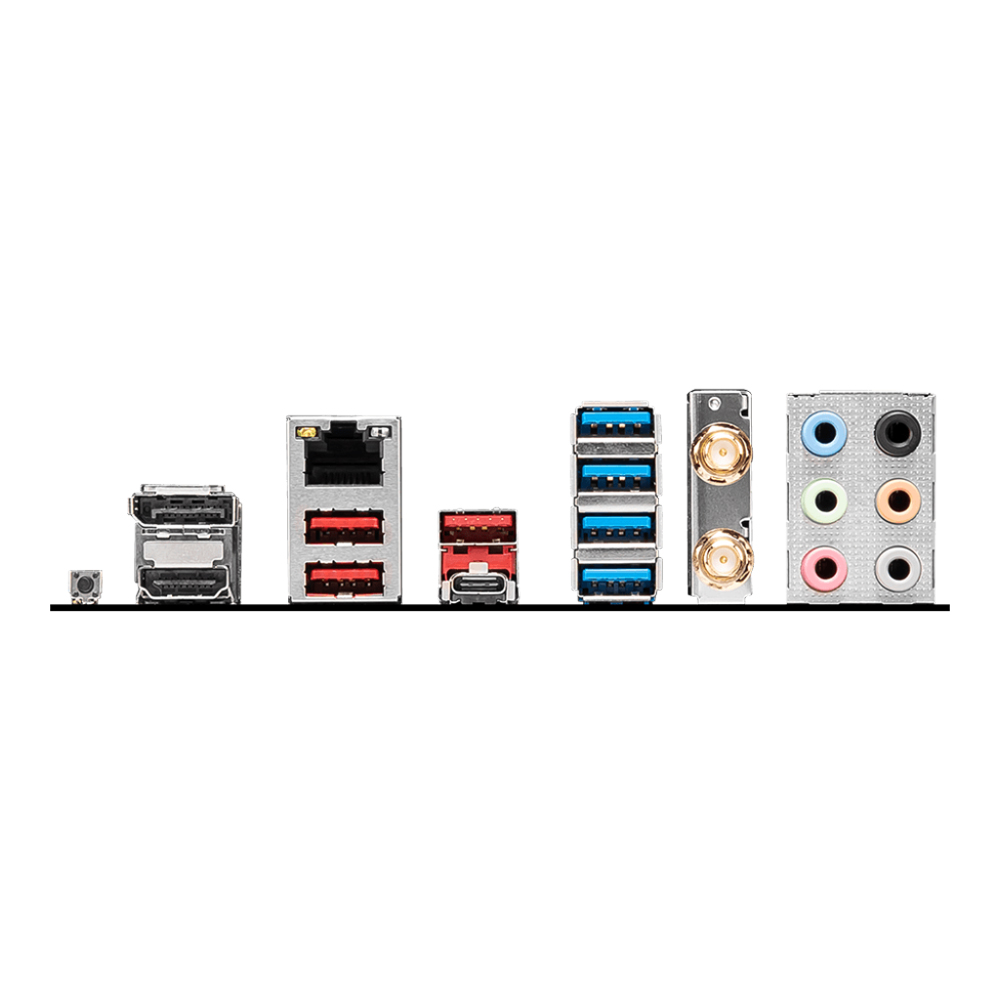

Back Panel I/O Ports
USB 2.0
- Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
3 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2x2 Type-C
4 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
1 Port
DisplayPort
1 Port
Audio
6 Port
PS/2
No
Additional
1 x Flash BIOS button
2 x Wi-Fi antenna connectors
LAN
1 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 8 + 8 Pin
Dimension
30.5 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

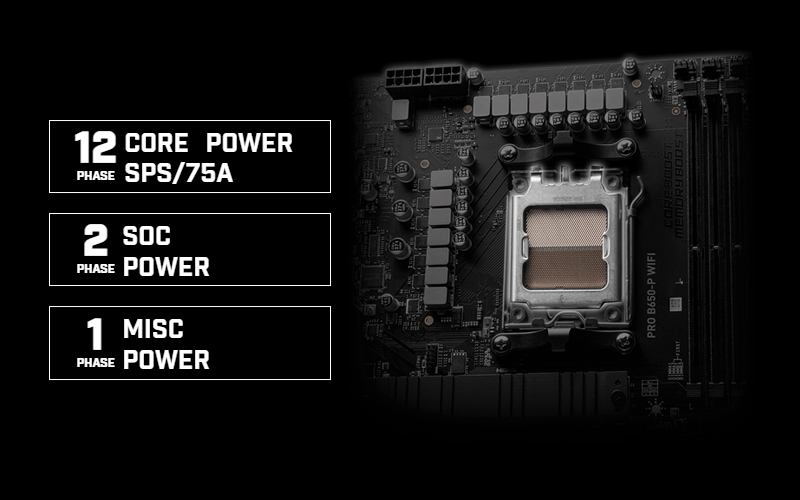

12+2+1 POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2 phases with 75A SPS. Combining dual power connectors and 75A Smart Power Stage, PRO B650-P WIFI is ready for the challenge of high-end processors.

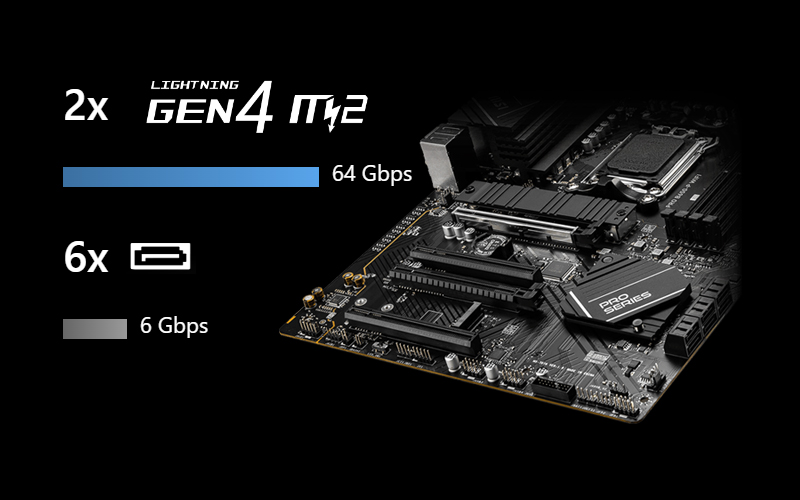

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

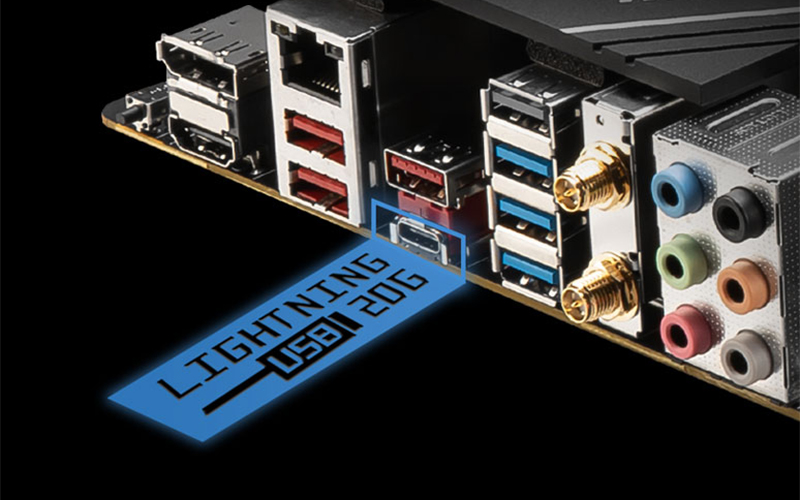

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G

Using USB 3.2 devices has never been faster! MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.







USB FRONT TYPE-C

MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

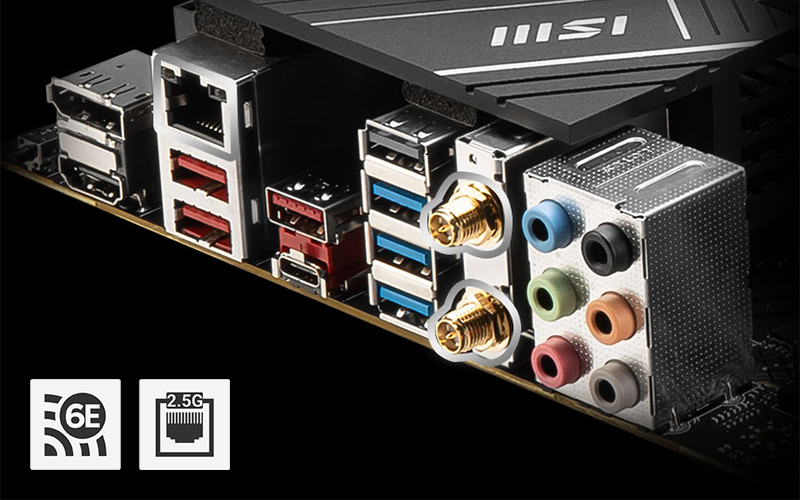

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E
• Bluetooth 5.2
• 2.5G LAN



Source : MSI PRO B650-P WIFI
