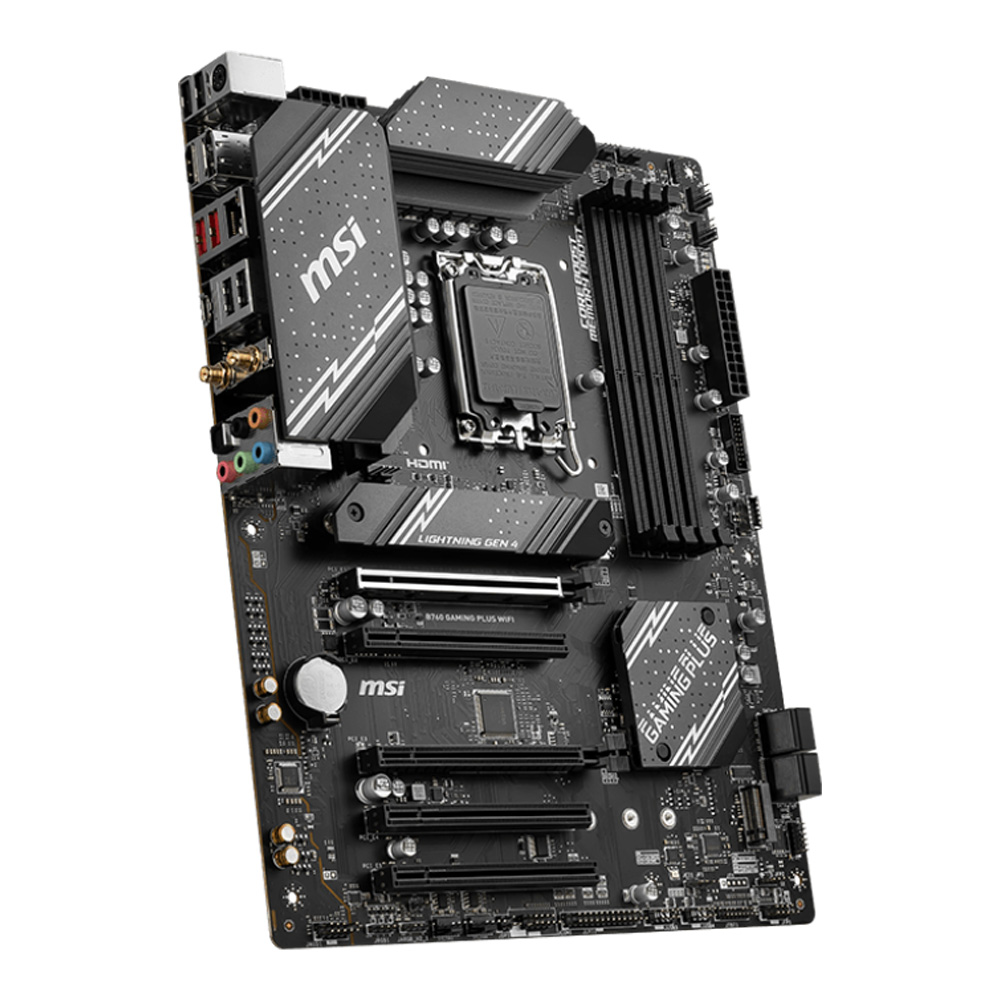

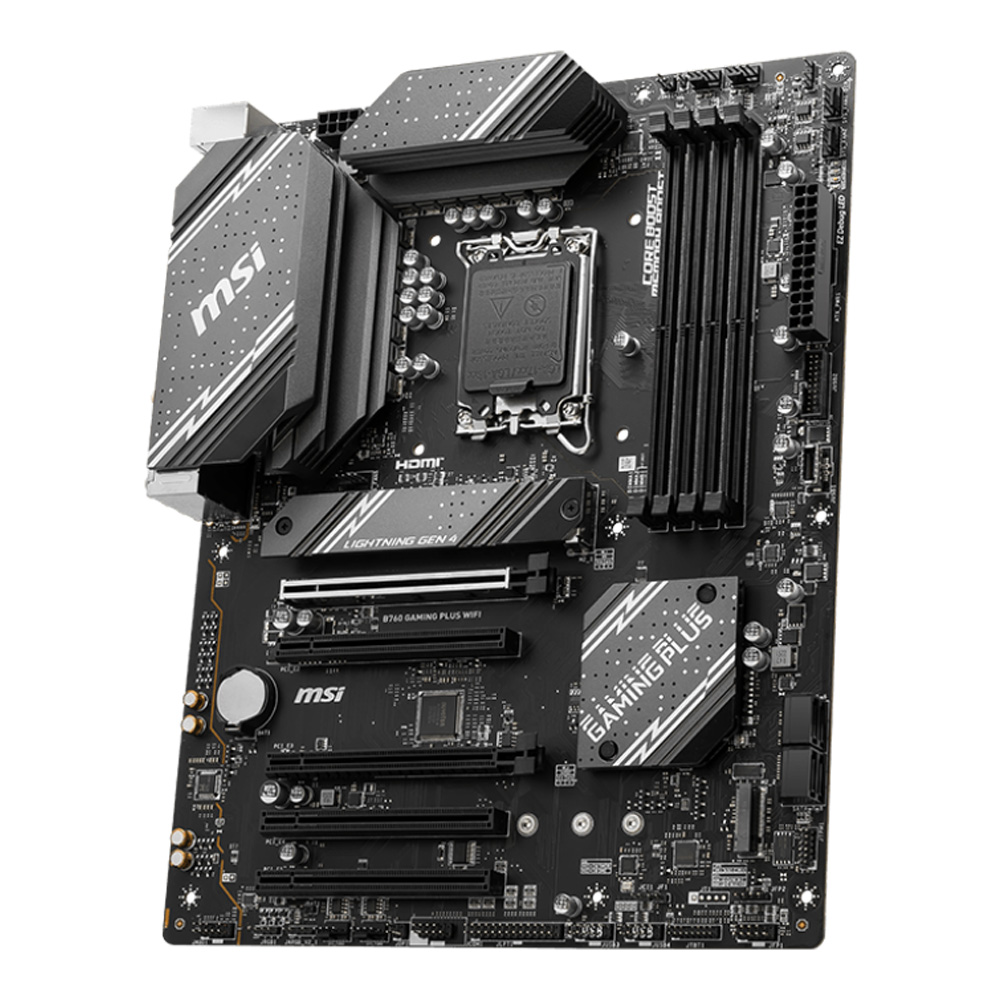

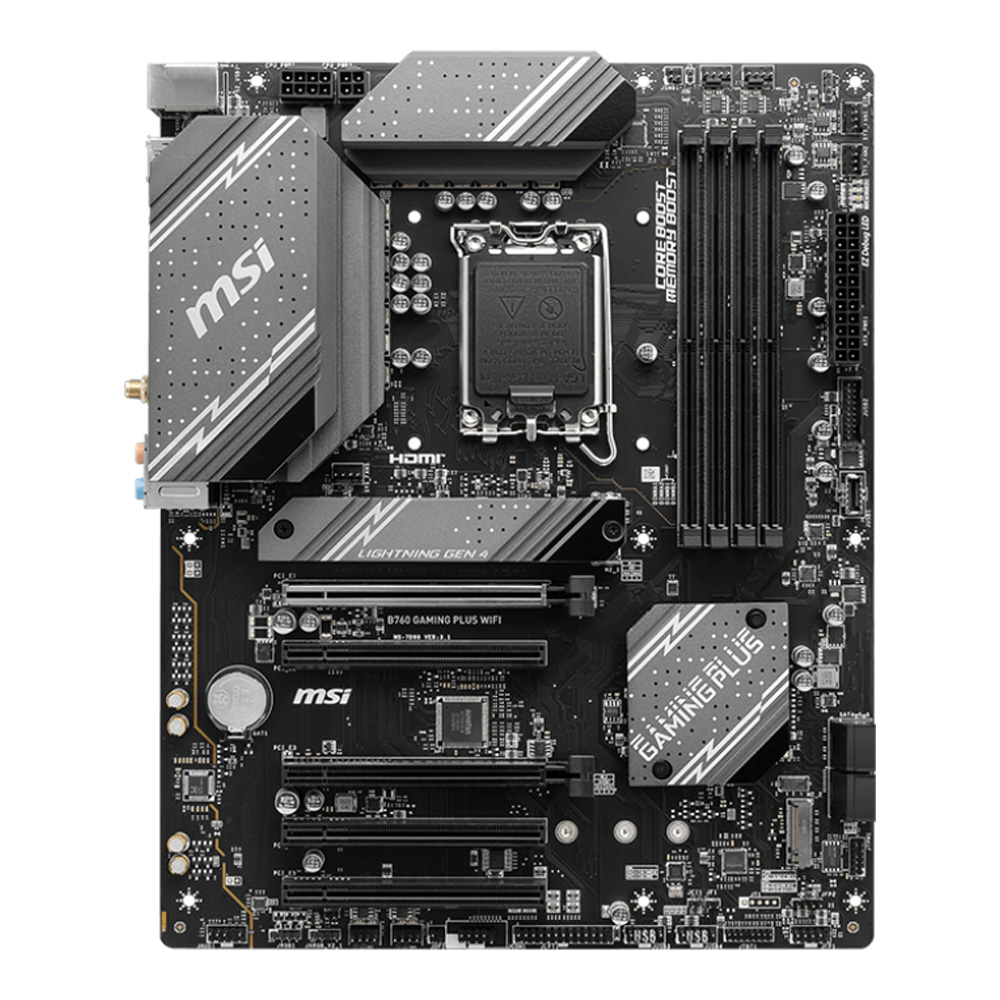

MAINBOARD (เมนบอร์ด) MSI B760 GAMING PLUS WIFI - INTEL SOCKET 1700 DDR5 ATX

MAINBOARD (เมนบอร์ด) MSI B760 GAMING PLUS WIFI - INTEL SOCKET 1700 DDR5 ATX

รายละเอียดสินค้าโดยย่อ

• Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors
• Intel B760
• 4 x DDR5
• 1 x HDMI
• 1 x DisplayPort
• 2 x M.2 slots & 4 x SATA 6Gb/s
• 1 x USB 3.2 Gen 1 Type-C front panel connector
• 1 x USB 3.2 Gen 2 10Gbps Type-C
• 1 x PS/2
• 2.5Gbps LAN
• Intel Wi-Fi 6E
• Bluetooth 5.3

MAINBOARD (เมนบอร์ด) MSI B760 GAMING PLUS WIFI - INTEL SOCKET 1700 DDR5 ATX
(#0201038697)

รับประกัน 3 - y
ราคา
บาท
3,990
ส่งฟรี
-
+
ซื้อเลย

0.65%
3 ด.
เดือนละ 1,355.94 .-
0.69%
3 ด.
เดือนละ 1,357.53 .-
0.79%
3 ด.
เดือนละ 1,361.52 .-
คุณสมบัติ
model
Brand
MSI
Model
B760 GAMING PLUS WIFI
CPU
Socket
1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh)
Wattage
150W
Chipset
Intel B760
Series
Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
memory
Slot
4
Memory Type
DDR5
Max. Capacity
192 GB
Speed
4800 , 5000 , 5000 (OC) , 5200 , 5200 (OC) , 5400 , 5400 (OC) , 5600 , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC)
Graphic & Audio
Graphic
Requires a CPU with Integrated Graphics.
—
• 1 x HDMI 2.1 port with HDR, supports a maximum resolution of 4K 60 Hz*/ **
• 1 x DisplayPort 1.4 with HBR2, supports a maximum resolution of 4K 60Hz * / **
—
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Audio
Realtek ALC897
7.1-Channel High Definition Audio
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
RAID 0, RAID 1, RAID 5, RAID 10 for SATA Storage Devices
M.2
2 x M.2 slots (Key M)
—
• M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
—
• M2_2 slot (From B760 chipset)
- Supports up to PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. Port
expansion slots
Details
• 5 x PCIe x16 slots
- PCI_E1 slot (From CPU) Supports up to PCIe 4.0 x16
- PCI_E2 slot (From B760 chipset) Supports up to PCIe 3.0 x1
- PCI_E3 slot (From B760 chipset) Supports PCIe 4.0 x4
- PCI_E4 slot (From B760 chipset) Supports PCIe 3.0 x1
- PCI_E5 slot (From B760 chipset) Supports PCIe 3.0 x1
Slot
2 x PCIe 4.0 x16 Slot , 3 x PCIe 3.0 x16 Slots
network
LAN
Realtek 8125BG 2.5Gbps LAN
LAN Speed
100/1000/2500 Mbps
Wireless
• Intel Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz)up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
—
• Supports Bluetooth 5.3**, FIPS, FISMA
—
* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.

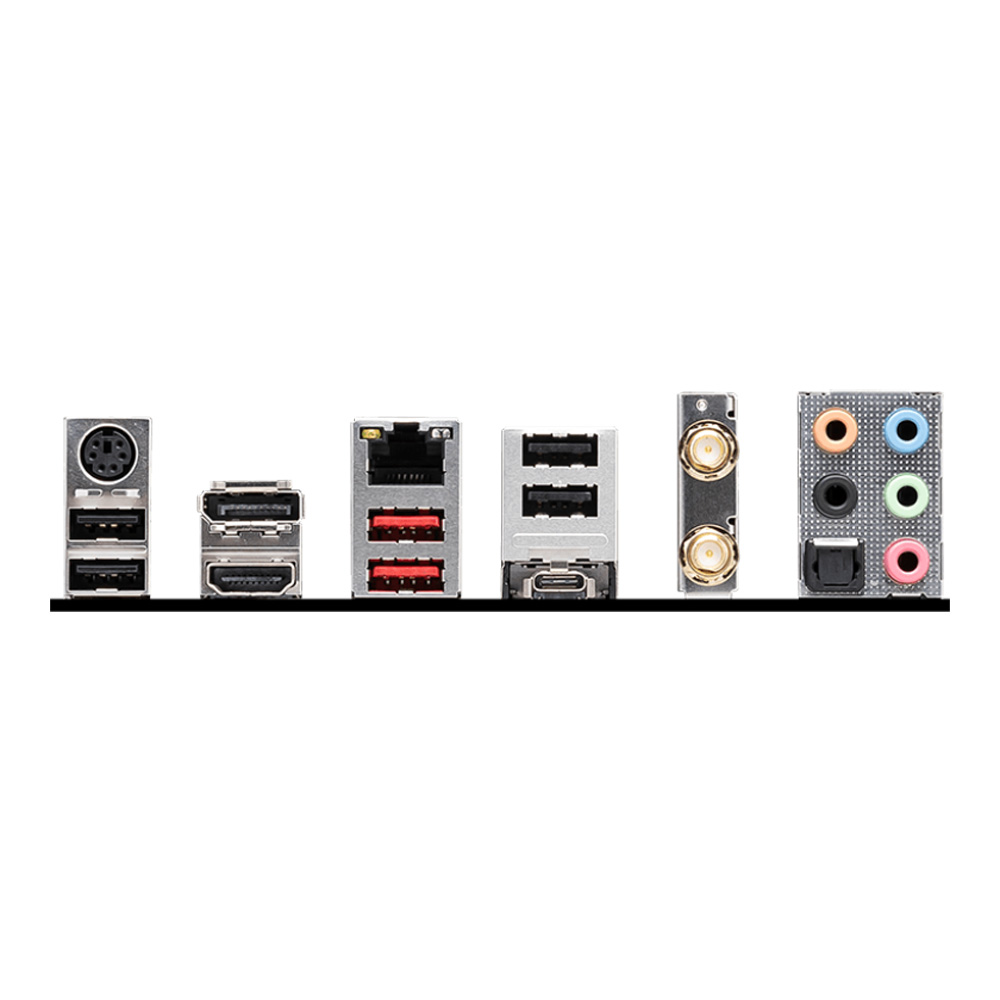

Back Panel I/O Ports
USB 2.0
4 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
2 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
1 Port
DisplayPort
1 Port
Audio
5 x Audio Jacks
1 x Optical S/PDIF Out Port
PS/2
1 (Keyboard/Mouse combo) Port
Additional

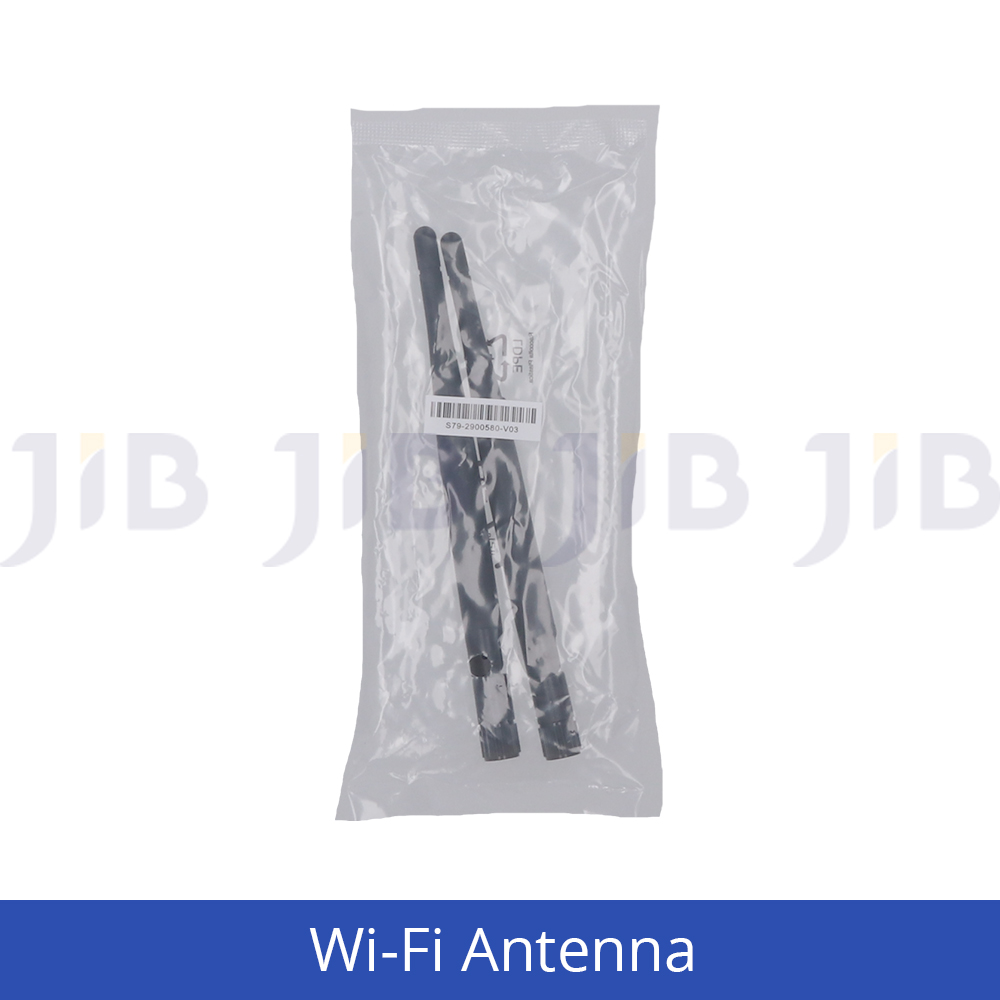

2 x Wi-Fi Antenna connectors
LAN
1 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 4 + 8 Pin
Dimension
30.5 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า



B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

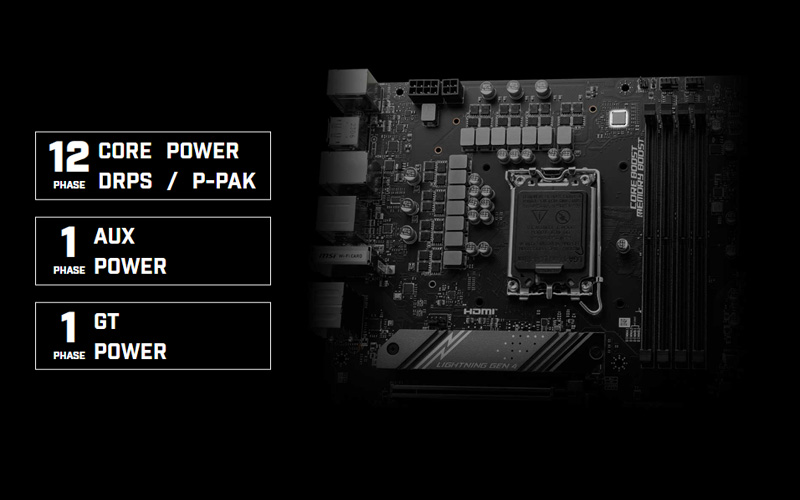

12+1+1 DUET RAIL POWER SYSTEM

Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760 GAMING PLUS WIFI is ready to sustain heavy daily work.

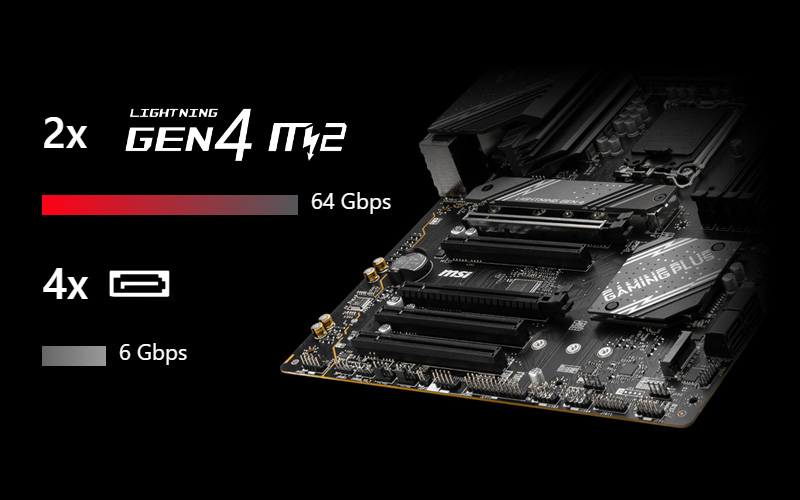

FAST AND FUTURE-READY STORAGE

B760 GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

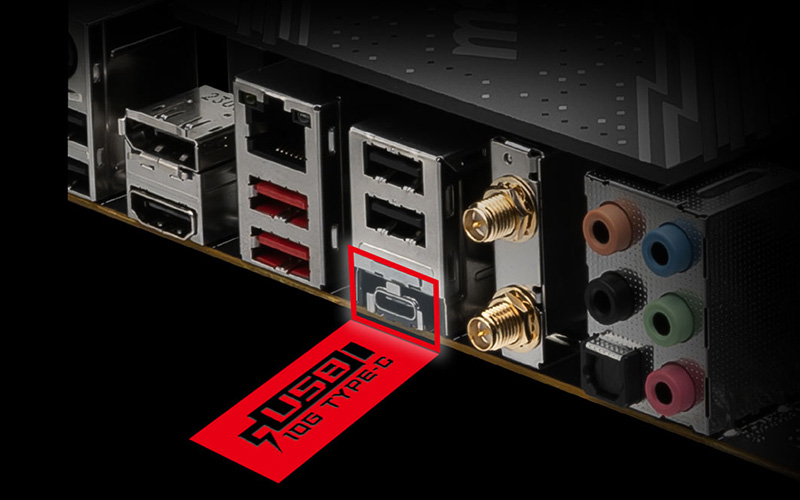

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2 10G

Using USB 3.2 devices has never been faster! B760 GAMING PLUS WIFI motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 10Gb/s when connecting the Rear USB Type-C.

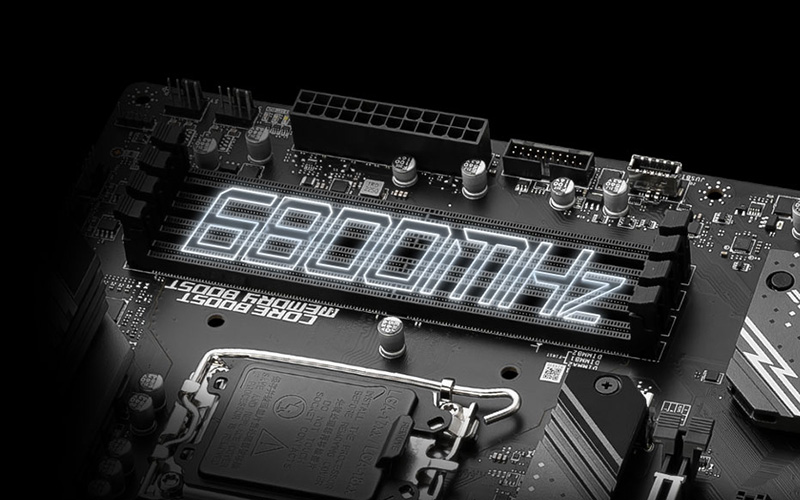

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760 GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.







HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E
• Bluetooth 5.3
• 2.5G LAN



Source : MSI B760 GAMING PLUS WIFI
