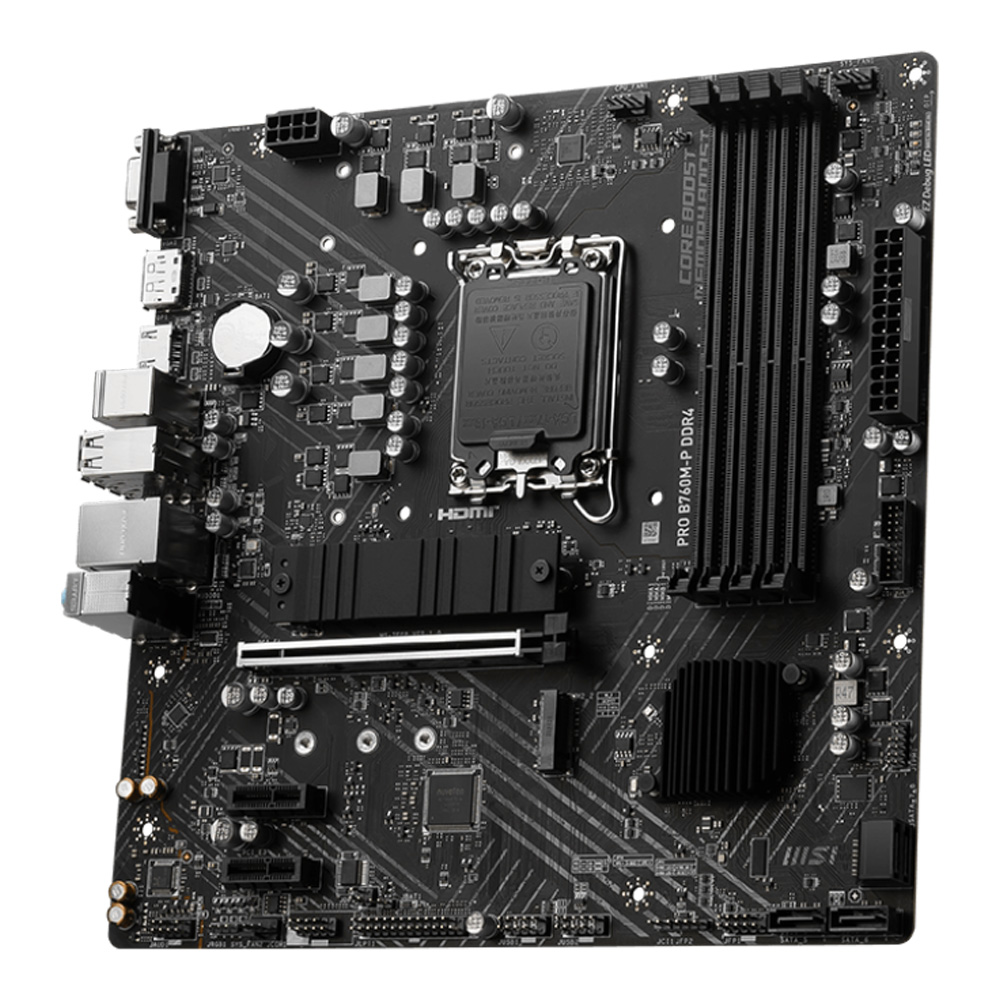

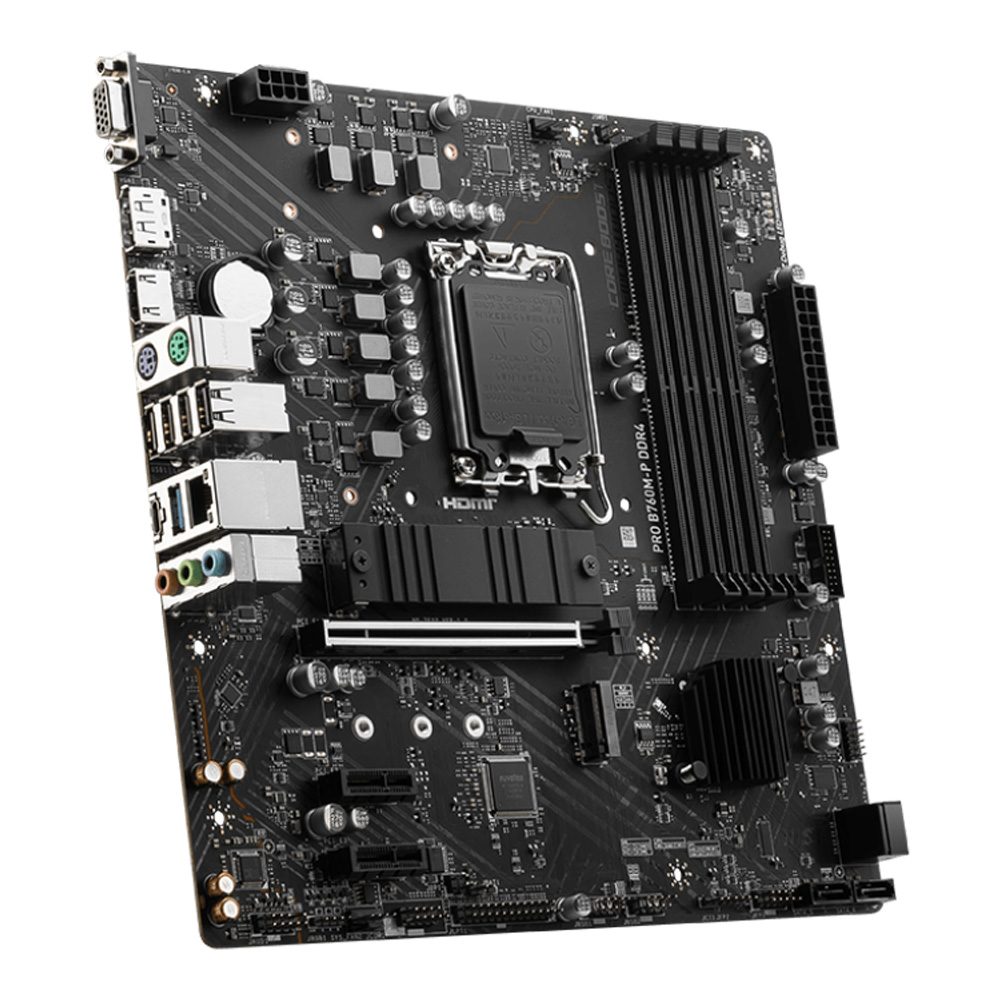

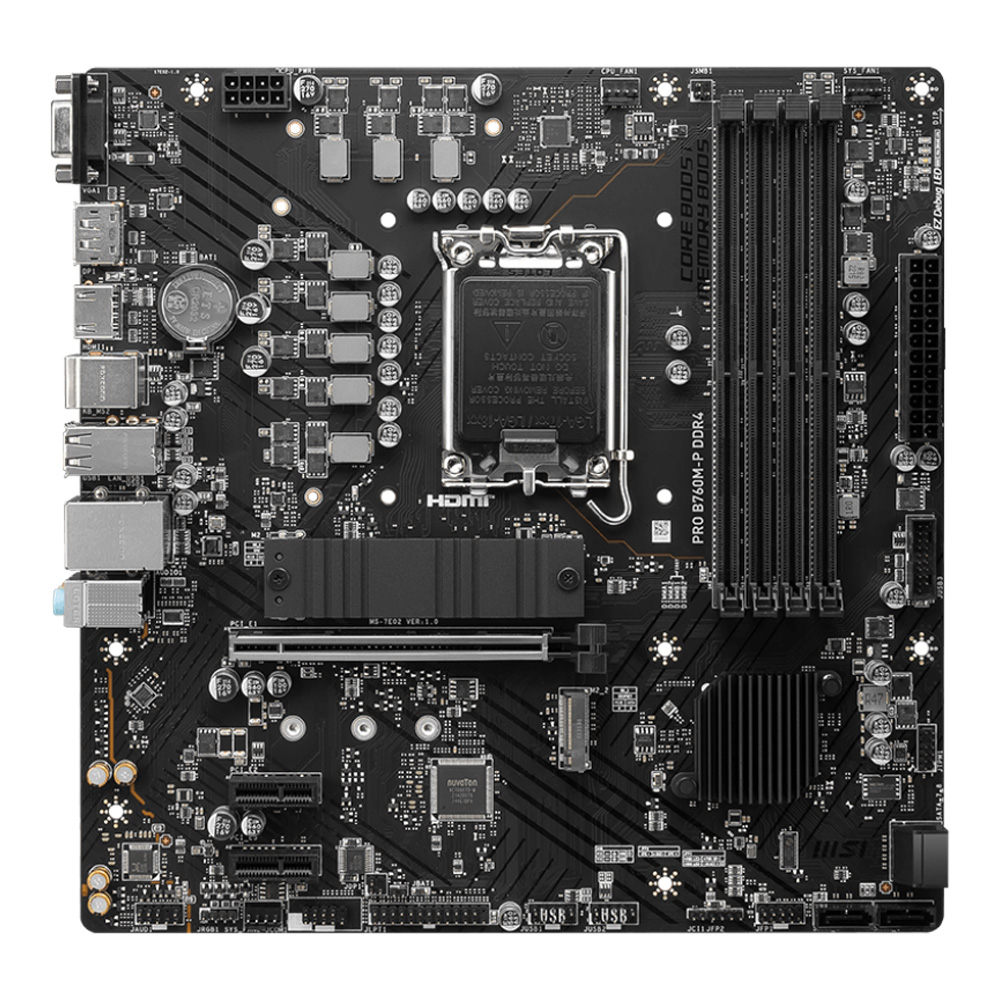

MAINBOARD (เมนบอร์ด) MSI PRO B760M-P DDR4 (SOCKET LGA 1700) (MICRO-ATX)

MAINBOARD (เมนบอร์ด) MSI PRO B760M-P DDR4 (SOCKET LGA 1700) (MICRO-ATX)

รายละเอียดสินค้าโดยย่อ

• Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors
• Intel B760
• DDR4, 4 x DIMM
• 1 x HDMI
• 1 x DisplayPort
• 1 x VGA
• 2 x M.2 slots & 4 x SATA 6Gb/s
• 1 x USB 3.2 Gen 1 Type-A front panel connector
• 1 x USB 3.2 Gen 2 Type-C
• 1Gbps LAN

MAINBOARD (เมนบอร์ด) MSI PRO B760M-P DDR4 (SOCKET LGA 1700) (MICRO-ATX)
(#0201038687)

รับประกัน 3 - y
ราคา
บาท
2,640
ส่งฟรี
-
+
ซื้อเลย

คุณสมบัติ
model
Brand
MSI
Model
PRO B760M-P DDR4
CPU
Socket
1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh)
Wattage
150W
Chipset
Intel B760
Series
Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
memory
Slot
4
Memory Type
DDR4
Max. Capacity
128 GB
Speed
2133 , 2400 , 2666 , 2933 , 3200 , 3200 (OC) , 3333 (OC) , 3400 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3800 (OC) , 4000 (OC) , 4200 (OC) , 4266 (OC) , 4400 (OC) , 4600 (OC) , 4800 (OC)
Graphic & Audio
Graphic
Requires a CPU with Integrated Graphics.
—
• 1 x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz*/**
—
• 1 x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz*/**
—
• 1 x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*/**
—
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Audio
Realtek ALC897
7.1-Channel High Definition Audio
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
RAID 0, RAID 1, RAID 5, RAID 10 for SATA Storage Devices
M.2
2 x M.2 slots (Key M)
—
• M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
—
• M2_2 slot* (From B760 chipset)
- Supports up to PCIe 4.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot
Port
expansion slots
Details
• 1 x PCIe x16 slot
- PCI_E1 slot (From CPU)
- Supports PCIe 4.0 x16
—
• 2 x PCIe x1 slots
- PCI_E2 & PCI_E3 slots (From B760 chipset)
- Support PCIe 4.0 x1
Slot
1 x PCIe 4.0 x16 Slot , 2 x PCIe 4.0 x1 Slot
network
LAN
Realtek RTL8111H
LAN Speed
10/100/1000 Mbps
Wireless
No

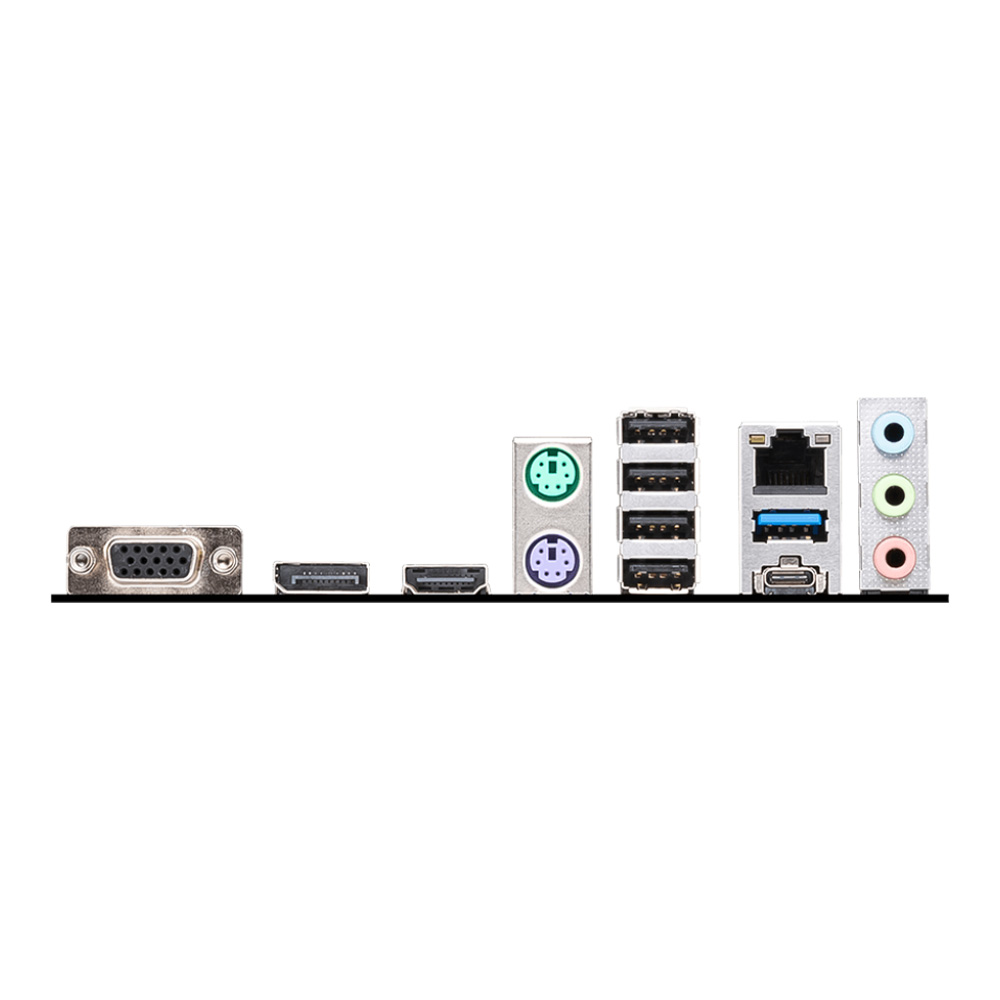

Back Panel I/O Ports
USB 2.0
4 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2 Type-C Port
D-Sub (VGA)
1 Port
DVI
- Port
HDMI
1 Port
DisplayPort
1 Port
Audio
3 Port
PS/2
2 Port
Additional
No
LAN
1 Port
Form Factor
Form Factor
Micro-ATX
Power Connector
24 + 8 Pin
Dimension
24.4 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

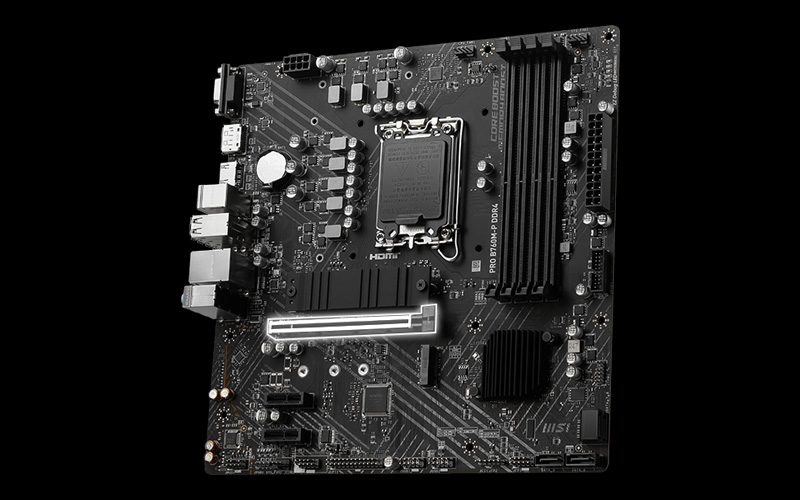

LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

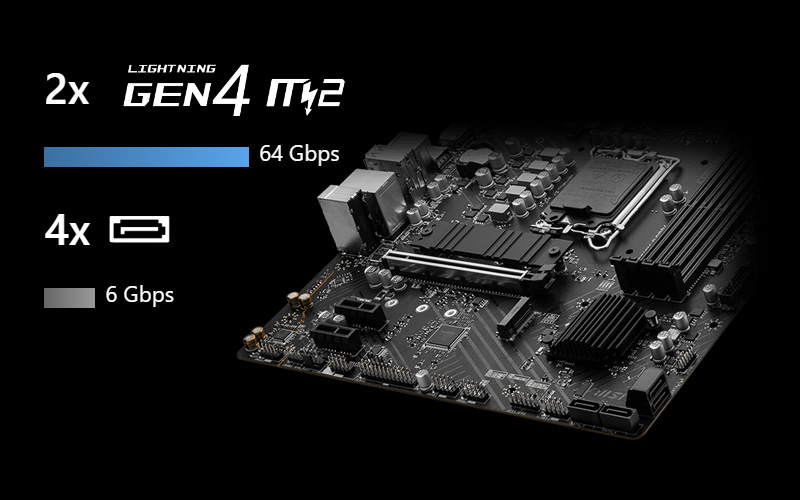

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

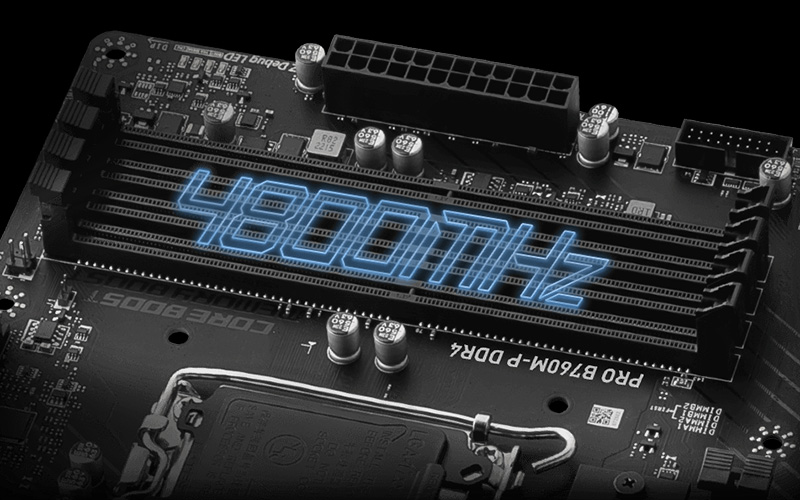

DDR4 MEMORY SOLUTION

With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.

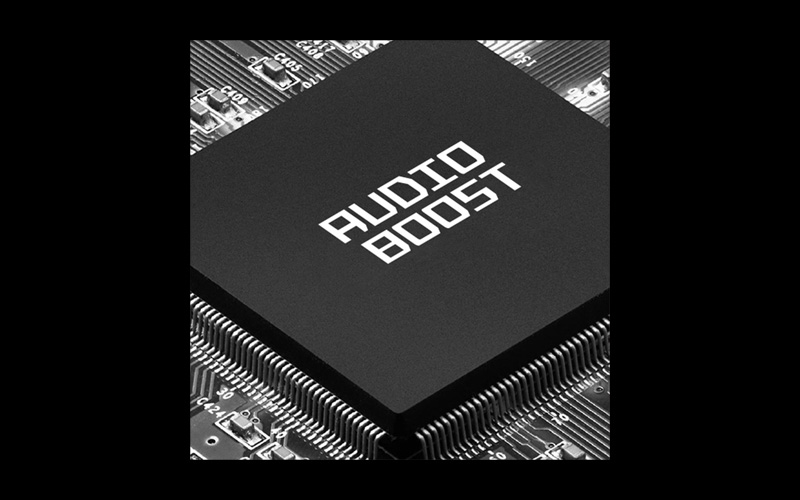

AUDIO BOOST

• High definition audio processor
• high quality audio capacitors
• high quality audio jacks
• isolated audio signal
• De-Pop protection

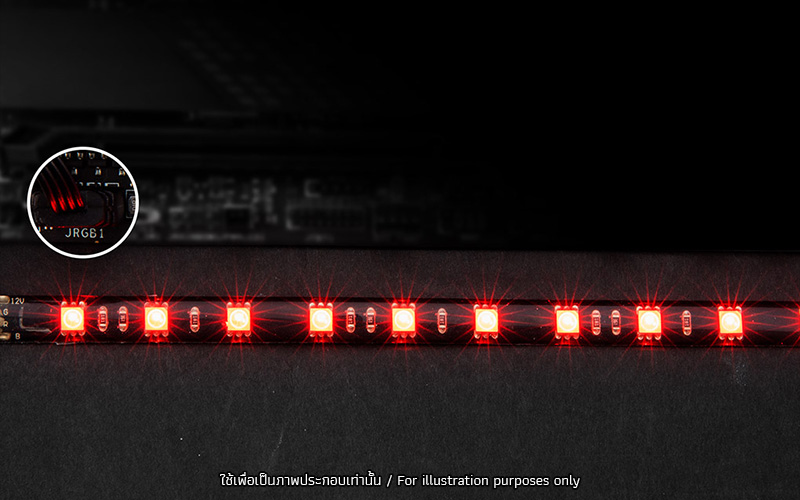

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

*RGB strips sold separately
