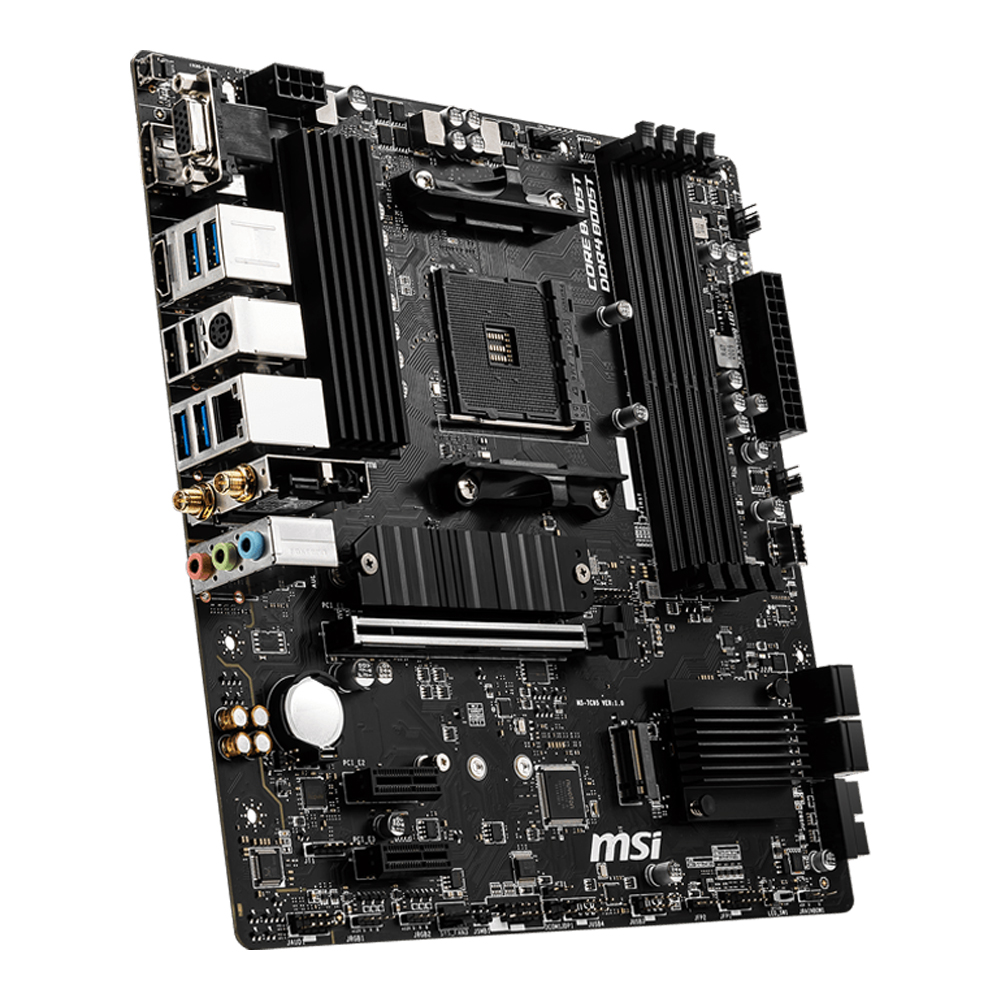

MAINBOARD (เมนบอร์ด) MSI B550M PRO-VDH WIFI - AMD SOCKET AM4 DDR4 MICRO-ATX

MAINBOARD (เมนบอร์ด) MSI B550M PRO-VDH WIFI - AMD SOCKET AM4 DDR4 MICRO-ATX

รายละเอียดสินค้าโดยย่อ

• Supports AMD Ryzen 5000 / 5000 G / 3000 / 4000 G-Series processors
• AMD B550
• DDR4, 4 x DIMM
• 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
• 2 x M.2 slots
• 4 x SATA 6Gb/s ports
• 4 x USB 3.2 Gen 1 Type-A
• 1 x PS/2
• Gigabit LAN
• Wi-Fi 5
• Bluetooth 2.1
• NOT Compatible with AMD Ryzen 3 3200G & Ryzen 5 3400G

MAINBOARD (เมนบอร์ด) MSI B550M PRO-VDH WIFI - AMD SOCKET AM4 DDR4 MICRO-ATX
(#1007000003)

รับประกัน 3 - y
ราคา
บาท
2,890
ส่งฟรี
-
+
ซื้อเลย

คุณสมบัติ
model
Brand
MSI
Model
B550M PRO-VDH WIFI
CPU
Socket
AM4 (3000 Series - Matisse) , AM4 (4000 G-Series - Renoir) , AM4 (4000 Series - Renoir) , AM4 (5000 G-Series - Cezanne) , AM4 (5000 Series - Vermeer / Cezanne)
Wattage
105W
Chipset
AMD B550
Series
Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
memory
Slot
4
Memory Type
DDR4
Max. Capacity
128 GB
Speed
1866 , 2133 , 2400 , 2666 , 2666 (OC) , 2800 , 2800 (OC) , 2933 , 2933 (OC) , 3000 , 3000 (OC) , 3066 , 3066(OC) , 3200 , 3200 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3866 (OC) , 4000 (OC) , 4133 (OC) , 4266 (OC) , 4400 (OC)
Graphic & Audio
Graphic
Requires a CPU with Integrated Graphics.
—
• 1 x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz (1)
• 1 x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz (1)
• 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz (1 2)
—
Support HDCP 1.4 & 2.3
Maximum shared memory of 16 GB
1. Available for the processor with integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.
Audio
Realtek ALC892/ALC897
7.1-Channel High Definition Audio
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
RAID 0, RAID 1, RAID 10 for SATA storage devices
RAID 0, RAID 1 for PCIe / NVMe storage devices
M.2
2 x M.2 slots (Key M)
—
• M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4 (1)
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
—
• M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0x4
- Supports 2242/ 2260/ 2280 storage devices
—
1. The supported specification depends on installed processor. Port
expansion slots
Details
• 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) (1)
• 2 x PCIe 3.0 x1 slots
—
1. The supported specification depends on installed processor.
Slot
1 x PCIe 4.0 x16 Slot , 2 x PCIe 3.0 x1 Slots
network
LAN
Realtek 8111HN Gigabit LAN
LAN Speed
100/1000 Mbps
Wireless
• Wi-Fi AC
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
- Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2

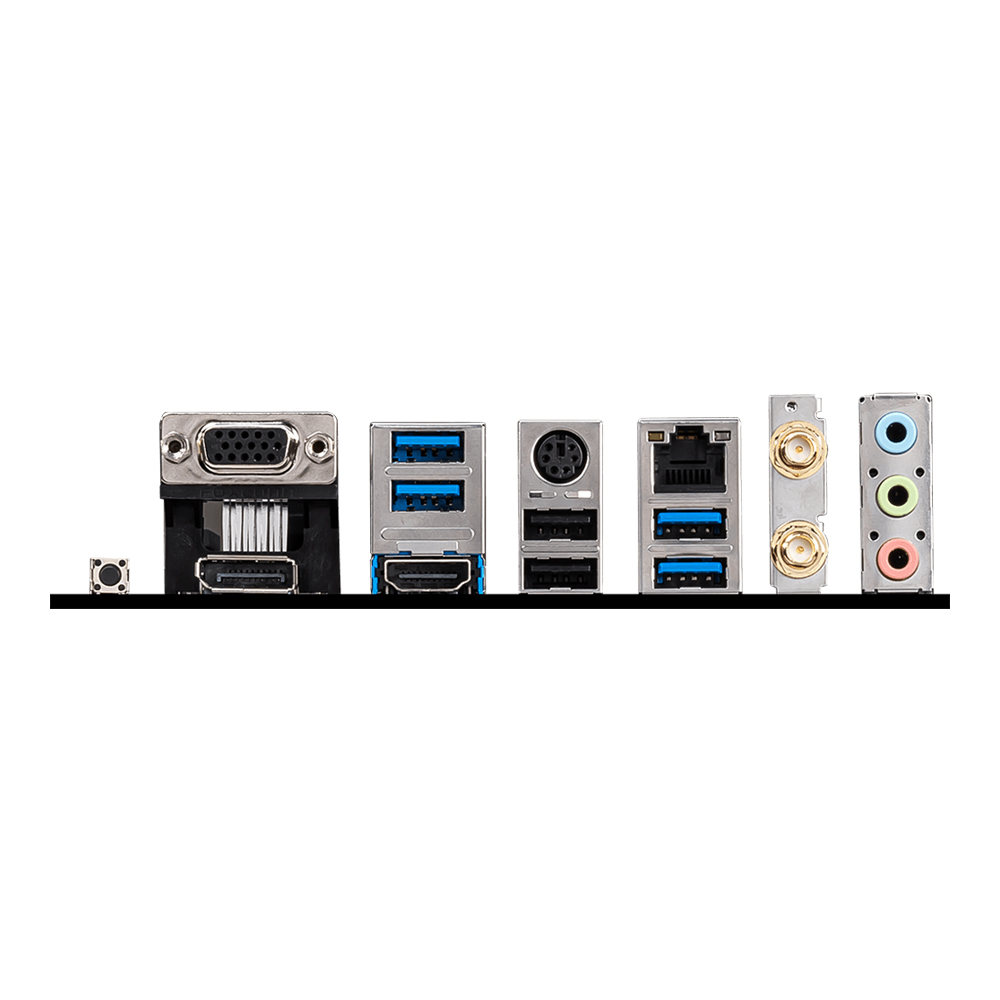

Back Panel I/O Ports
USB 2.0
2 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
4 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)
1 Port
DVI
- Port
HDMI
1 Port
DisplayPort
1 Port
Audio
3 Port
PS/2
1 (Keyboard/Mouse combo) Port
Additional
1 x Flash BIOS Button
2 x Wi-Fi Antenna connectors
LAN
1 Port
Form Factor
Form Factor
Micro-ATX
Power Connector
24 + 8 Pin
Dimension
24.4 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า



M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

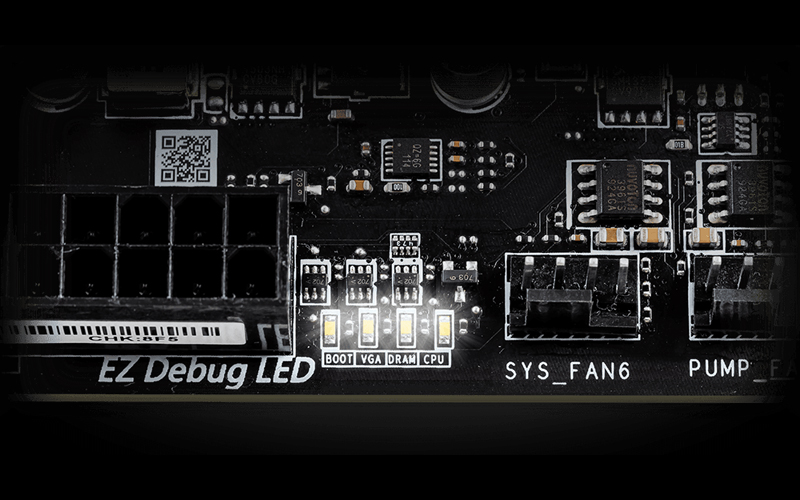

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

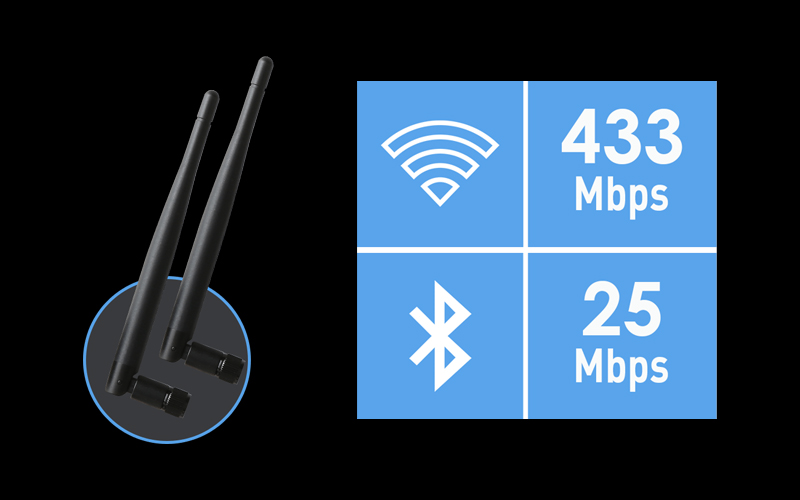

WI-FI AC & BLUETOOTH

This Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.

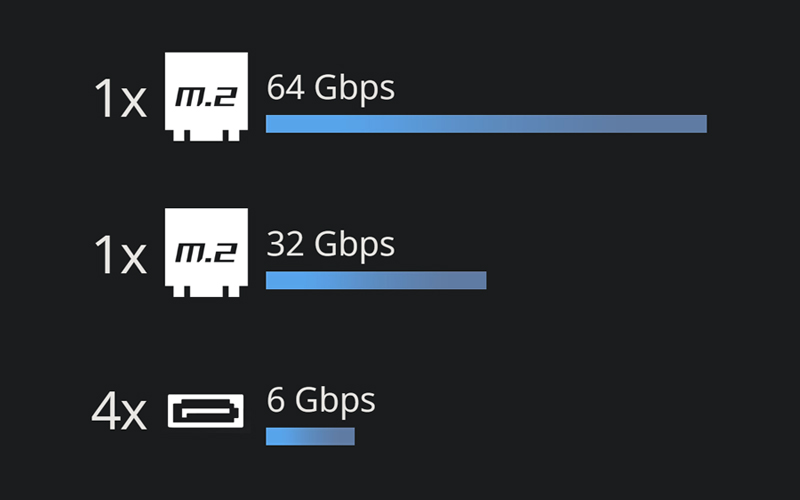

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

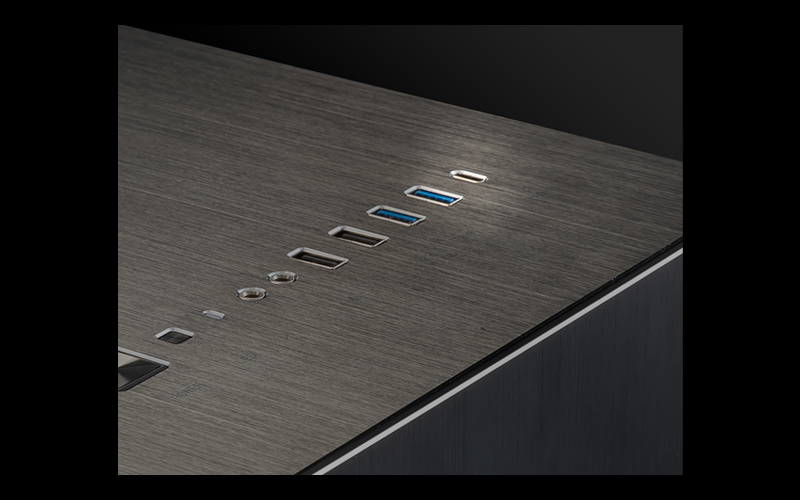

USB FRONT TYPE-C

MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.



Source : MSI B550M PRO-VDH WIFI
