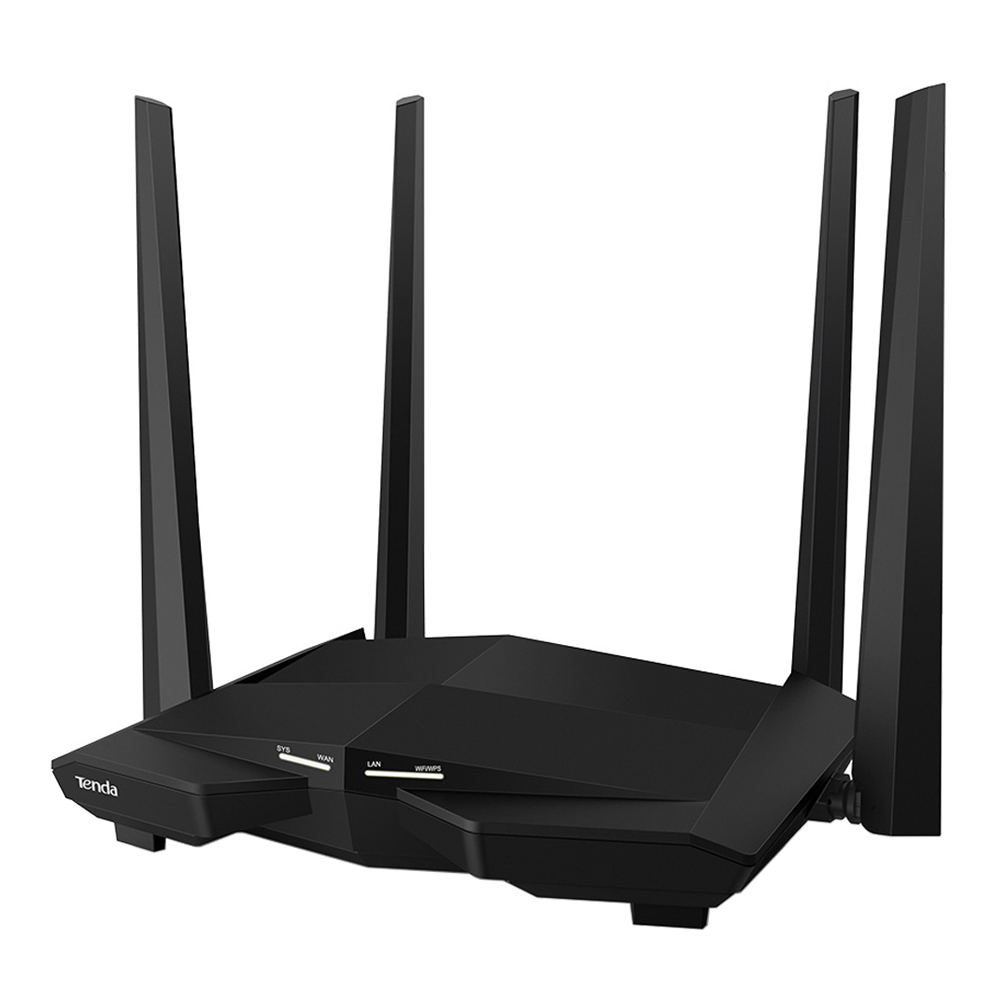

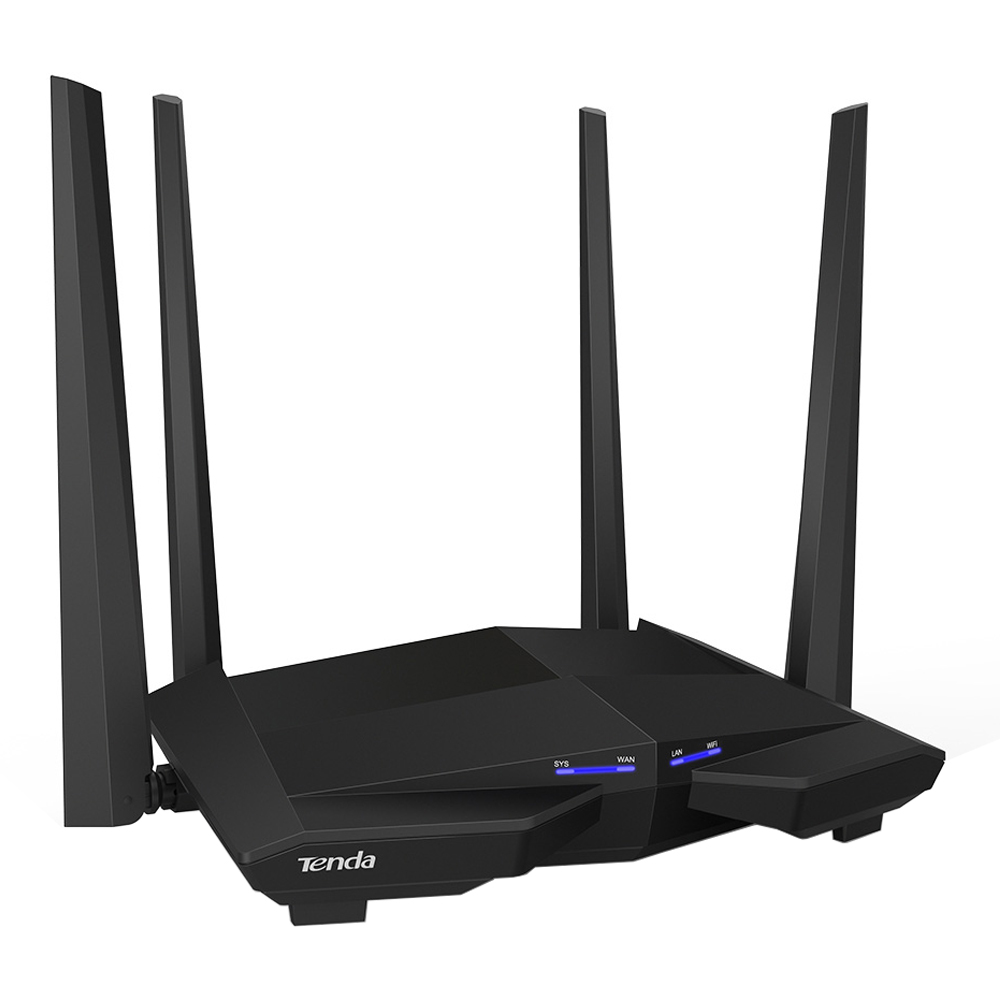

ROUTER (เราเตอร์) TENDA AC1200 GIGABIT WIFI ROUTER 4 x 5 DBI (AC10U)

Standard&Protocol: IEEE 802.3, IEEE 802.3u

Interfaces: 1*GE WAN Port；3*GE LAN Ports；1*USB 2.0

Antenna: 4*5dBi External Dual Band Antennas

Button: 1*Reset/WPS button

Power:

Input: 100-240V—50/60Hz
Output: DC 12V==2A

Dimension:

Package Box: 390*198*70mm（L*W*H)
Device: 220*141.5*49mm（L*W*H)

LED Indicator: 1*WAN、1*LAN、1*Wi-Fi/WPS、1*SYS

Wireless Standard:

IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz

Data Rate:

5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

Frequency: Simultaneous dual band 2.4 & 5GHz

Transmission Power:

CE:
<20dBm （2.4G）
<23dBm （5G）
FCC:<30dBm

Basic Features:

MU-MIMO
SSID Broadcast and Hide
Beamforming
Signal Power Adjustment

Wireless Security:

WPA-PSK, WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS Fast Encryption

Internet Connection Type:

Dynamic IP/Static IP/PPPoE
Connection Type Auto Detection
Broadband Account and Password Migration

Operating Mode:

Router/AP/Universal Repeater/WISP

DHCP Server:

DHCP Server and Client
DHCP Client List
DHCP Address Reservation

Virtual Server:

UPnP
DMZ Host
Port Forwarding

Security:

Local Management
Remote Management
Tenda APP

Firewall:

Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through

DDNS: DynDns, NO-IP, Oray.com, 3322.org, 88ip

VPN:

PPTP Client
PPTP Server
L2TP Client

Special Features:

Smart Wi-Fi Schedule
Smart Power Saving
Smart LED On/Off

Others:

FTP/Samba
Bandwidth Control
MAC Address Filter
IP and MAC Address Binding
IPTV
Black/White List
MAC Clone
Static Routing
System Log
Network Time
Backup/Restore Settings
System Upgrade Online

Temperature:

Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.

Humidity:

Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings: Default Access: tendawifi.com or //192.168.0.1

Certification: CE, FCC, RoHS, BSMI, NCC, EAC, IC

EIRP Power (Max)

Package Contents:

AC1200 Smart Dual-Band Gigabit WiFi Router
Power Supply
Ethernet Cable
Quick Installation Guide
