| Processor |
Intel® Core™ i5-1335U, 10C (2P + 8E) / 12T, P-core 1.3 / 4.6GHz, E-core 0.9 / 3.4GHz, 12MB
|
| Graphics |
Integrated Intel® Iris® Xe Graphics
|
| Chipset |
Intel® SoC Platform
|
| Memory |
8GB Soldered DDR4-3200 + 8GB SO-DIMM DDR4-3200
|
| Memory Slots |
One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
|
| Max Memory |
Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200
|
| Storage |
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0
|
| Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB
|
| Storage Slot |
Two M.2 slots • One M.2 2242 PCIe® 3.0 x4 slot • One M.2 2242 PCIe 4.0 x4 slot
|
| Card Reader |
No card reader
|
| Optical |
None
|
| Audio Chip |
High Definition (HD) Audio, Synaptic® CX11880 codec
|
| Speakers |
Stereo speakers, 2W x2, Dolby Atmos®
|
| Camera |
FHD 1080p with Privacy Shutter
|
| Microphone |
2x, Array
|
| Battery |
Integrated 47Wh
|
| Power Adapter |
65W USB-C® (3-pin)
|
| DESIGN |
| Display |
16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC
|
| Touchscreen |
None
|
| Keyboard |
Non-backlit, Thai
|
| Case Color |
Graphite Black
|
| Case Material |
Aluminium (Top), PC-ABS (Bottom)
|
| Dimensions (WxDxH)
|
356.1 x 247.7 x 19.85 mm (14.02 x 9.75 x 0.78 inches)
|
| Weight |
Starting at 1.77 kg (3.90 lbs)
|
| SOFTWARE |
| Operating System |
Windows® 11 Pro, English
|
| Bundled Software |
None
|
| CONNECTIVITY |
| Ethernet |
100/1000M (RJ-45)
|
| WLAN + Bluetooth |
Intel® Wi-Fi® 6E AX211, 11ax 2x2 + BT5.1
|
| WWAN |
None
|
| SIM Card |
None
|
| NFC |
None
|

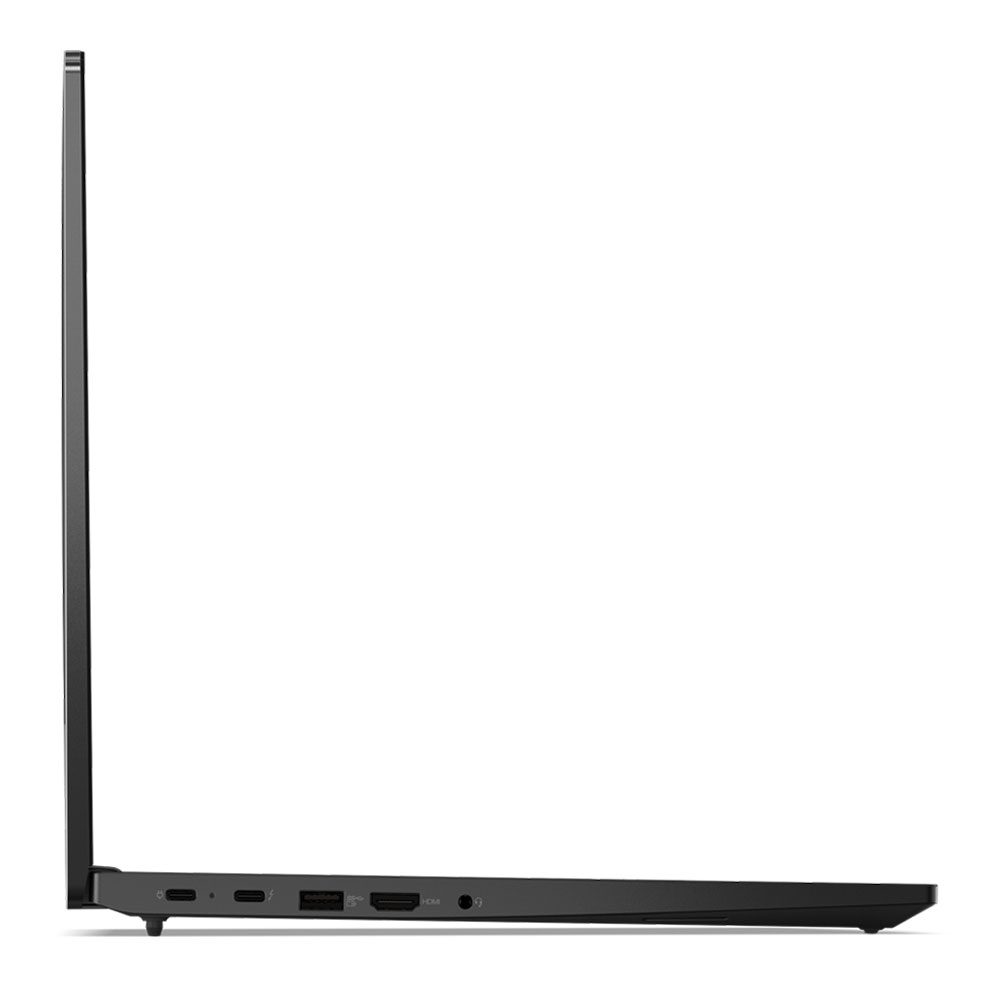

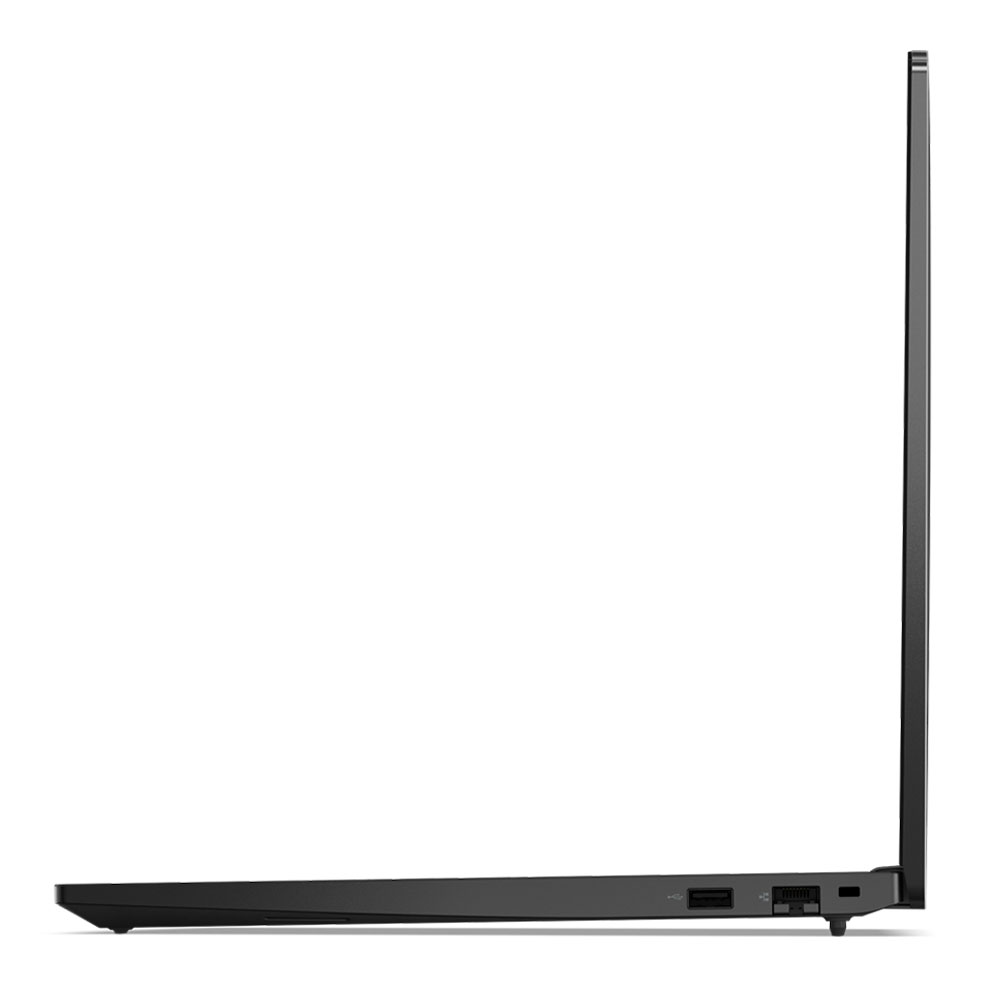

| Standard Ports |
- 1x USB 2.0
- 1x USB 3.2 Gen 1 (Always On)
- 1x USB-C® 3.2 Gen 2 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
|
| Docking |
|
| SECURITY & PRIVACY |
| Smart Card Reader |
None
|
| Security Chip |
Discrete TPM 2.0 Enabled
|
| Fingerprint Reader |
None
|
| Physical Locks |
Kensington® Nano Security Slot™, 2.5 x 6 mm
|
| Other Security |
Camera privacy shutter
|
| MANAGEABILITY |
| System Management |
Non-vPro®
|
| CERTIFICATIONS |
| Green Certifications
|
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered
- ErP Lot 6
- ErP Lot 26
- FSC certified package
- RoHS compliant
- TCO Certified 9.0
|
| Other Certifications |
TÜV Rheinland® Low Blue Light (Software Solution)
|
| Mil-Spec Test |
MIL-STD-810H military test passed
|
