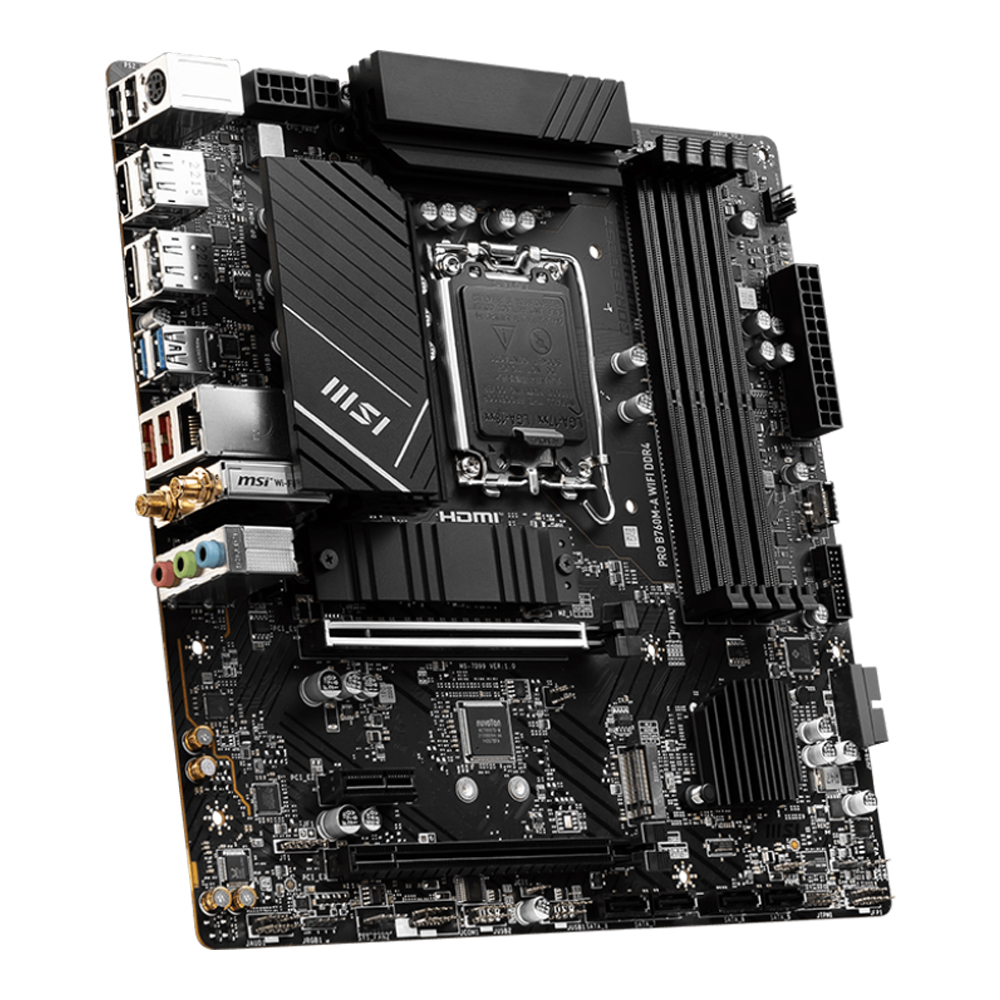

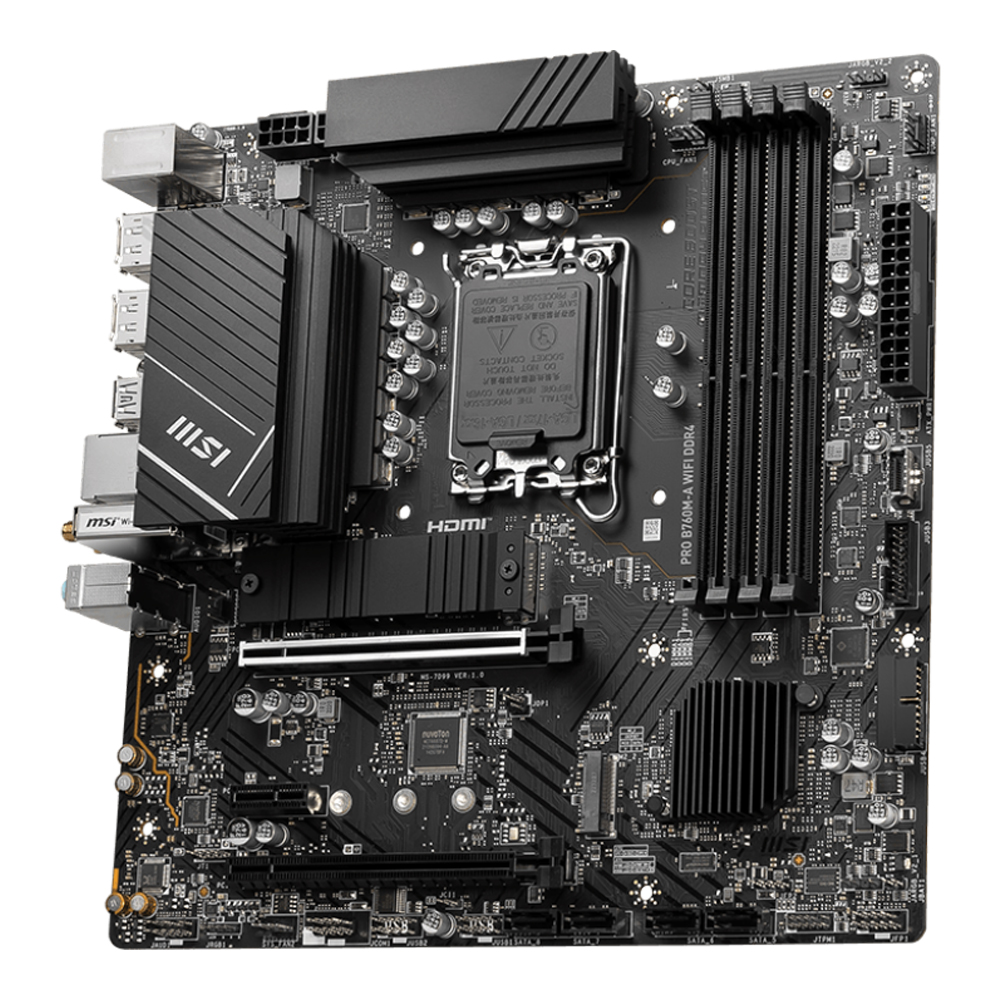

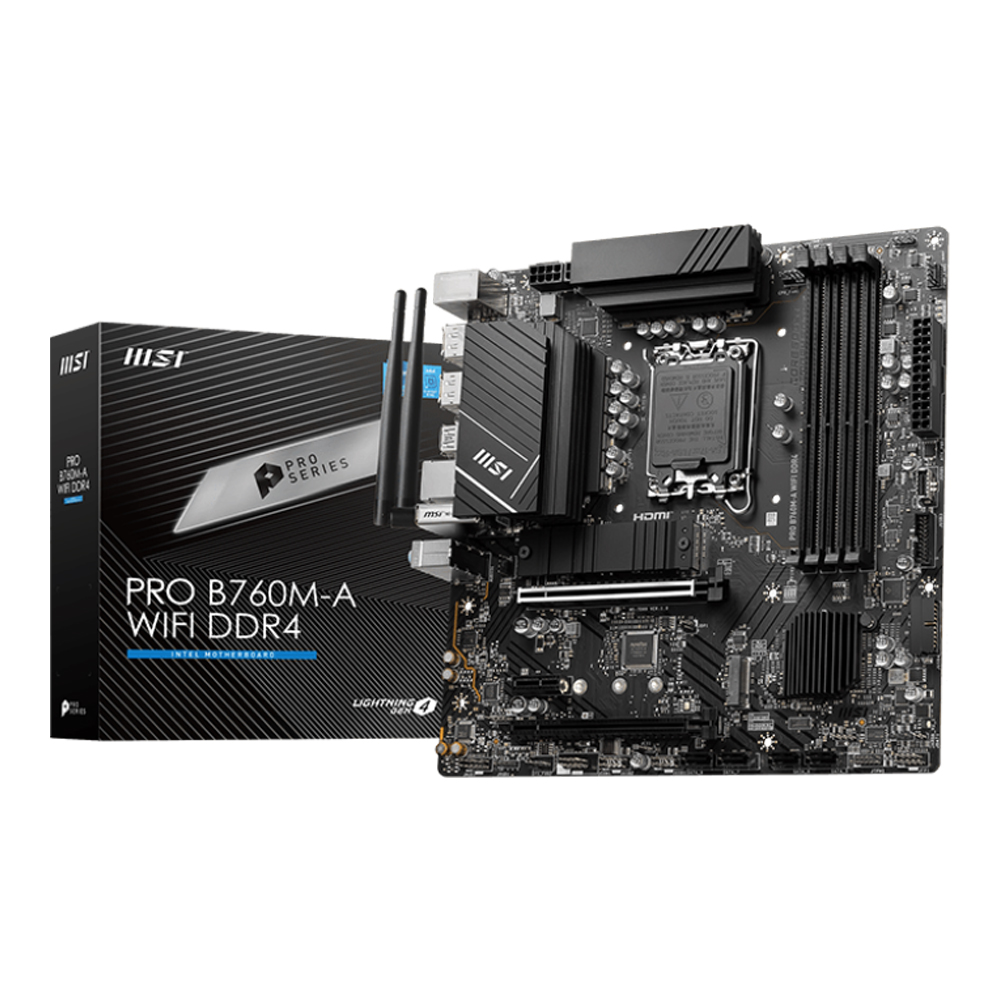

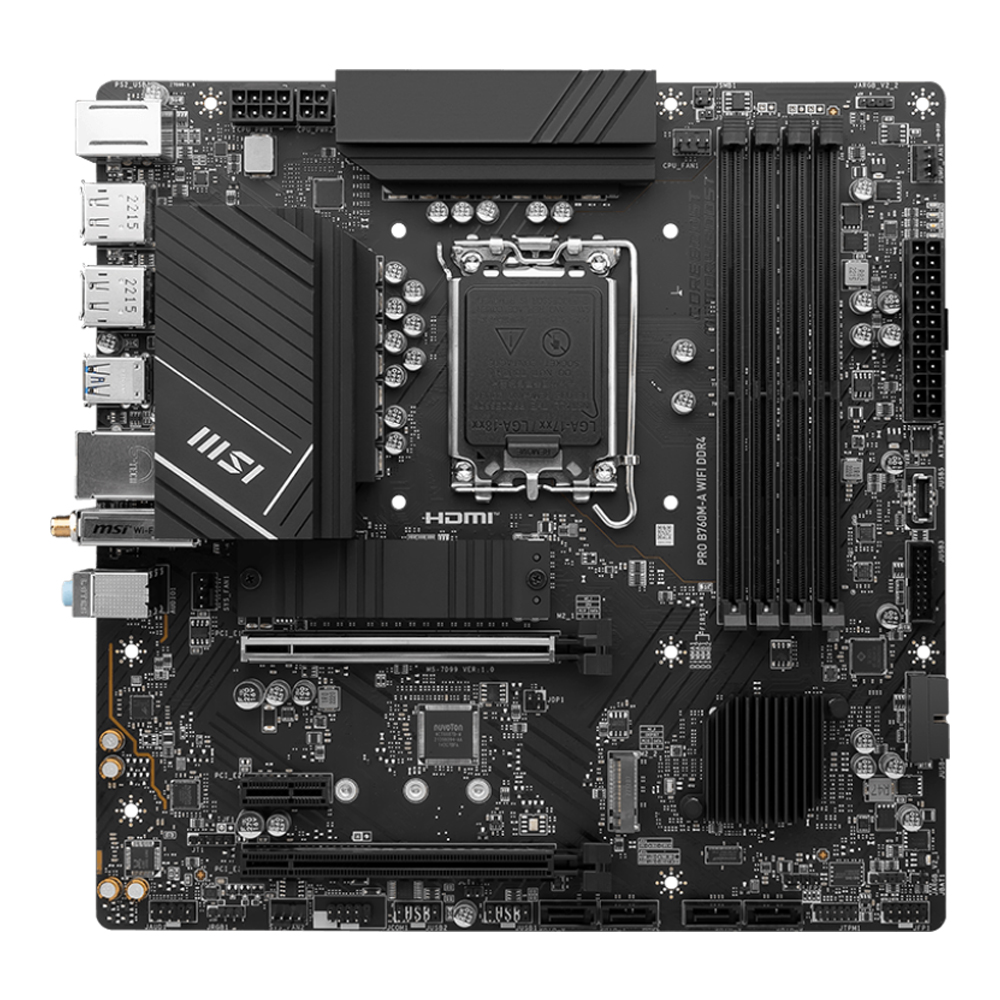

MAINBOARD (เมนบอร์ด) MSI PRO B760M-A WIFI DDR4 (INTEL SOCKET 1700 DDR4 MICRO-ATX)

MAINBOARD (เมนบอร์ด) MSI PRO B760M-A WIFI DDR4 (INTEL SOCKET 1700 DDR4 MICRO-ATX)

รายละเอียดสินค้าโดยย่อ

• Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors
• Intel B760
• DDR4 4 x DIMM
• 2 x DP
• 2 x HDMI
• 2 x M.2 slots
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 Type-C header (front)
• 2 x USB 3.2 Gen 2 Type-A (rear)
• 2 x USB 3.2 Gen 1 Type-A (rear)
• 2.5G LAN
• Wi-Fi 6E
• Bluetooth 5.3

MAINBOARD (เมนบอร์ด) MSI PRO B760M-A WIFI DDR4 (INTEL SOCKET 1700 DDR4 MICRO-ATX)
(#1007000067)

รับประกัน 3 - y
ราคา
บาท
3,890
ส่งฟรี
-
+
ซื้อเลย

0.65%
3 ด.
เดือนละ 1,321.95 .-
0.69%
3 ด.
เดือนละ 1,323.51 .-
0.79%
3 ด.
เดือนละ 1,327.40 .-
คุณสมบัติ
model
Brand
MSI
Model
PRO B760M-A WIFI DDR4
CPU
Socket
1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh)
Wattage
150W
Chipset
Intel B760
Series
Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
memory
Slot
4
Memory Type
DDR4
Max. Capacity
128 GB
Speed
2133 , 2400 , 2666 , 2933 , 3200 , 3200 (OC) , 3333 (OC) , 3400 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3800 (OC) , 4000 (OC) , 4200 (OC) , 4266 (OC) , 4400 (OC) , 4600 (OC) , 4800 (OC) , 5000 (OC) , 5066 (OC) , 5200 (OC) , 5333 (OC)
Graphic & Audio
Graphic
Requires a CPU with Integrated Graphics.
—
• 2 x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz*
• 2 x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
—
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2
2 x M.2 slots (Key M)
—
• M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
—
• M2_2 slot (From B760 chipset)
- Supports up to PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices Port
expansion slots
Details
• 2 x PCIe x16 slots
- PCI_E1 slot (From CPU) Supports up to PCIe 4.0 x16
- PCI_E3 slot (From B760 chipset) Supports up to PCIe 4.0 x4
—
• 1 x PCIe x1 slot (From B760 chipset)
- PCI_E2 supports up to PCIe 3.0 x1
Slot
1 x PCIe 3.0 x1 Slot , 2 x PCIe 4.0 x16 Slot
network
LAN
Realtek RTL8125BG 2.5G LAN
LAN Speed
100/1000/2500 Mbps
Wireless
Intel Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth 5.3**, FIPS, FISMA
—
* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.

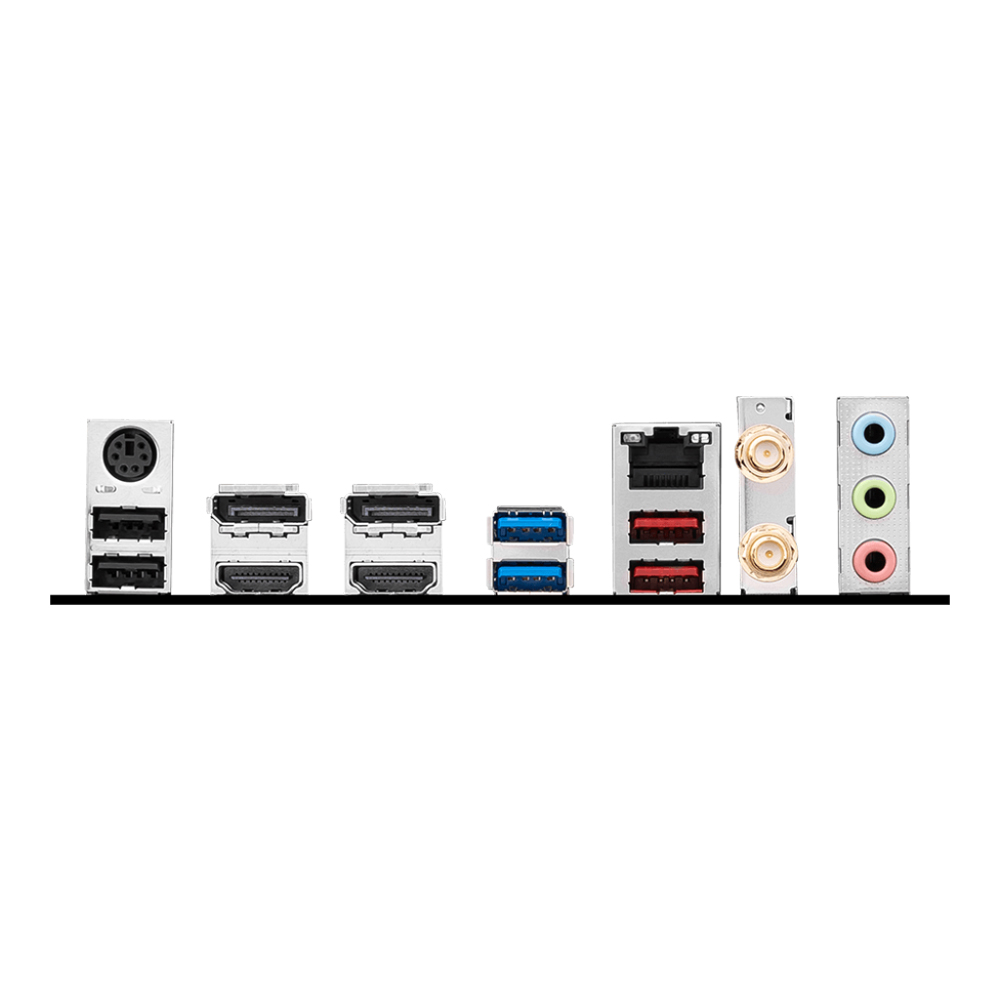

Back Panel I/O Ports
USB 2.0
2 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
2 x USB 3.2 Gen 1 5Gbps Type-A
2 x USB 3.2 Gen 2 10Gbps Type-A Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
2 Port
DisplayPort
2 Port
Audio
3 Port
PS/2
1 (Keyboard/Mouse combo) Port
Additional

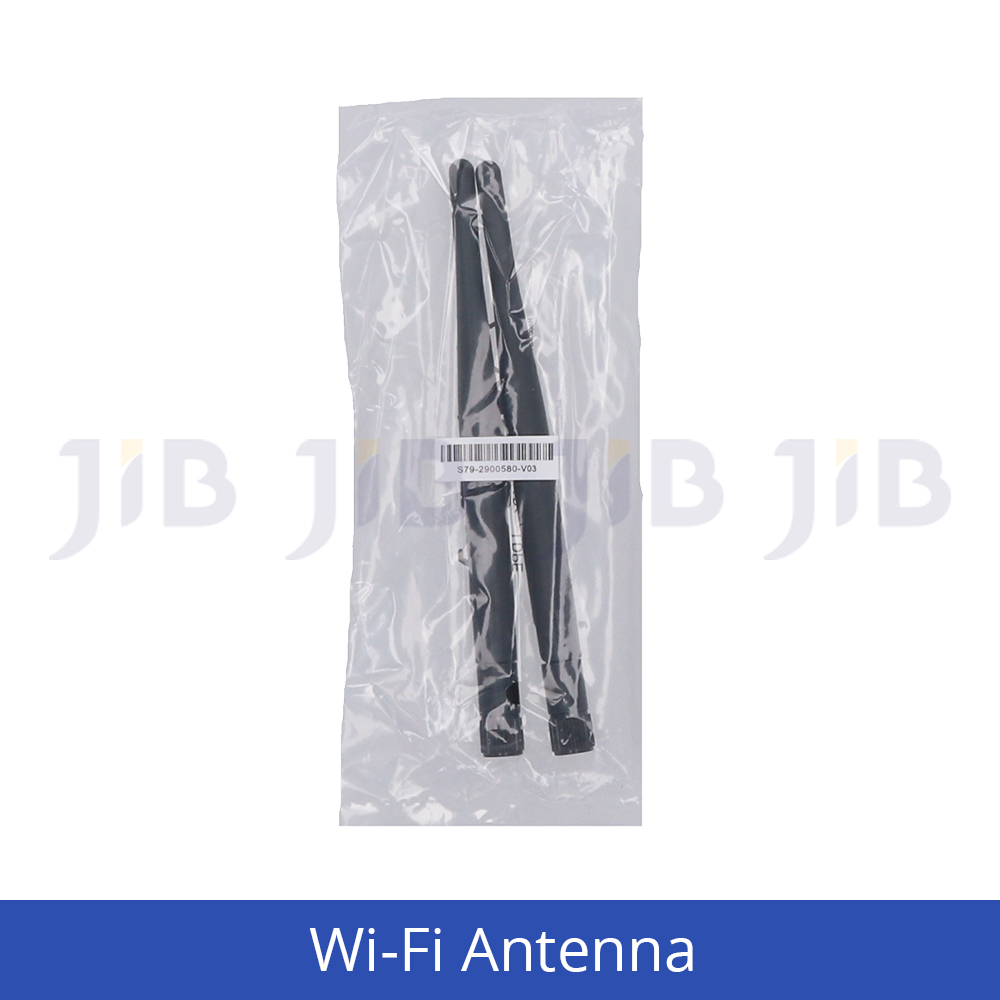

2 x Wi-Fi Antenna connectors
LAN
1 Port
Form Factor
Form Factor
Micro-ATX
Power Connector
24 + 4 + 8 Pin
Dimension
24.4 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

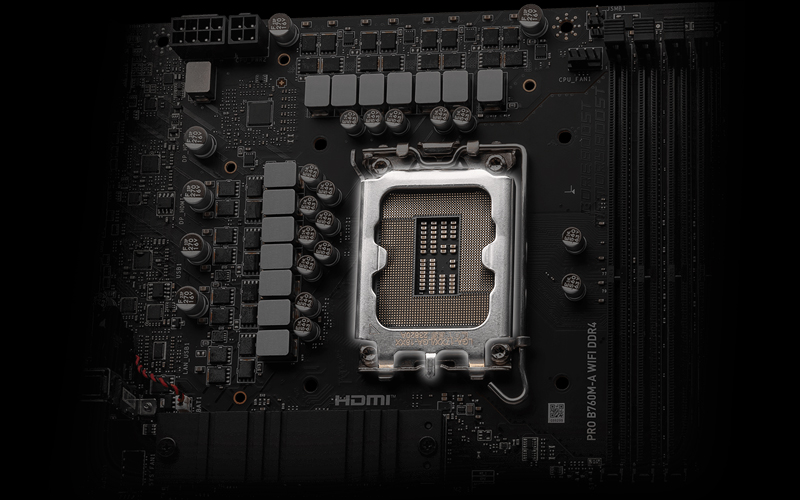

12+1+1 POWER DESIGN

Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.

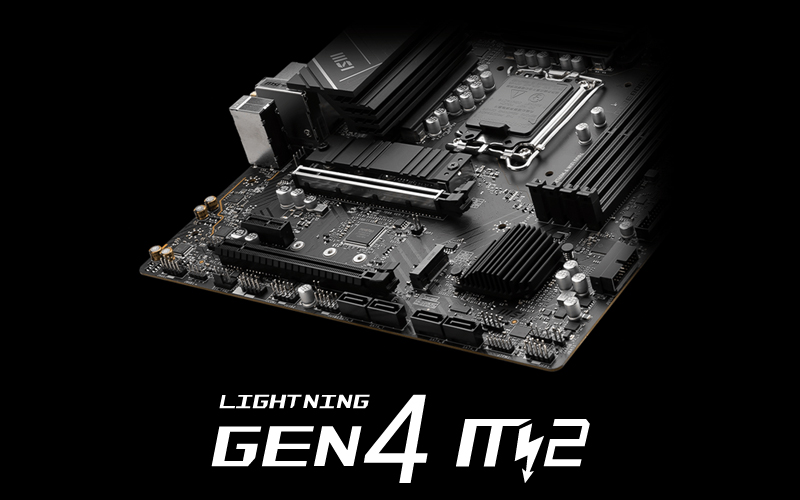

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

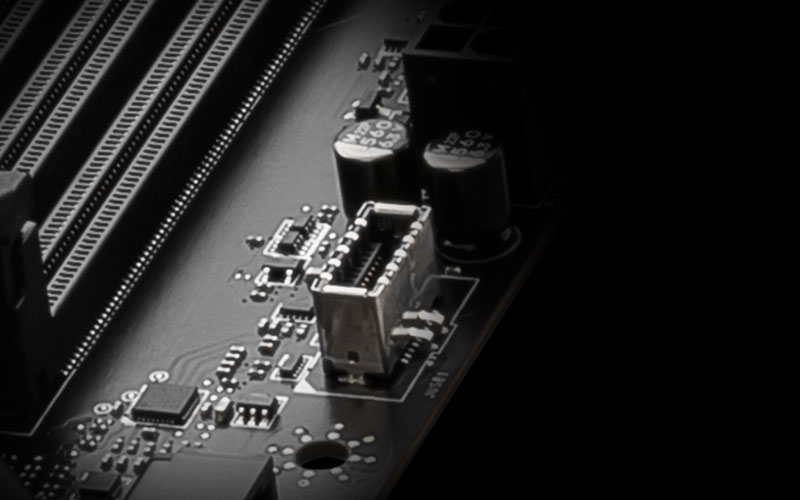

USB FRONT TYPE-C

MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

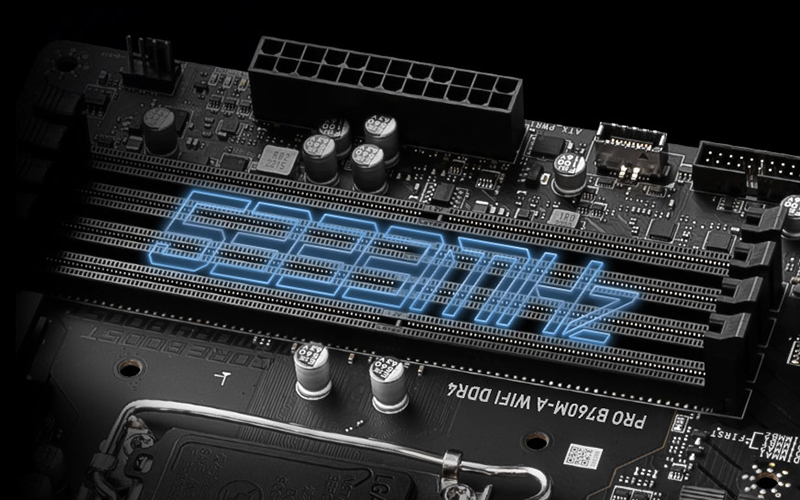

DDR4 MEMORY SOLUTION

With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.

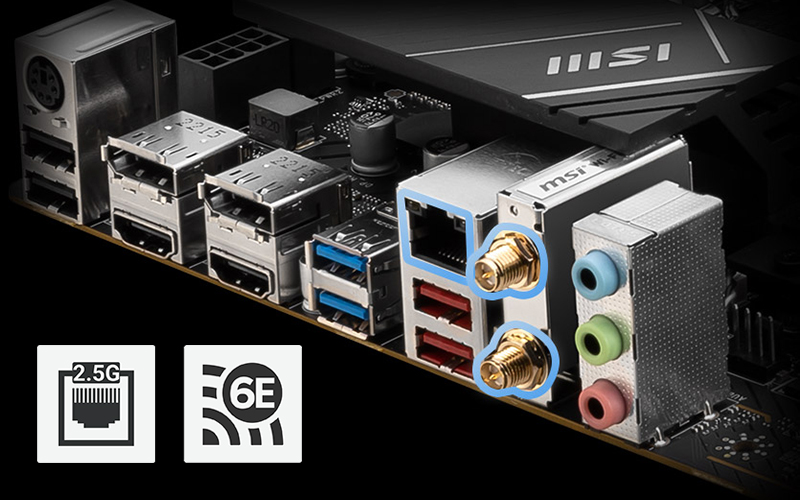

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E

• Bluetooth 5.3

• 2.5G LAN



Source : MSI PRO B760M-A WIFI DDR4
