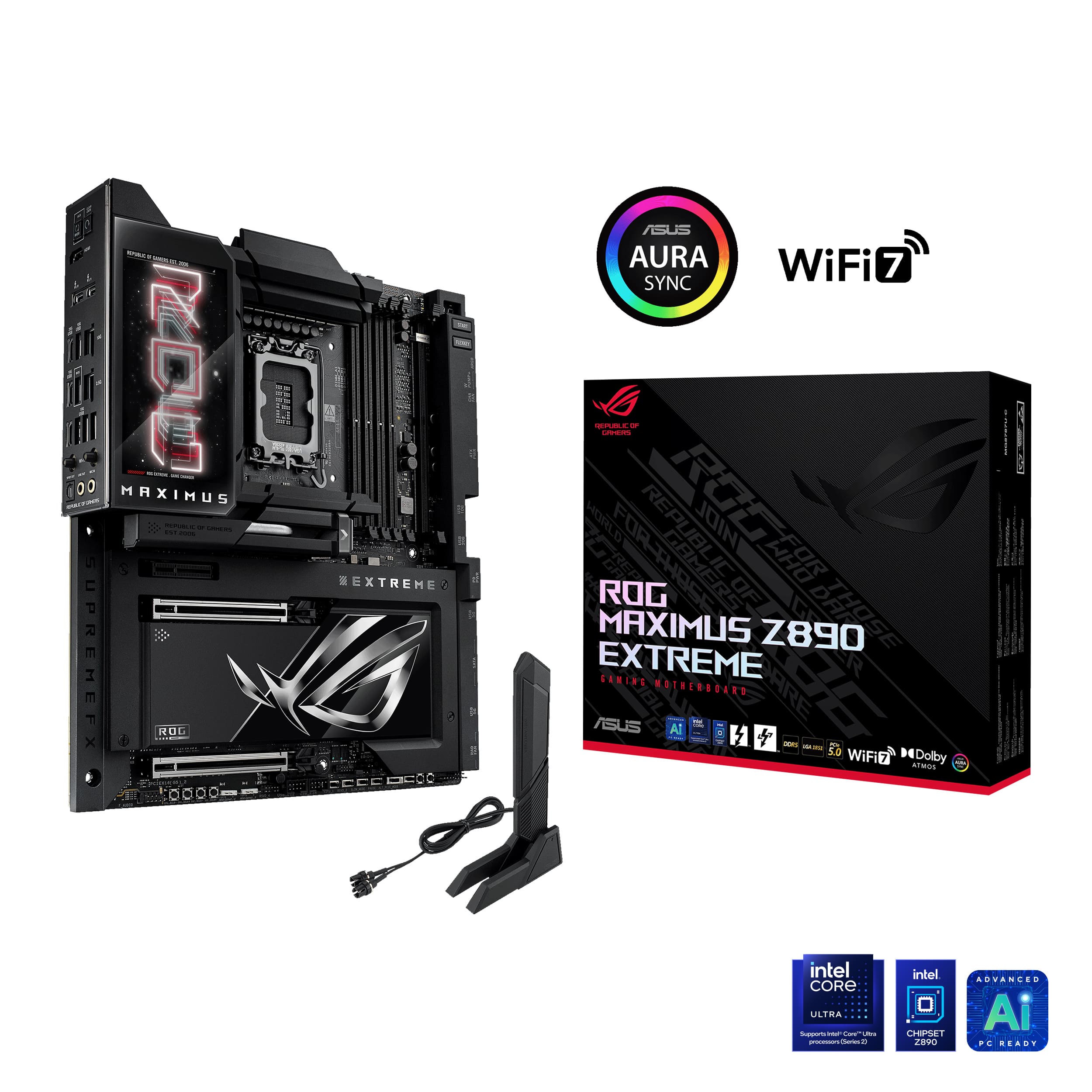

MAINBOARD (เมนบอร์ด) ASUS ROG MAXIMUS Z890 EXTREME (INTEL SOCKET 1851 DDR5 E-ATX)

ASUS AI INTELLIGENCE

•

  AI OVERCLOCKING

  Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

•

  AI COOLING II

  Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI NETWORKING II

•

  Traffic Monitor

  Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.

  *The "Channel Switch" function requires pairing with an ASUS router. If not paired with an ASUS router, the channel change process can be performed in the "Router IP" section of the Traffic Monitor.

•

  Fast Check

  Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength​

•

  Direction Finder

  Armoury Crate's Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.

  *The Direction Finder is only compatible with connections in the 5GHz and 6GHz bands

•

  GameFirst

  GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA^® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions. To provide a better user's experience, GameFirst is now integrated into Armoury Crate.

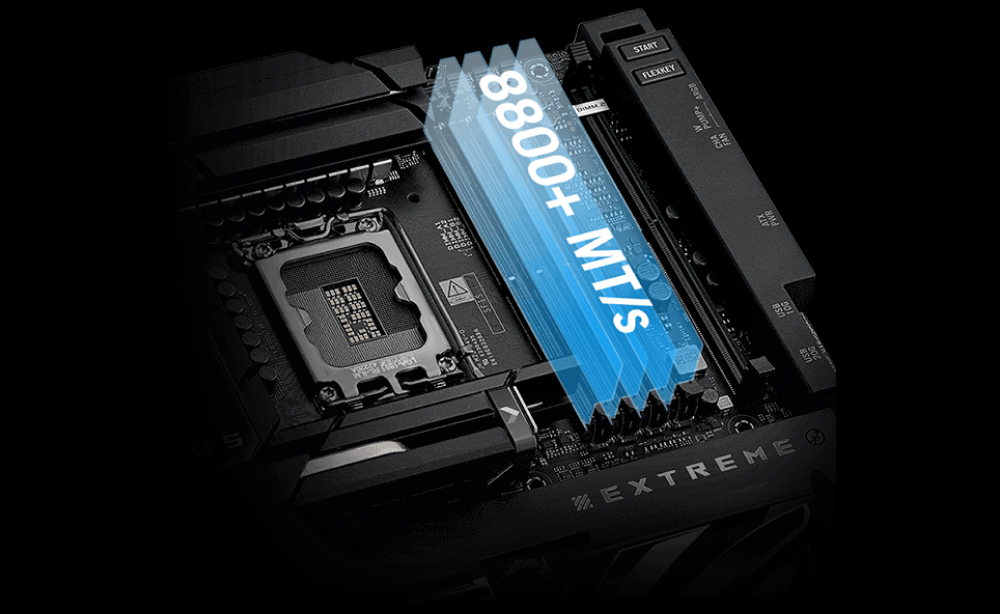

DDR5 DOMINATION

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the ROG Maximus Z890 Extreme, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

•

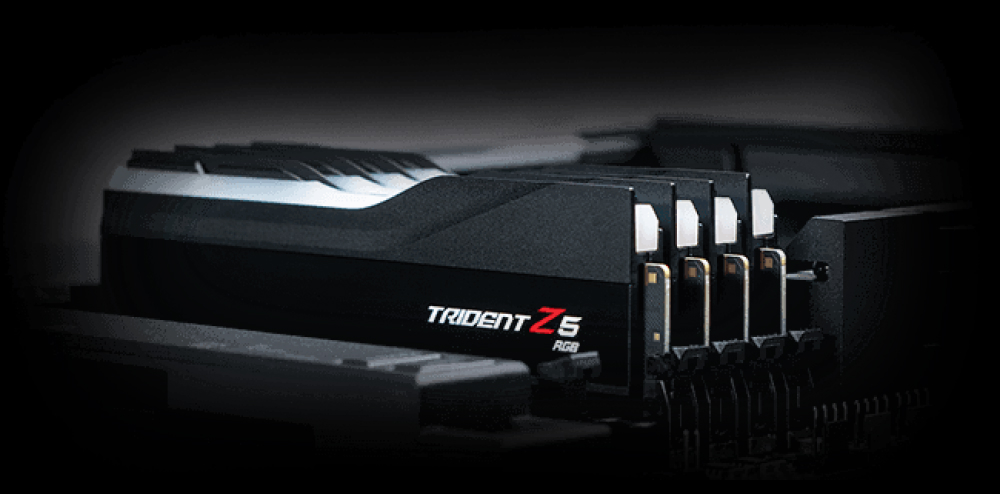

  DIMM FIT

  DIMM Fit offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

•

  NITROPATH DRAM TECHNOLOGY

  NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.

ROG ULTIMATE POWER SOLUTION

• 8 + 8-pin ProCool II power connectors

  Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.

• 24+1+2+2 Power Stages

  The VRM features 24+1+2+2 power stages, each rated to handle up to 110 amps.

• 10K black metallic capacitors

  Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

• MicroFine alloy chokes

  Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

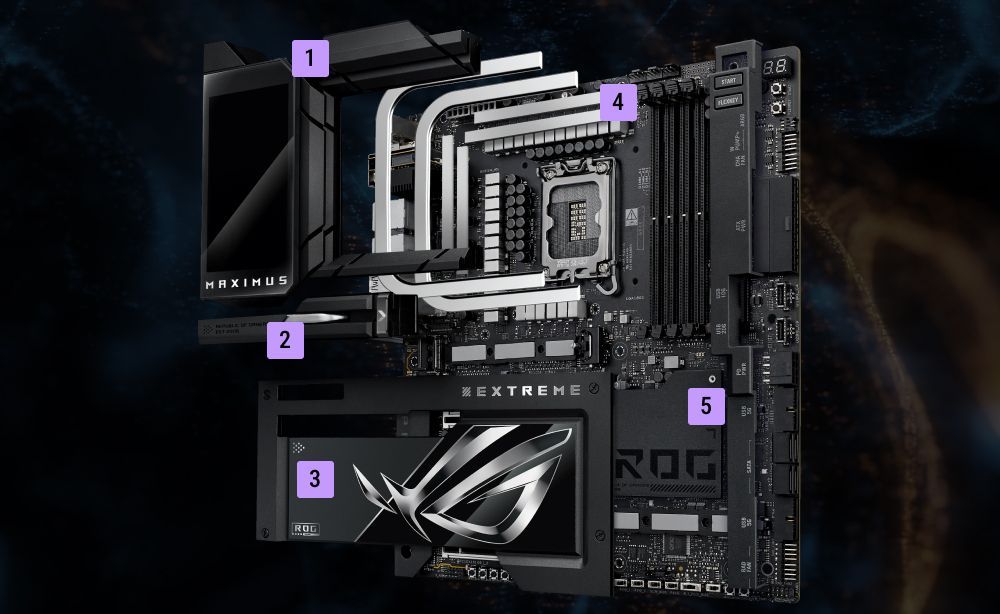

COOLER BY DESIGN

• VRM and aluminum I/O heatsink

  A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

• 3D VC M.2 Heatsink

  The 3D vapor chamber M.2 heatsink offers a larger heat dissipation area, connected to extended heat pipes through a temperature equalization plate to form a vacuum chamber, significantly improving cooling for PCIe 5.0 M.2 SSDs.

• M.2 heatsinks and backplates

  Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four of six onboard M.2 slots have dedicated backplates for additional heat dissipation.

• High-conductivity thermal pads

  Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.

• Chipset heatsink

  A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

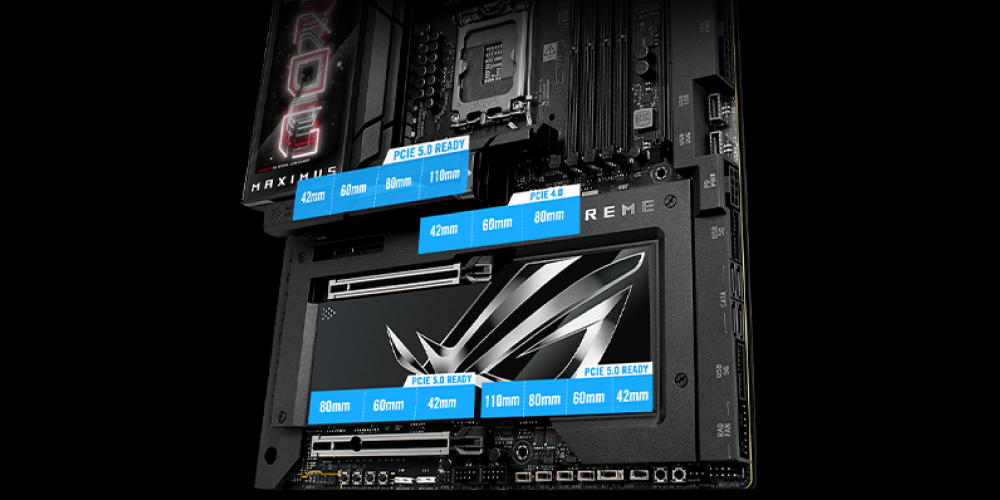

M.2 SLOTS WITH ROG M.2 POWERBOOST

FOUR ONBOARD M.2 SLOTS

The ROG Maximus Z890 Extreme features four onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the other offer still-impressive 8 GB/s over PCIe 4.0 interfaces.

ROG M.2 POWERBOOST

ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting all four onboard M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads , while also helping to ensure the rated lifespan of an M.2 SSD.

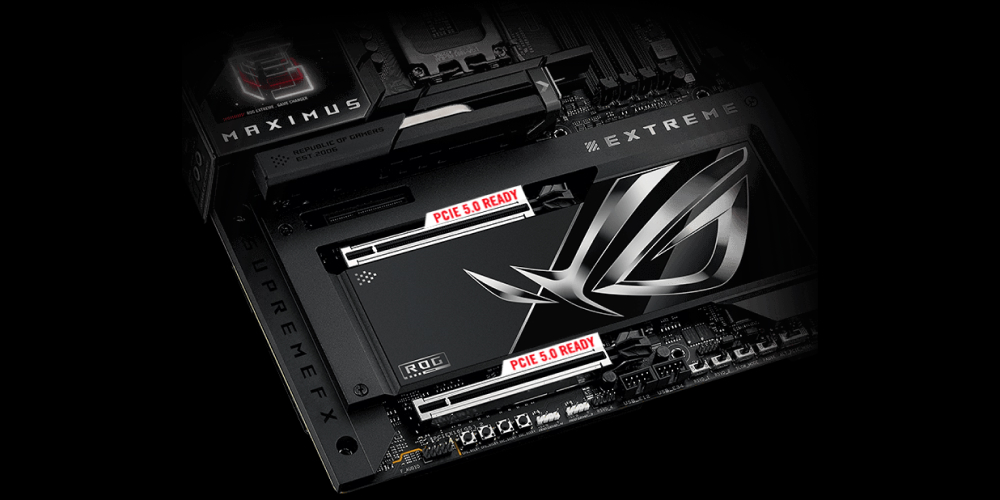

PCIE 5.0 EXPANSION SLOT

Both of the x16 expansion slots offer incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and both slots can be released easily with PCIe Slot Q-Release Slim.

NETWORKING

• WIFI 7

  The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.


  * WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320MHz channels in the 6GHz band may be unavailable in some regions/countries due to regulatory restrictions.
  ** Specifications vary by model.

• 10Gb ETHERNET

  Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Marvell^® Aqtion 10Gbps Ethernet.

• 2.5Gb ETHERNET

  Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel^® 2.5Gbps Ethernet.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

Wireless Signal Reception Improvement

Versus previous-generation antenna

• Up to +6%



  6 GHz

• Up to +18%



  5/2.4 GHz

EZ PC DIY

•

  PCIE^® SLOT Q-RELEASE SLIM

  Simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot.

•

  M.2 Q-RELEASE

  The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws.

•

  NEW M.2 Q-LATCH

  Tool-free installation or removal of M.2 SSDs with just one press.

•

  M.2 Q-SLIDE

  The new sliding M.2 latch design supports sizes 2242, 2260, and 2280 for easy device installation.

•

  Q-ANTENNA

  With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
