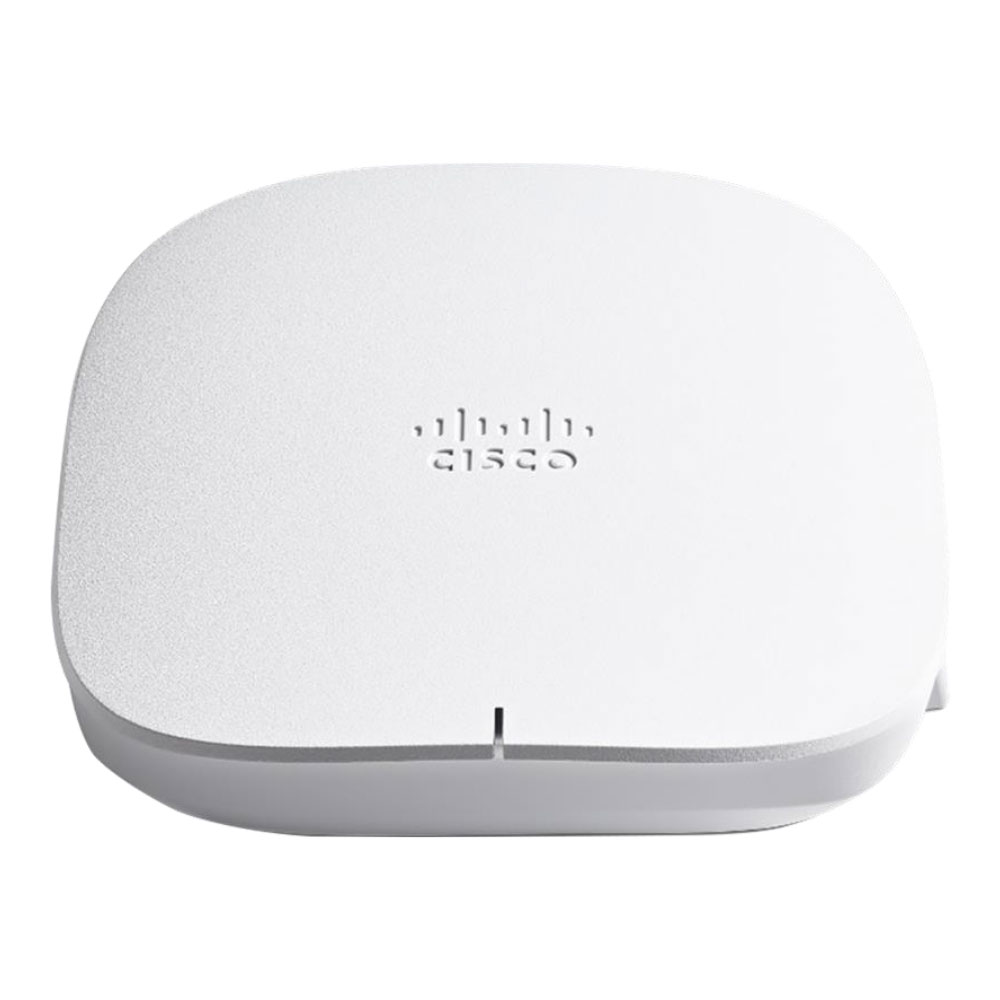

ACCESS POINT (แอคเซสพอยต์) CISCO BUSINESS 150AX ACCESS POINT (CBW150AX-S-UK)

Authentication and security

• Wi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication
• 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
• Segmentation via VLANs (up to 16)
• 802.11r and 802.11i
• Guest network can also authenticate against a Social Login account: Google and Facebook

Maximum clients

• Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system

Maximum # of Access Points

• 50
• Recommended up to 25

Max # of Mesh Extenders

• Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops

Management Compatibility

• A group of access points and mesh extenders comprised of only CBW150AX and CBW151AXM devices may be managed as a single entity.
• CBW150AX access points must not be installed on the same management network and CBW140AC or CBW240AC access points.
• CBW150AX and CBW151AXM devices are supported by Cisco Business Dashboard versions 2.4.1 and higher.

802.11ax

• 2x2 downlink MU-MIMO with two spatial streams
• Uplink/downlink OFDMA
• TWT
• BSS coloring
• MRC
• 802.11ax beamforming
• 20-, 40-, 80- channels
• PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• 802.11 DFS
• CSD support
• WPA3 support

802.11ac

• 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz
• 20-, 40-, and 80-MHz channels
• Dynamic Frequency Selection (DFS)

Ethernet ports

• Authentication with 802.1X or MAC filtered
• Dynamic VLAN or per port
• Traffic locally switched or tunneled back to Master AP
