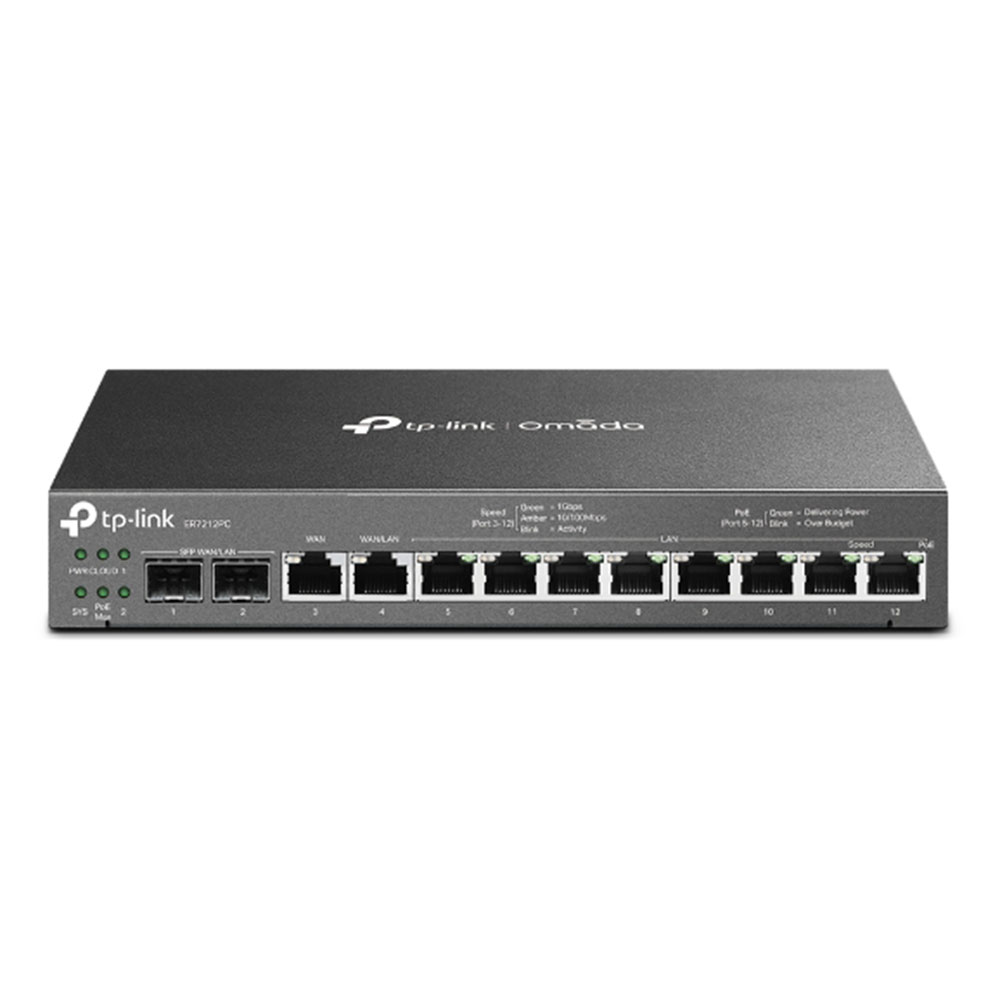

ที่มา : ER7212PC Omada 3-in-1 Gigabit VPN Router
×
รายละเอียดสินค้าโดยย่อ
• 2 Gigabit SFP WAN/LAN ports
ระบุข้อมูลใส่ช่องว่างเพื่อแจ้งเตือนเมื่อมีสินค้าเข้ามา
| HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q |
| • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP | |
| Interface | • 2 Gigabit SFP WAN/LAN ports |
| • 1 Gigabit WAN port | |
| • 1 Gigabit LAN/WAN port | |
| • 8 Gigabit LAN ports | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) |
| EIA/TIA-568 100Ω STP (Max 100 m) | |
| • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) | |
| EIA/TIA-568 100Ω STP (Max 100 m) | |
| • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) | |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 53.5VDC/2.43A Adapter |
| PoE Budget | 8 ports PoE+ output, 110 W PoE Budget |
| Flash | 8Mb Nor + 4 GB EMMC |
| DRAM | 1 GB DDR3 |
| LED | PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall-mount |
| Max Power Consumption | • 133.2W with PoE Max |
| • 13.88W without PoE | |
| PERFORMANCE | |
| Concurrent Session | 24,980 |
| New Sessions /Second | 1,900 |
| NAT (Static IP) | 935.5 Mbps / 942.1 Mbps |
| NAT(DHCP) | 940.2 Mbps / 941.7 Mbps |
| NAT(PPPoE) | 913.1 Mbps / 935.2 Mbps |
| NAT (L2TP) | 545.0 Mbps / 912.7 Mbps |
| NAT (PPTP) | 523.0 Mbps / 912.8 Mbps |
| IPsec VPN Throughput (AES256) | 168.5 Mbps |
| IPsec VPN Throughput | AES256: 168.5 Mbps |
| OpenVPN | 34 Mbps |
| L2TP VPN Throughput | • Unencrypted: 845.3 Mbps |
| • Encrypted: 333.2 Mbps | |
| PPTP VPN Throughput | • Unencrypted: 1012.6 Mbps |
| • Encrypted: 401.4 Mbps | |
| 66 Byte Packet forwarding rate | 154,069 pps / 156,977 pps |
| 1,518 Byte Packet forwarding rate | 81,193 pps / 81,193 pps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP |
| • Dynamic IP | |
| • PPPoE | |
| • PPTP | |
| • L2TP | |
| MAC Clone | Modify WAN MAC Address |
| DHCP | • DHCP Server |
| • DHCP Address Reservation | |
| • Multi-IP Interfaces | |
| • Multi-Net DHCP | |
| IPv6 | support |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing |
| • Policy Routing | |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance |
| • Application Optimized Routing | |
| • Link Backup | |
| • Online Detection | |
| NAT | • Multi-Net NAT |
| • Virtual Server | |
| • NAT-DMZ | |
| • FTP/H.323/SIP/IPSec/PPTP ALG | |
| • UPnP | |
| Session Limit | IP-based Session Limit |
| VPN | |
| SSL VPN | - |
| IPsec VPN | • 20 IPSec VPN Tunnels |
| • LAN-to-LAN, Client-to-LAN | |
| • Main, Aggressive Negotiation Mode | |
| • AES128, AES192, AES256 Encryption Algorithm | |
| • IKE v1/v2 | |
| • SHA1, SHA2 Authentication Algorithm | |
| • NAT Traversal (NAT-T) | |
| • Dead Peer Detection (DPD) | |
| • Perfect Forward Secrecy (PFS) | |
| PPTP VPN | • PPTP VPN Server |
| • PPTP VPN Client (10) | |
| • 16 Tunnels | |
| • PPTP with MPPE Encryption | |
| L2TP VPN | • L2TP VPN Server |
| • L2TP VPN Client (10) | |
| • 16 Tunnels | |
| • L2TP over IPSec | |
| OpenVPN | • OpenVPN Server |
| • OpenVPN Client (10)§ | |
| • 16 OpenVPN Tunnels | |
| SECURITY | |
| Filtering | URL Filtering |
| ARP Inspection | - |
| Attack Defense | • TCP/UDP/ICMP Flood Defense |
| • Block TCP Scan (Stealth FIN/Xmas/Null) | |
| • Block Ping from WAN | |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | • No Authentication |
| • Simple Password | |
| • Hotspot (Local User / Voucher / SMS / Radius) | |
| • External Radius Sever | |
| • External Portal Sever | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| • Omada Cloud-Based Controller | |
| Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP) |
| Maintenance | • Web Management Interface |
| • Remote Management | |
| • Export & Import Configuration | |
| • SNMP v1/v2c/v3 | |
| • Syslog Support | |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery |
| • Intelligent Network Monitoring | |
| • Abnormal Event Warnings | |
| • Unified Configuration | |
| • Reboot Schedule | |
| • Captive Portal Configuration | |
| • Management up to 1 Router, 2 Switches and 10 EAPs | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER7212PC |
| • Power Adapter | |
| • Power Cord | |
| • Quick Installation Guide | |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 |
| • MAC OS, NetWare, UNIX or Linux | |
| Environment | • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) |
| • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) | |
| • Operating Humidity: 10% to 90% non-condensing | |
| • Storage Humidity: 5% to 90% non-condensing | |
