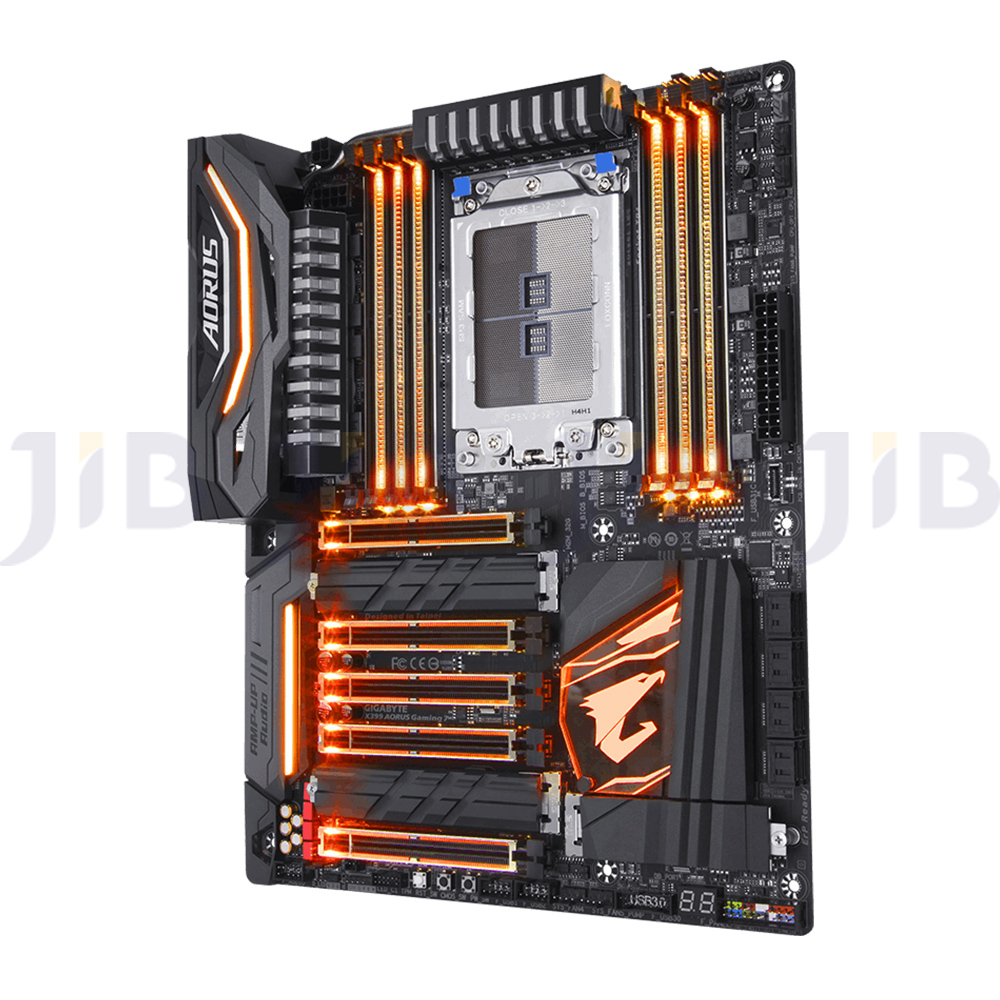

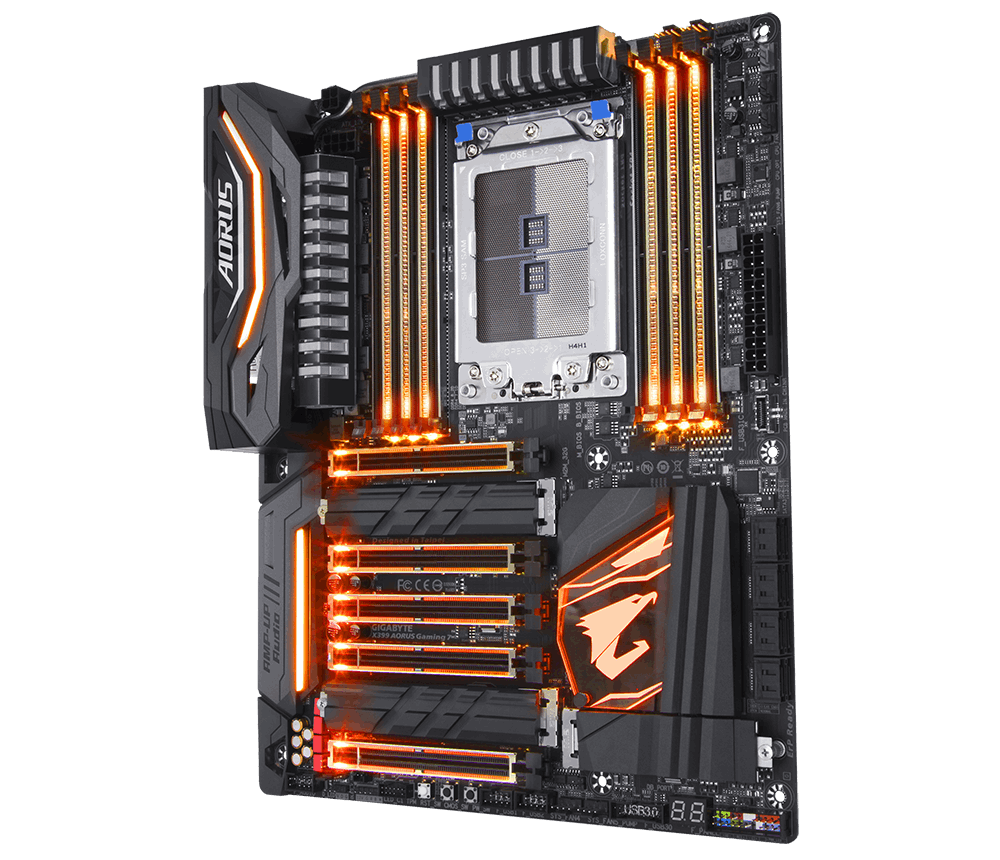

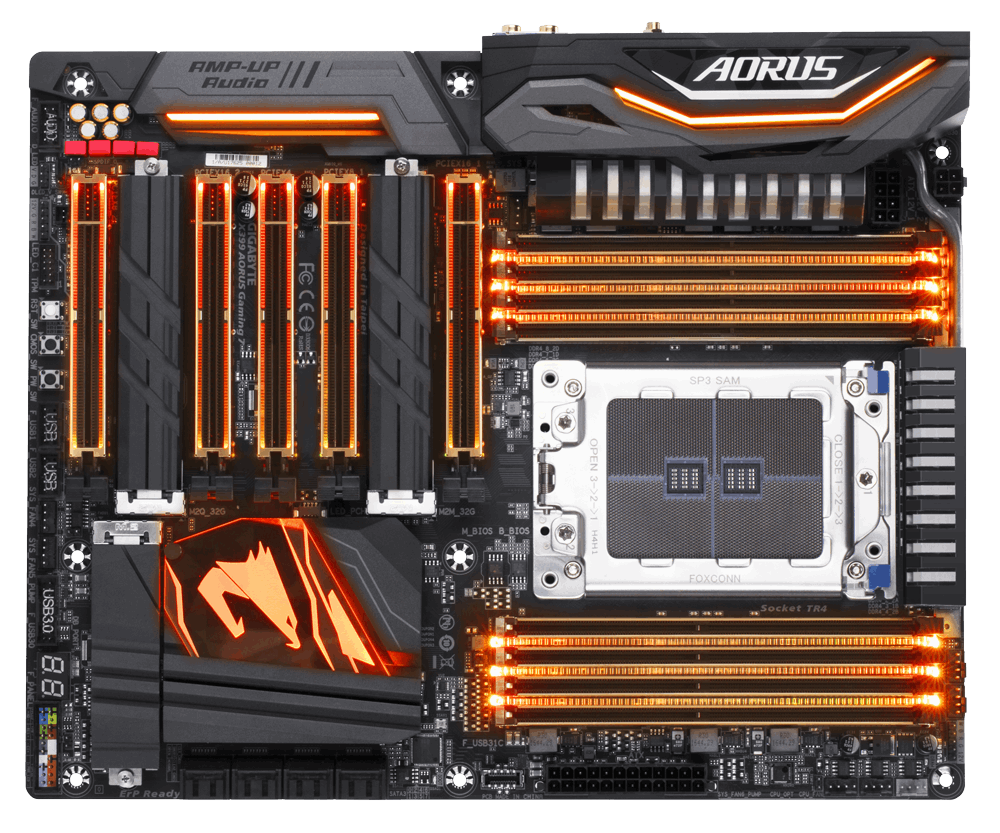

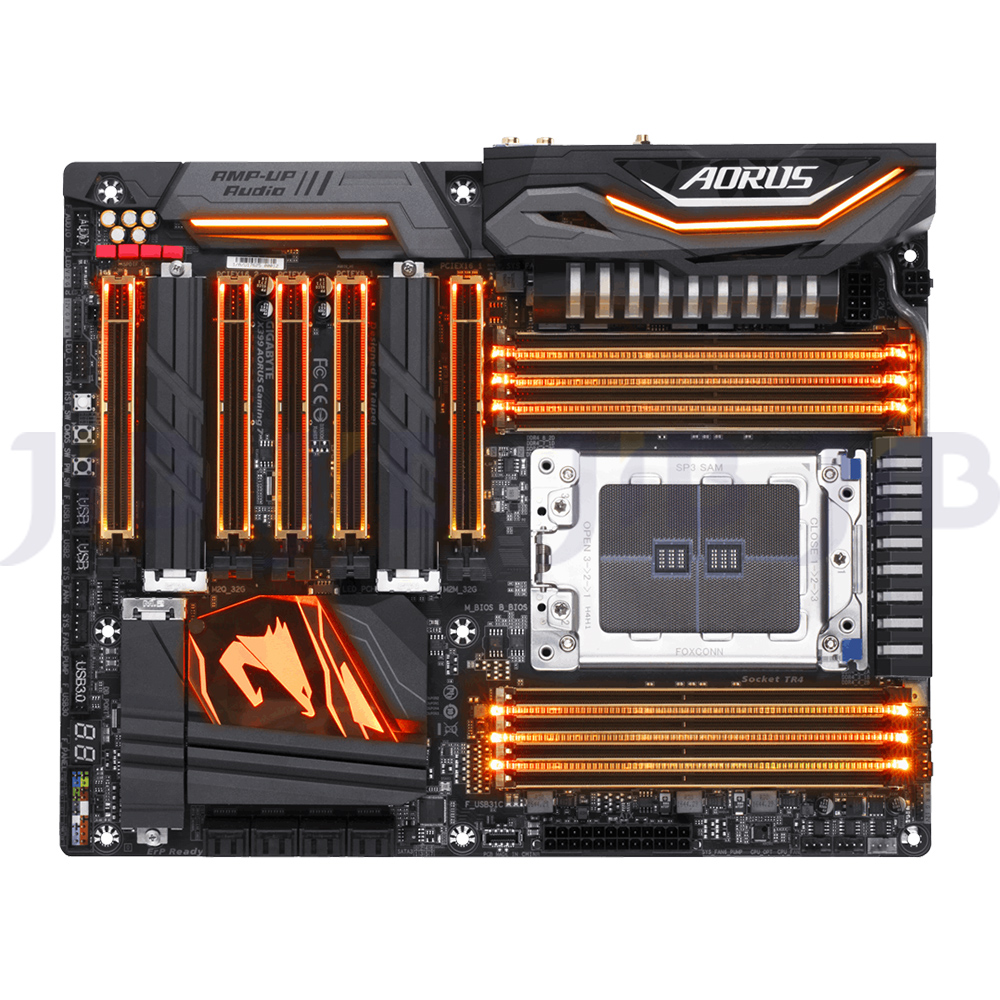

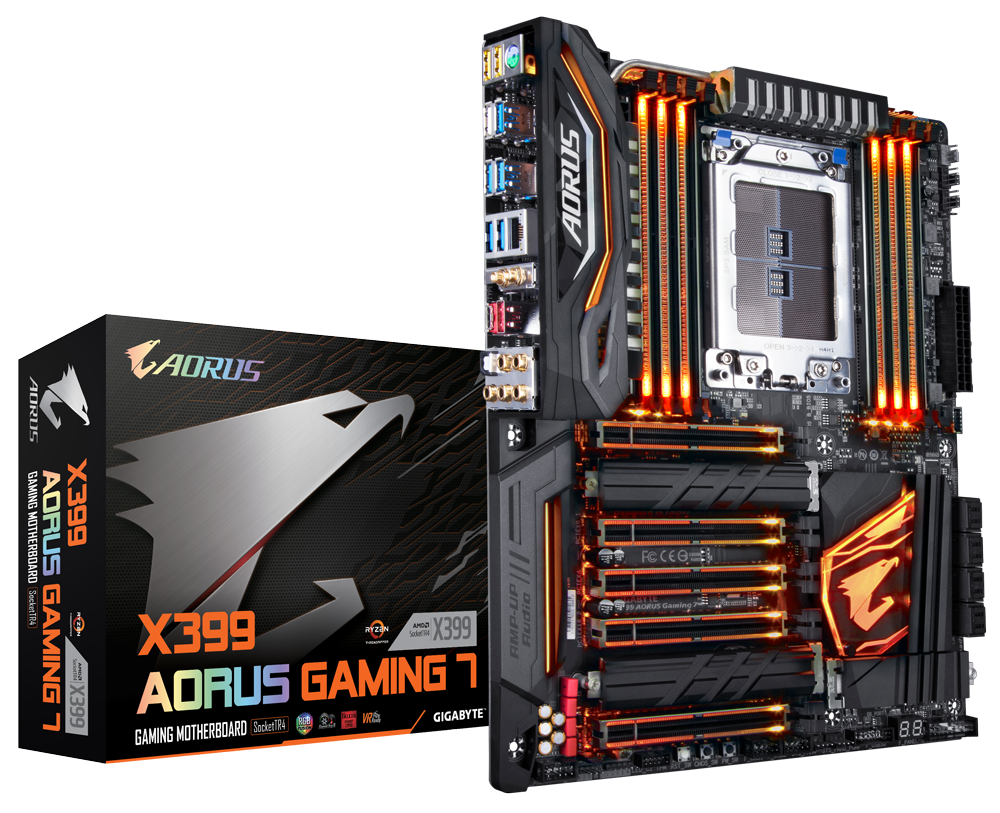

MAINBOARD (เมนบอร์ด) TR4 GIGABYTE AORUS X399 GAMING7

MAINBOARD (เมนบอร์ด) TR4 GIGABYTE AORUS X399 GAMING7

รายละเอียดสินค้าโดยย่อ

SOCKET : TR4<br>
CHIPSET : AMD X399</br>
MEMORY : 8 x DDR4 DIMM

MAINBOARD (เมนบอร์ด) TR4 GIGABYTE AORUS X399 GAMING7
(#3008525207)

รับประกัน 3 - y
ราคา
บาท
13,400
ราคาล่าสุดเมื่อ 2017-10-16
ส่งฟรี
คุณสมบัติ
model
Brand
Aorus
Model
X399 AORUS Gaming 7
CPU
Socket
TR4
Wattage
N/A
Chipset
AMD X399
Series
Ryzen Threadripper
memory
Slot
8
Memory Type
DDR4
Max. Capacity
128 GB
Speed
2133 , 2400 , 2667 , 2800 (OC) , 2933 (OC) , 3200 (OC) , 3333 (OC) , 3466 (OC) , 3600+(OC)
Graphic & Audio
Graphic
AMD Quad-GPU CrossFire, NVIDIA® Quad-GPU SLI
Audio
Realtek ALC1220
2/4/5.1/7.1-channel
Storage
SATA 2
- Port
SATA 3
8 Port
RAID
RAID 0, RAID 1, and RAID 10
M.2
3 Port
expansion slots
Details
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
Slot
2 x PCIe 2.0 x16 Slots , PCI Express x16
network
LAN
E2500 LAN
LAN Speed
10/100/1000 Mbps

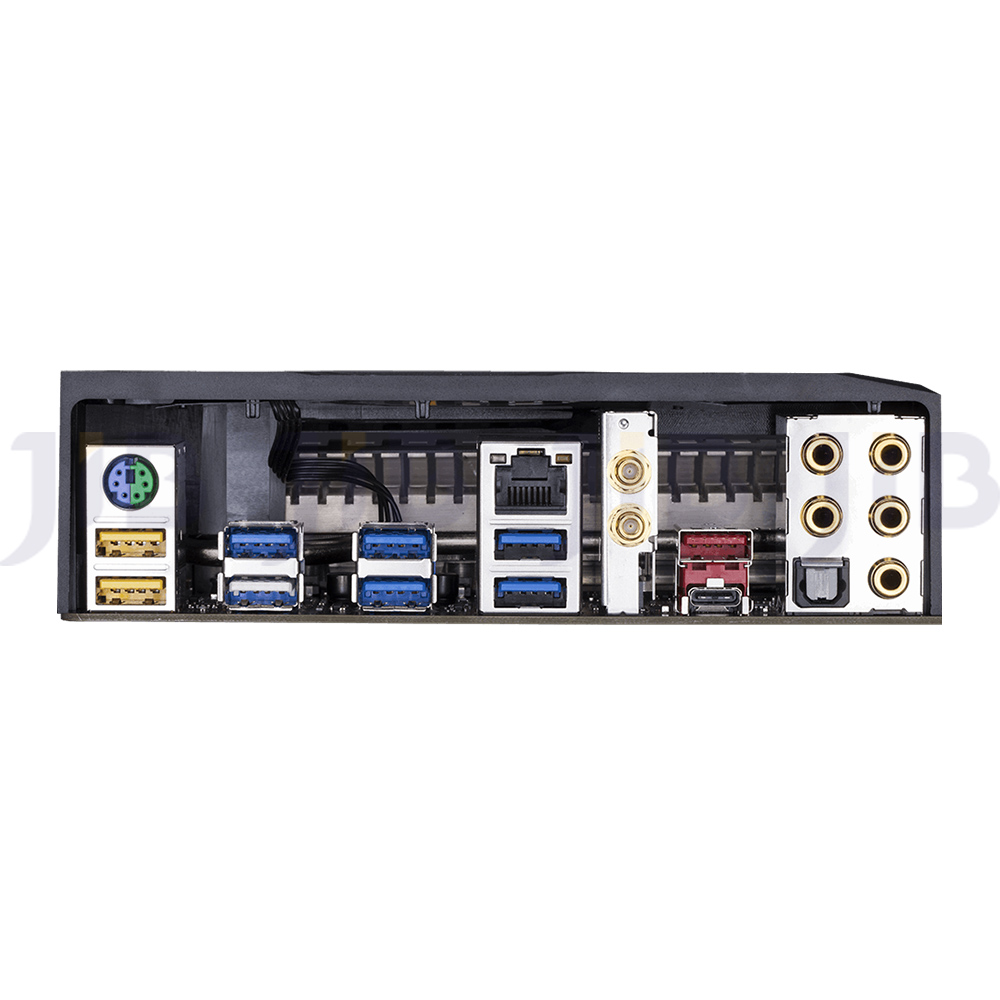

Back Panel I/O Ports
USB 2.0
- Port
USB 3.0
- Port
USB 3.1
8 Port
Serial
- Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
- Port
Audio
5 x audio jacks Port
PS/2
PS/2 keyboard/mouse port
Additional
optical S/PDIF Out connector
Form Factor
Form Factor
ATX
Power Connector
24+8+4 Pin
Dimension
30.5 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

Overwhelming Power.
Indisputable Supremacy.
Unrestrained Potential.

The AORUS X399 enthusiast motherboard with AMD Ryzen™ Threadripper™ Processor. Do everything, do it all at the same time, and do it without sacrificing responsiveness. Render. Stream. Compile. Encode. Work or Play. Real-World Productivity or Virtual Reality Entertainment. The AORUS X399 enthusiast motherboard has the power to overwhelm your most daunting workloads.

RGB Fusion with Digital LEDs

With AORUS X399 Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard and external LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on X399 Series AORUS Motherboards are now upgraded with Digital LED support. With onboard options and external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED strips. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.


Surround Lighting

Multi-light zones are equipped with high brightness RGB LEDs, namely the Memory, Armor, Audio, PCI-Express and Accent LED PCH Overlay. When it’s all set and done, your system will shine like never before.

Supports RGBW & - UV Light Strips

Independently Programmable Onboard Pin Header for RGBW/-UV LED Strips

Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.

When using RGB/UV LED strips, users can give their systems a fluorescent glow with the use of UV reactive liquid, neon braided cables, and acrylic paint for a wicked-looking gaming PC.

No need to worry when choosing light strips as AORUS motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.


Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Hybrid Fan Pin Headers & Temperature Sensors

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

4-Way Graphics with Premium 48 PCIe Lanes Bandwidth

GIGABYTE X399 motherboards feature a unique PCI Express design that utilizes 100% of all 48 lanes from the CPU when in a 4-Way or 3-Way graphics configuration providing the full bandwidth available and provide the best graphics bandwidth possible to the user.


Triple PCIe Gen3 x4 M.2 Direct from CPU

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Gold Plated Solid Power Connectors

Make Good Connection and Significantly Lower the Wires Capacity

AORUS X399 motherboards feature gold plated ATX 24pin & ATX 12V 8pin+4pin power connectors for offering stable and affordable power supply while CPU overloading. Gold provides superior conductivity and signal transmission than standard implementations, also providing far better reliability and stability over time by resistance to metal corrosion caused by frequent use overtime.

อ้างอิงจาก : https://www.gigabyte.com
