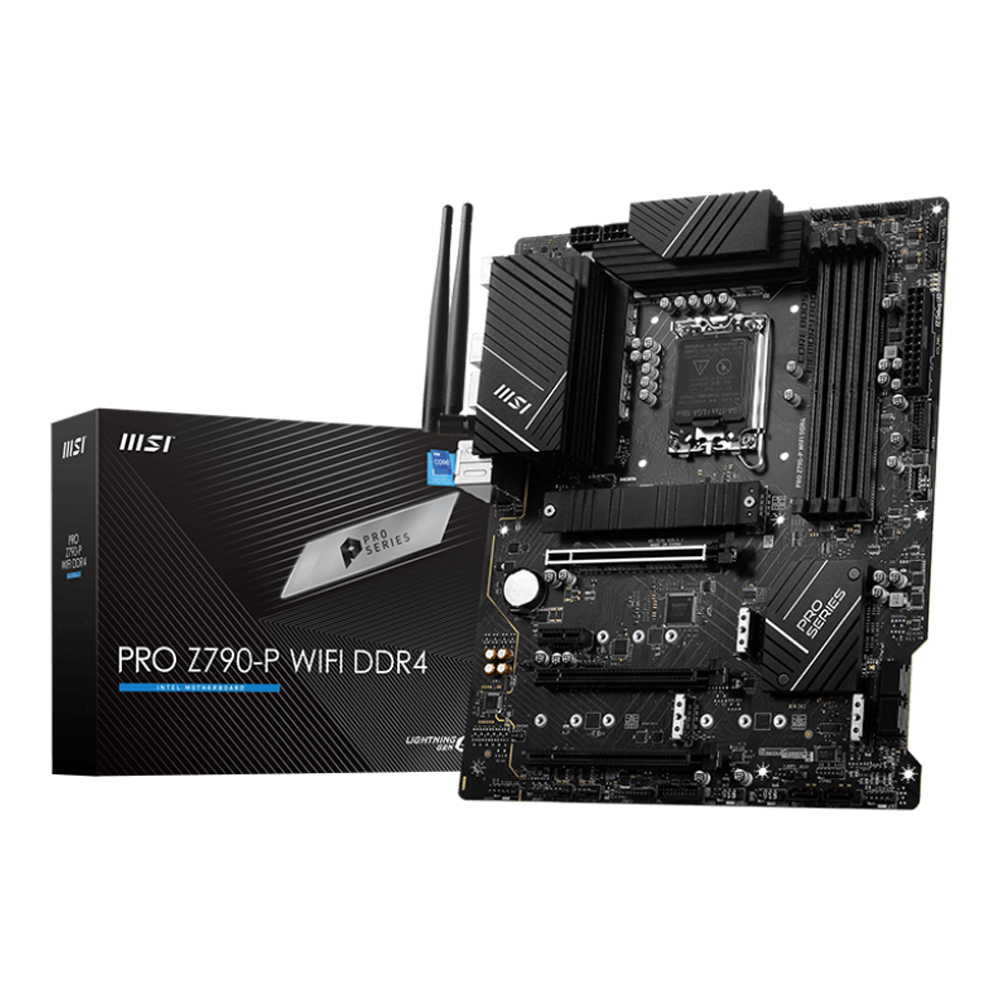

MAINBOARD (เมนบอร์ด) MSI PRO Z790-P WIFI DDR4 (SOCKET LGA 1700) (ATX)

MAINBOARD (เมนบอร์ด) MSI PRO Z790-P WIFI DDR4 (SOCKET LGA 1700) (ATX)

รายละเอียดสินค้าโดยย่อ

• Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors
• DDR4
• PCIe 5.0 slot
• Gen 4 x4 M.2
• USB 3.2 Gen 2x2
• 2.5G LAN with Wi-Fi 6E

MAINBOARD (เมนบอร์ด) MSI PRO Z790-P WIFI DDR4 (SOCKET LGA 1700) (ATX)
(#0201038587)

รับประกัน 3 - y
ราคา
บาท
8,290
ราคาล่าสุดเมื่อ 2026-06-04
ส่งฟรี

ระบุข้อมูลใส่ช่องว่างเพื่อแจ้งเตือนเมื่อมีสินค้าเข้ามา

จำนวนที่ต้องการ

ชิ้น

คุณสมบัติ
model
Brand
MSI
Model
PRO Z790-P WIFI DDR4
CPU
Socket
1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh)
Wattage
150W
Chipset
Intel Z790
Series
Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
memory
Slot
4
Memory Type
DDR4
Max. Capacity
128 GB
Speed
2133 , 2400 , 2666 , 2800 , 2933 , 3000 , 3000 (OC) , 3200 , 3200 (OC) , 3333 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3866 (OC) , 4000 (OC) , 4266 , 4400 , 4533 (OC) , 4600 (OC) , 4800 (OC) , 5000 (OC) , 5066 (OC) , 5200 (OC) , 5333 (OC)
Graphic & Audio
Graphic
Integrated Graphics Processor (Depends on CPU)
Audio
Realtek ALC897
7.1-Channel High Definition Audio
Storage
SATA 2
- Port
SATA 3
6 Port
RAID
RAID 0, 1, 5, 10 for NVMe Storage
RAID 0, 1, 5, 10 for SATA Storage
M.2
4 x M.2 Slot(s)
—
• M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
• M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices Port
expansion slots
Details
No
Slot
1 x PCIe 3.0 x1 Slot , 1 x PCIe 3.0 x16 Slot , 1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot
network
LAN
Intel 2.5Gb Ethernet
LAN Speed
100/1000/2500 Mbps
Wireless
Wi-Fi 6E (802.11ax)
Bluetooth 5.3

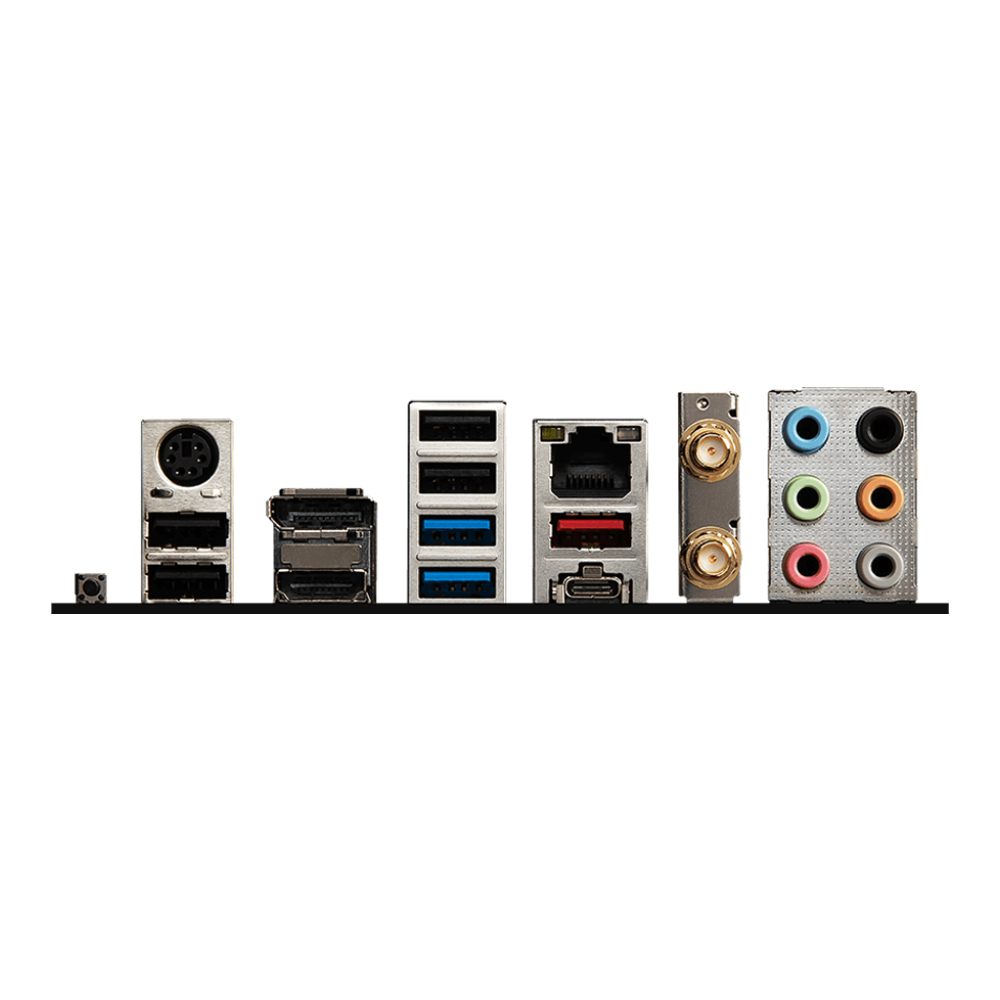

Back Panel I/O Ports
USB 2.0
4 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
2 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2x2 Type-C Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
1 Port
DisplayPort
1 Port
Audio
6 Port
PS/2
1 (Keyboard/Mouse combo) Port
Additional
1 x Flash BIOS button
2 x Wi-Fi Antenna connectors
LAN
1 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 8 + 8 Pin
Dimension
30.5 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

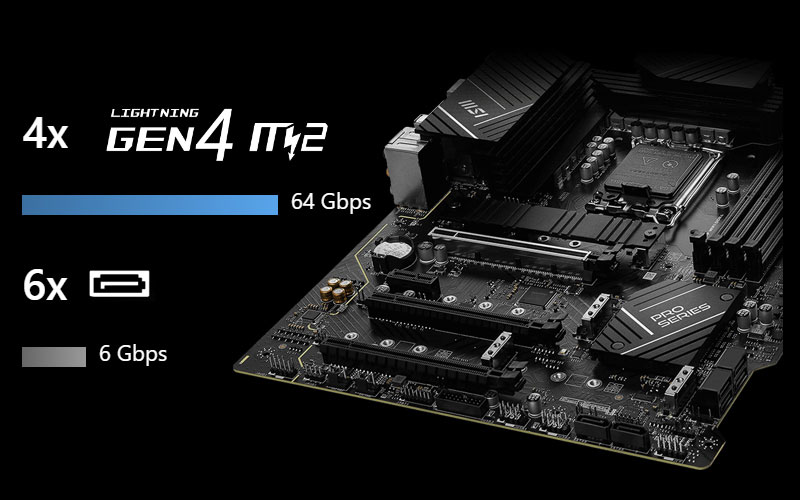

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

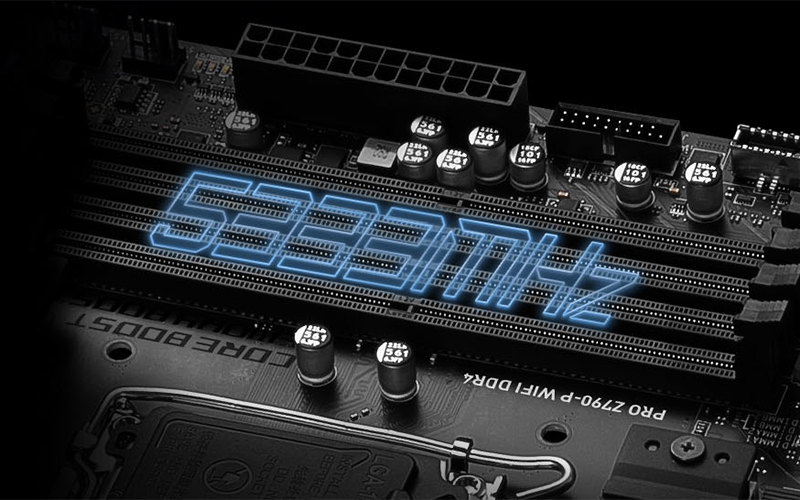

DDR4 MEMORY SOLUTION

With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.

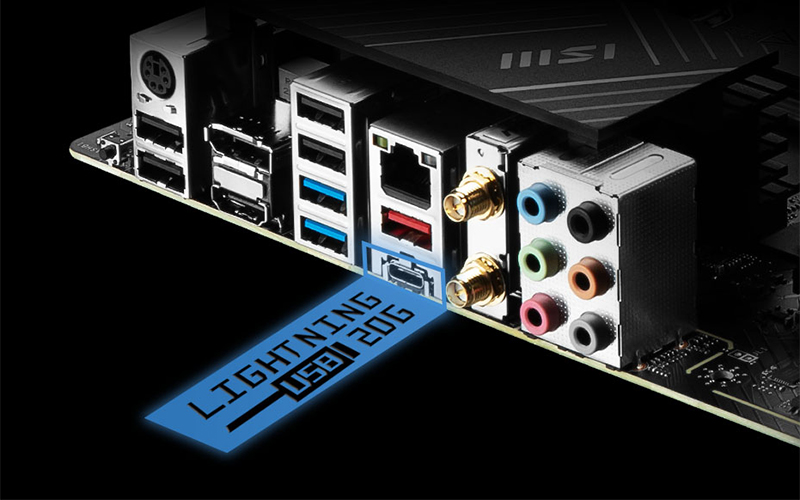

LIGHTNING USB 20G

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G

Using USB 3.2 devices has never been faster! MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

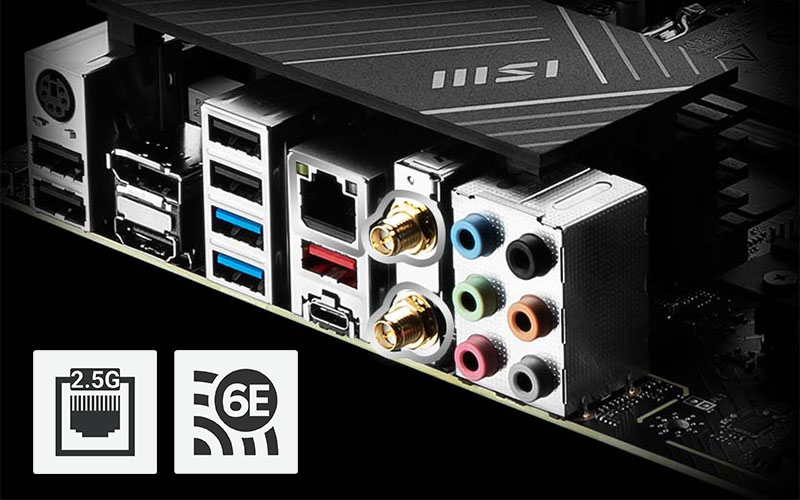

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E
• Bluetooth 5.3
• 2.5G LAN



Source : MSI PRO Z790-P WIFI DDR4
